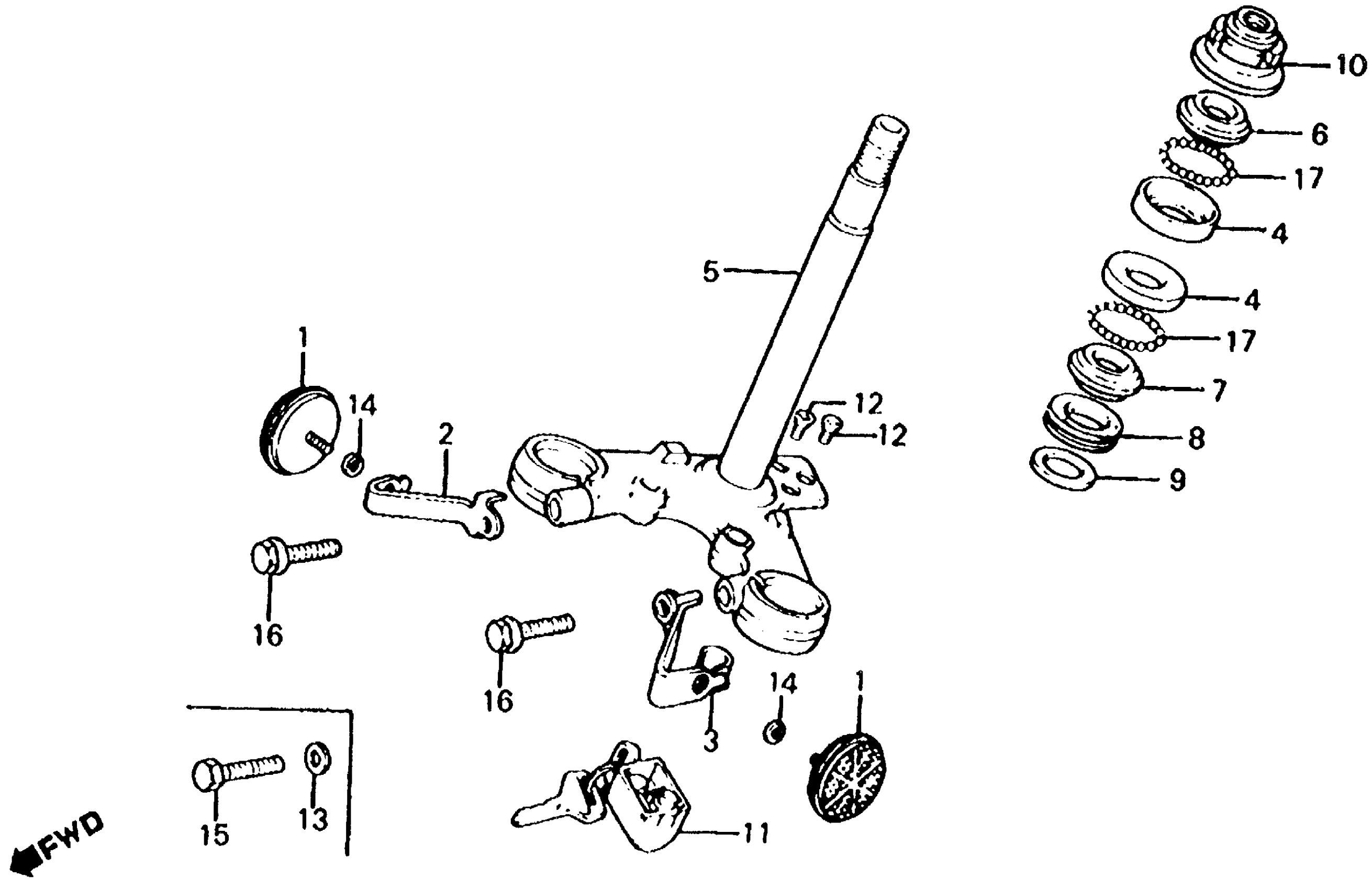

Honda XL100SA (82) MOTORCYCLE, JPN, VIN# JH2HD050-CK100003 TO JH2HD050-CK104009 STEERING STEM 81-82 Diagram

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

STAY, R. REFLECTOR (NOT AVAILABLE)

33751-149-000

Unavailable

STAY, L. REFLECTOR (NOT AVAILABLE)

33752-149-000

Unavailable

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

RACE, STEERING TOP BALL

50301-041-010

$12.39

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-150-000ZA

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

THREAD, STEERING HEAD TOP

53220-167-000

$18.84

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

WASHER, SPRING (6MM)

94111-06000

$1.49

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
