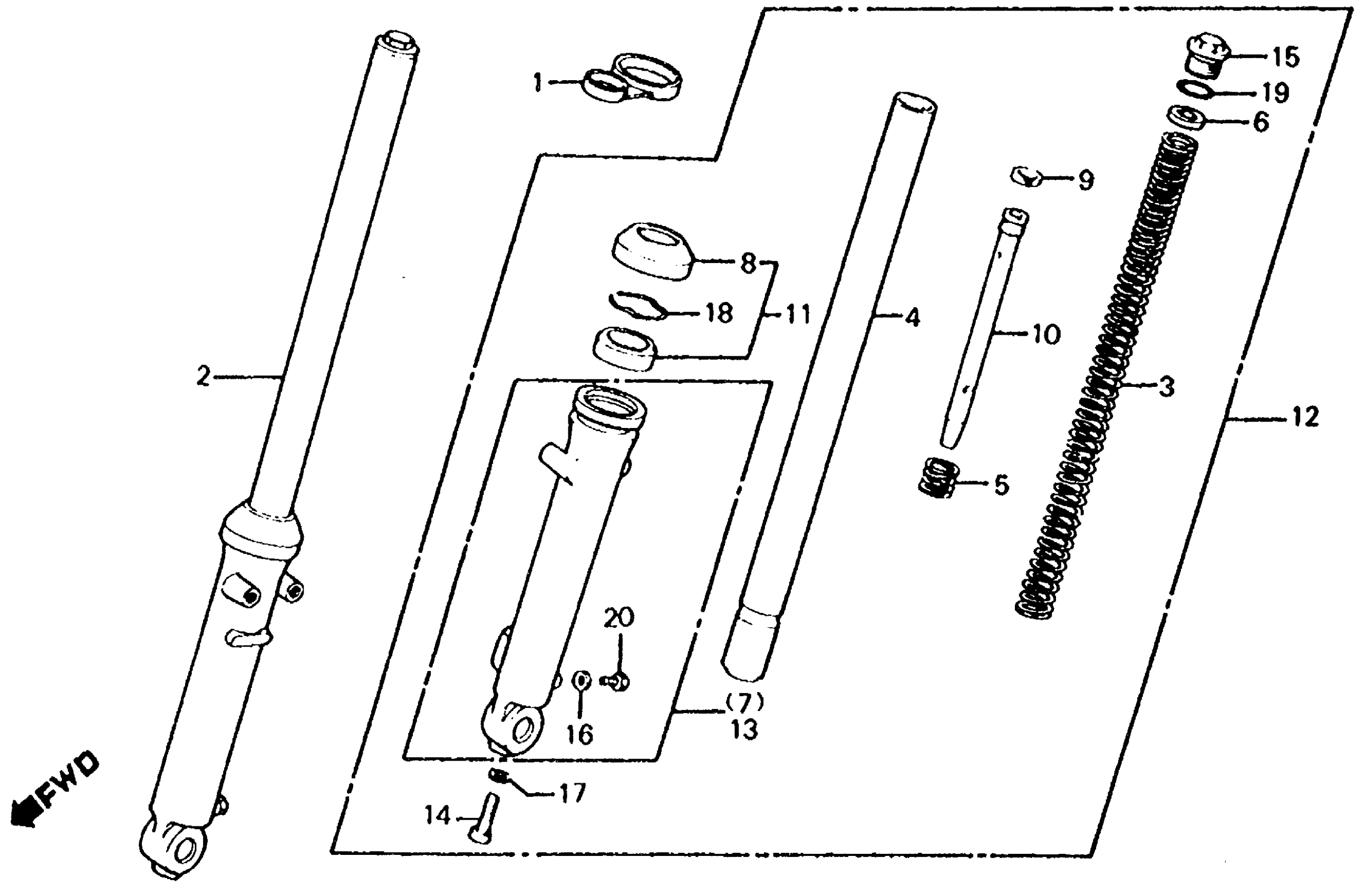

Honda XL100SA (81) MOTORCYCLE, JPN, VIN# JH2HD050-BK000011 TO JH2HD050-BK003939 FRONT SHOCK ABSORBER 81-82 Diagram

GUIDE, BRAKE CABLE

45468-383-670

Unavailable

SHOCK ABSORBER ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-KA8-003

Unavailable

SPRING, FR. FORK (SHOWA) (NOT AVAILABLE)

51401-KA8-003

Unavailable

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-KA8-003

Unavailable

SPRING, REBOUND

51412-383-721

$6.57

BOLT, FR. FORK (INNER)

51415-166-003

Unavailable

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51420-KA8-003

Unavailable

DUST SEAL, FR. FORK

51425-149-841

Unavailable

RING, PISTON

51437-GM0-003

$5.07

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

PIPE, SEAT (SHOWA)

51470-KA8-003

Unavailable

SEAL SET, FR. FORK

51490-149-840

$32.63

SHOCK ABSORBER ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-KA8-003

Unavailable

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51520-KA8-003

Unavailable

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

BOLT, FORK (SHOWA) (NOT AVAILABLE)

90123-KA8-003

Unavailable

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

O-RING (16.8X2.4)

91256-166-003

$2.39

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
