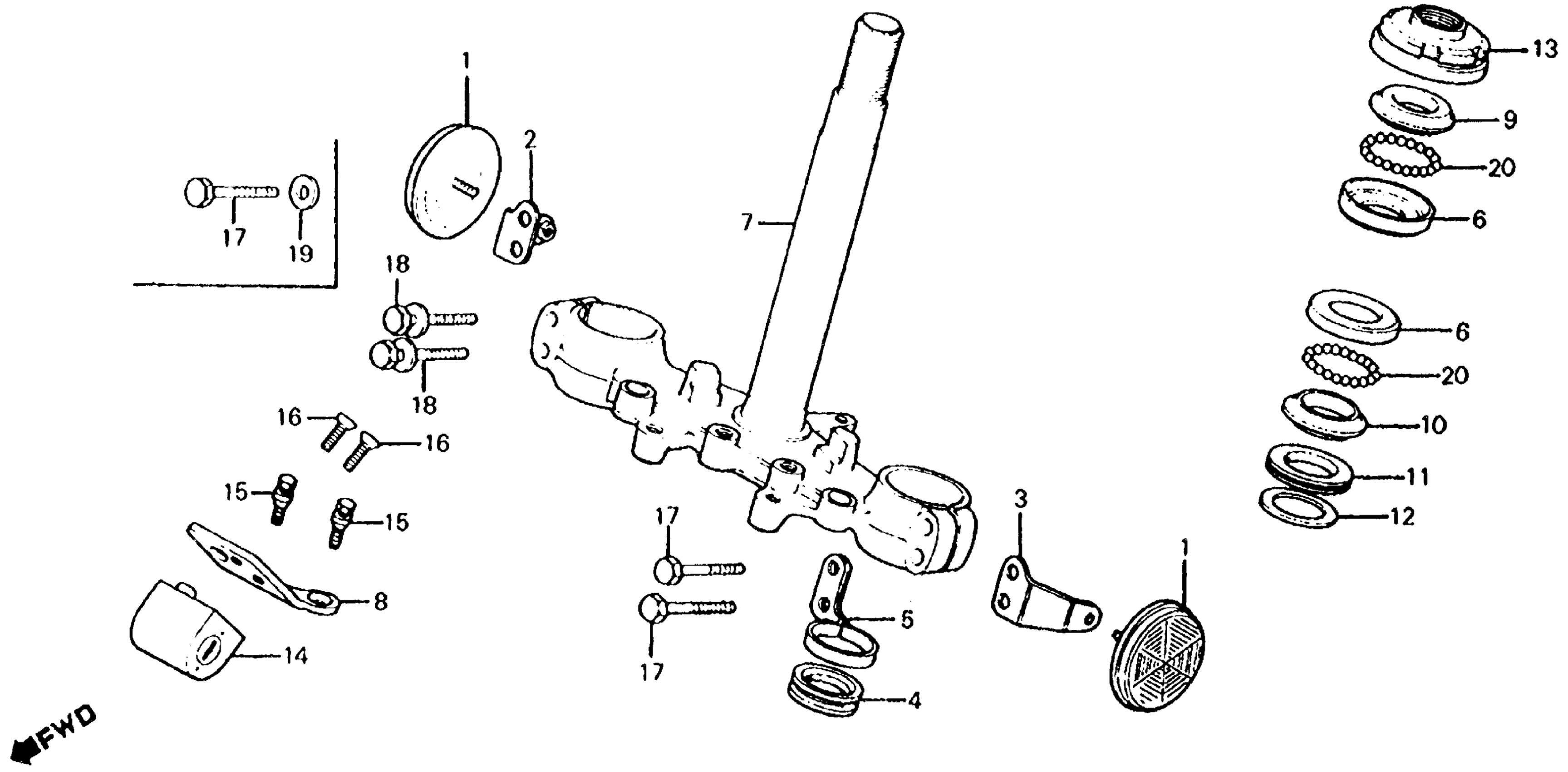

Honda XL100SA (80) MOTORCYCLE, JPN, VIN# HD01-5100009 TO HD01-5103211 STEERING STEM 79-80 Diagram

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

STAY, R. FR. REFLEX (NOT AVAILABLE)

33750-436-670

Unavailable

STAY, L. FR. REFLEX

33751-436-670

Unavailable

GUIDE, CABLE (INNER)

45466-329-000

$2.95

GUIDE, BRAKE CABLE

45468-427-770

Unavailable

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

RACE, STEERING TOP BALL

50301-041-010

$12.39

STEM, STEERING *NH1* This part replaces 53200-437-000ZA.

53200-437-000ZC

Unavailable

HOLDER, HANDLE LOCK

53203-437-000

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$47.89

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

BOLT, HEX. (8X32) | Use from Frame SN 5103522 This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

BOLT, HEX. (8X32) | Use from Frame SN 5103522

92101-08032-0B

$2.39

BOLT, HEX. (8X32) | Use from Frame SN 5103522 This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

BOLT-WASHER (8X32) (NOT AVAILABLE) | Use from Frame SN 5103522

93481-08032-00

Unavailable

WASHER, PLAIN (8MM) | Use up to Frame SN 5103521

94101-08000

$1.49

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
