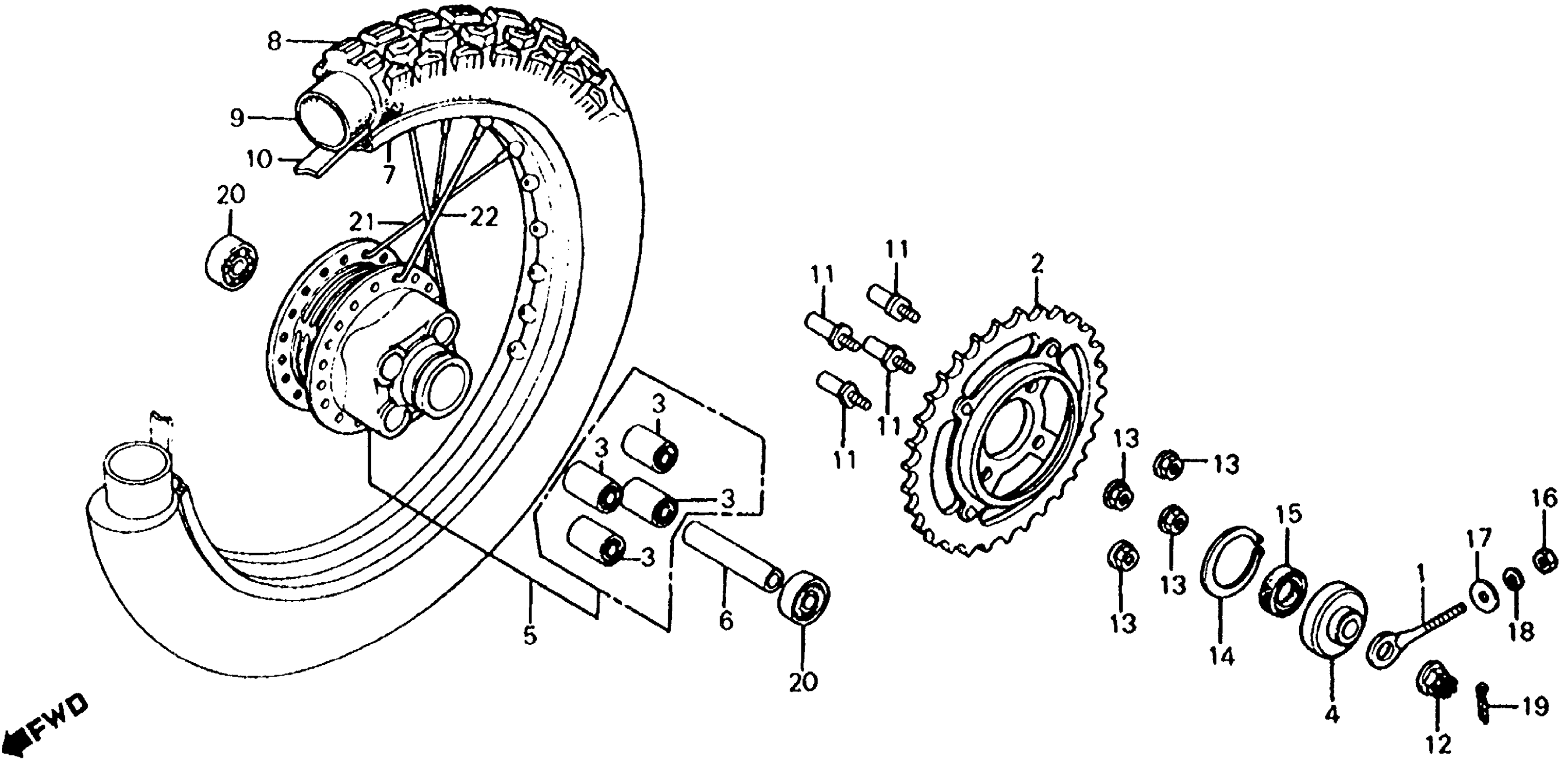

Honda XL100SA (80) MOTORCYCLE, JPN, VIN# HD01-5100009 TO HD01-5103211 REAR WHEEL 79-80 Diagram

#

Description
Price

1

ADJUSTER C, R. CHAIN This part replaces 40543-437-000.

95014-12100

$5.54

1

ADJUSTER C, R. CHAIN

95014-12100

$5.54

2

SPRKT COMP.,FINL This part replaces 41200-436-670.

41200-KK6-740

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

4

COLLAR, RR. WHEEL SIDE

42304-437-000

Unavailable

5

HUB, RR. WHEEL *NH105* (MAT BLACK) (NOT AVAILABLE)

42610-436-000ZA

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-437-000

Unavailable

7

RIM, RR. WHEEL (NOT AVAILABLE) This part replaces 42701-364-791.

42701-GE2-671

Unavailable

8

TIRE, RR. (3.25-17) (4PR) (NITTO) (NOT AVAILABLE)

42711-364-671

Unavailable

8

TIRE, RR. (3.25-17) (BS) (NOT AVAILABLE)

42711-364-791

Unavailable

9

TUBE, TIRE (3.25-17) (BS)

42712-110-003

Unavailable

10

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

10

FLAP, TIRE (2.15-17) (BS) This part replaces 42713-074-006.

42713-MG7-003

$7.75

10

FLAP, TIRE (2.15-17) (BS) This part replaces 42713-110-003.

42713-MG7-003

$7.75

11

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-391-000.

90128-KE2-940

$6.84

12

NUT, AXLE (14MM)

90305-401-680

$11.65

13

NUT, FLANGE (10MM)

90308-382-670

$4.07

14

CIRCLIP (58MM)

90664-216-000

$5.55

15

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

15

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

15

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

WASHER, PLAIN (6MM)

94103-06000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

19

PIN, COTTER (3.0X45)

94201-30450

$1.49

20

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

20

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

21

SPOKE BS (8X157.5)

97452-69155-Q0

$5.30

22

SPOKE BS (8X157.0)

97714-69154-Q0

Unavailable
