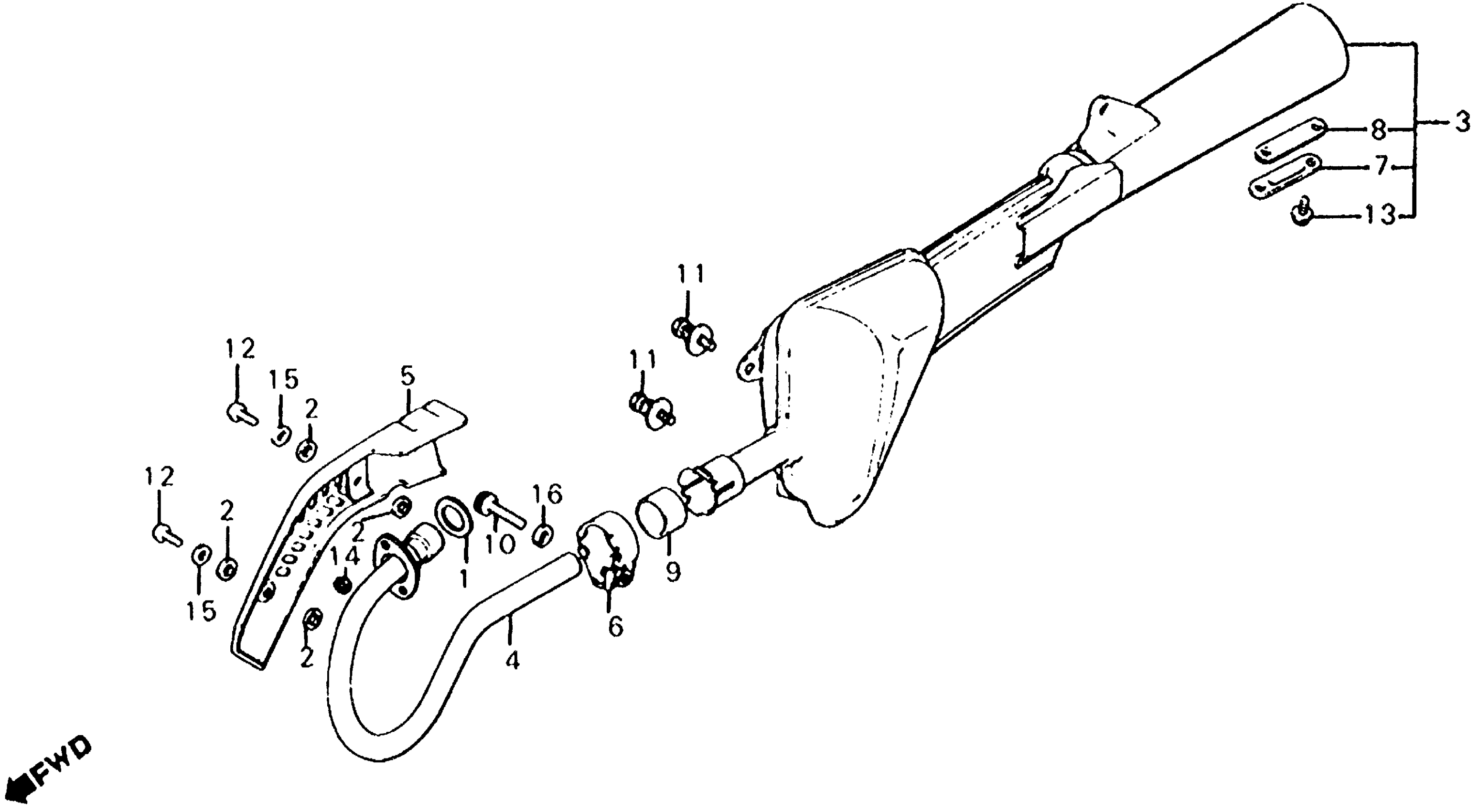

Honda XL100SA (80) MOTORCYCLE, JPN, VIN# HD01-5100009 TO HD01-5103211 MUFFLER 79-80 Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-028-000.

18291-028-306

$7.30

1

GASKET, EX. PIPE

18291-028-306

$7.30

2

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

2

GASKET, PROTECTOR

18292-MM9-740

$3.03

2

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

3

MUFFLER ASSY. (NOT AVAILABLE) This part replaces 18300-436-672.

18300-436-677

Unavailable

3

MUFFLER ASSY. (NOT AVAILABLE)

18300-436-677

Unavailable

4

PIPE, EX. (NOT AVAILABLE)

18320-436-003

Unavailable

5

PROTECTOR, EX. PIPE This part replaces 18321-437-000.

18321-437-010

Unavailable

5

PROTECTOR, EX. PIPE

18321-437-010

Unavailable

6

BAND, MUFFLER

18371-355-710

Unavailable

7

LID, MUFFLER This part replaces 18373-446-000.

18373-446-010

Unavailable

7

LID, MUFFLER

18373-446-010

Unavailable

8

GASKET, MUFFLER

18374-KR8-900

Unavailable

8

GASKET, MUFFLER This part replaces 18374-310-000.

18374-KR8-900

Unavailable

9

GASKET, MUFFLER

18391-KJ3-700

$27.56

9

GASKET, MUFFLER This part replaces 18391-KR9-000.

18391-KJ3-700

$27.56

9

GASKET, MUFFLER This part replaces 18391-437-000.

18391-KJ3-700

$27.56

10

BOLT, SOCKET

90116-391-670

Unavailable

11

BOLT-WASHER (8X16)

93413-08016-08

$1.49

11

BOLT-WASHER (8X16) This part replaces 93483-08016-08.

93413-08016-08

$1.49

12

SCREW, PAN (6X10)

93500-06010-0G

$1.49

12

SCREW, PAN (6X10) This part replaces 93500-06010-07.

93500-06010-0G

$1.49

13

SCREW-WASHER (6X12)

93891-06012-07

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM)

94101-06700

$1.49

16

WASHER, SPRING (8MM)

94111-08000

$1.49
