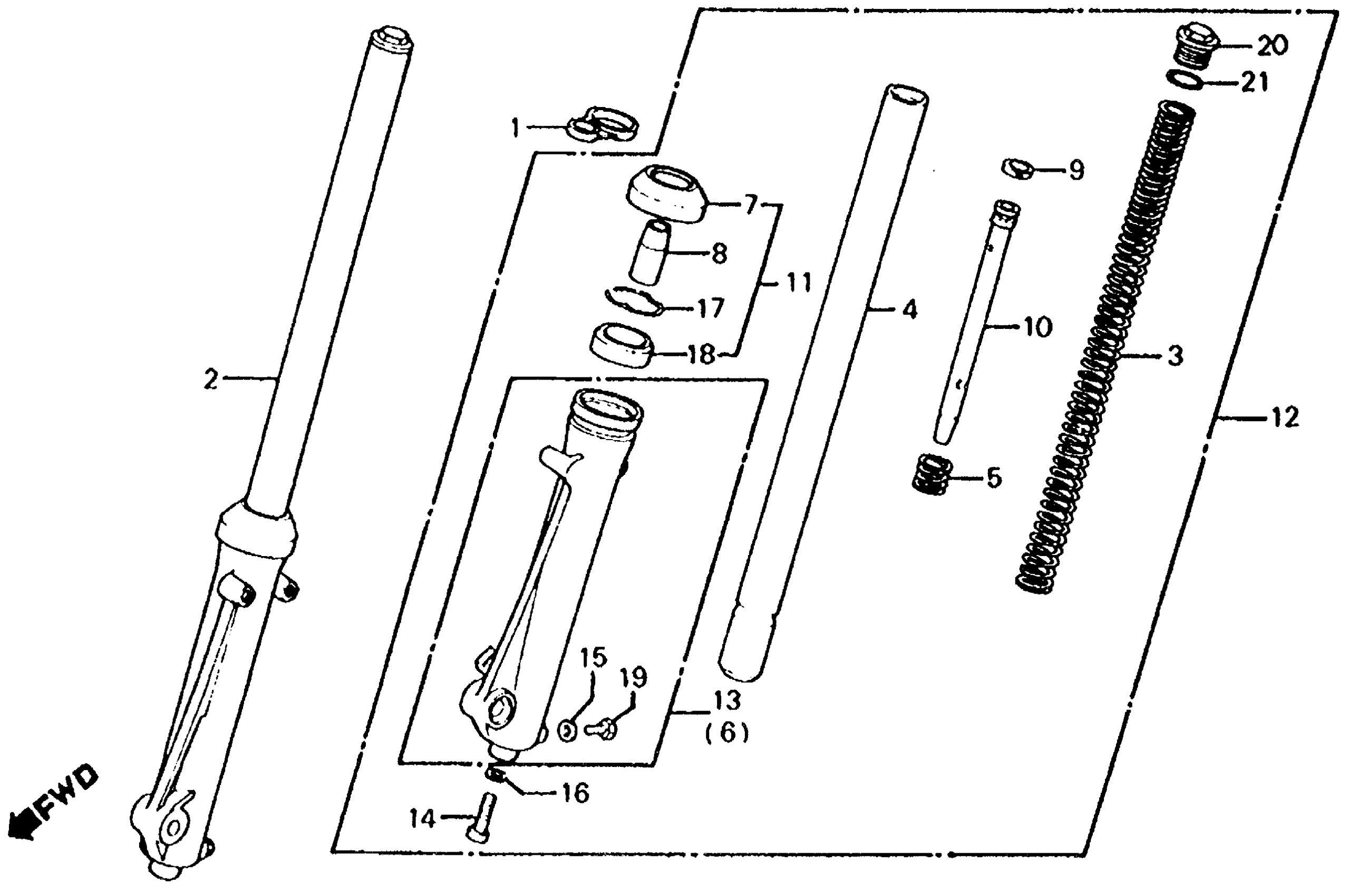

Honda XL100SA (80) MOTORCYCLE, JPN, VIN# HD01-5100009 TO HD01-5103211 FRONT SHOCK ABSORBER 79-80 Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45468-399-620

Unavailable

2

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE) | Use up to Frame SN 5103463

51400-436-770

Unavailable

2

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 5103464

51400-436-771

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-436-003

Unavailable

4

PIPE, FR. FORK

51410-365-671

Unavailable

5

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

6

CASE, R. (LOWER) (NOT AVAILABLE) CASE, R. (LOWER) (SHOWA) | Use up to Frame SN 5103463

51421-436-003

Unavailable

6

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE) | Use from Frame SN 5103464

51421-436-013

Unavailable

7

DUST SEAL (SHOWA) | Use up to Frame SN 5103463 This part replaces 51425-110-003.

91254-436-003

$16.75

7

DUST SEAL (SHOWA)

91254-436-003

$16.75

8

PIECE, OIL LOCKING

51432-447-731

$27.42

9

RING, PISTON

51437-373-781

Unavailable

10

PIPE, SEAT

51440-436-003

Unavailable

11

SEAL SET, FR. FORK | Use from Frame SN 5103464

51490-GAA-305

$28.76

11

SEAL SET, FR. FORK | Use from Frame SN 5103464 This part replaces 51490-446-770.

51490-GAA-305

$28.76

12

SHOCK ABSORBER ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN 5103463

51500-436-770

Unavailable

12

SHOCK ABSORBER ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN 5103464

51500-436-771

Unavailable

13

CASE, L. (LOWER) (NOT AVAILABLE) CASE, L. (LOWER) (SHOWA) | Use up to Frame SN 5103463

51521-436-003

Unavailable

13

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE) | Use from Frame SN 5103464

51521-436-013

Unavailable

14

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

14

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

15

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

16

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

17

RING, OIL SEAL STOP

90601-354-000

$5.13

18

OIL SET, FR. OIL FILTER | Use up to Frame SN 5103463

51495-331-405

$19.75

18

OIL SEAL SET (FR FORK) | Use up to Frame SN 5103463 This part replaces 91255-331-671.

51495-331-405

$19.75

19

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

20

BOLT, FR. FORK (NOT AVAILABLE)

90127-437-770

Unavailable

21

O-RING (23X2.4)

94608-30000

$1.49
