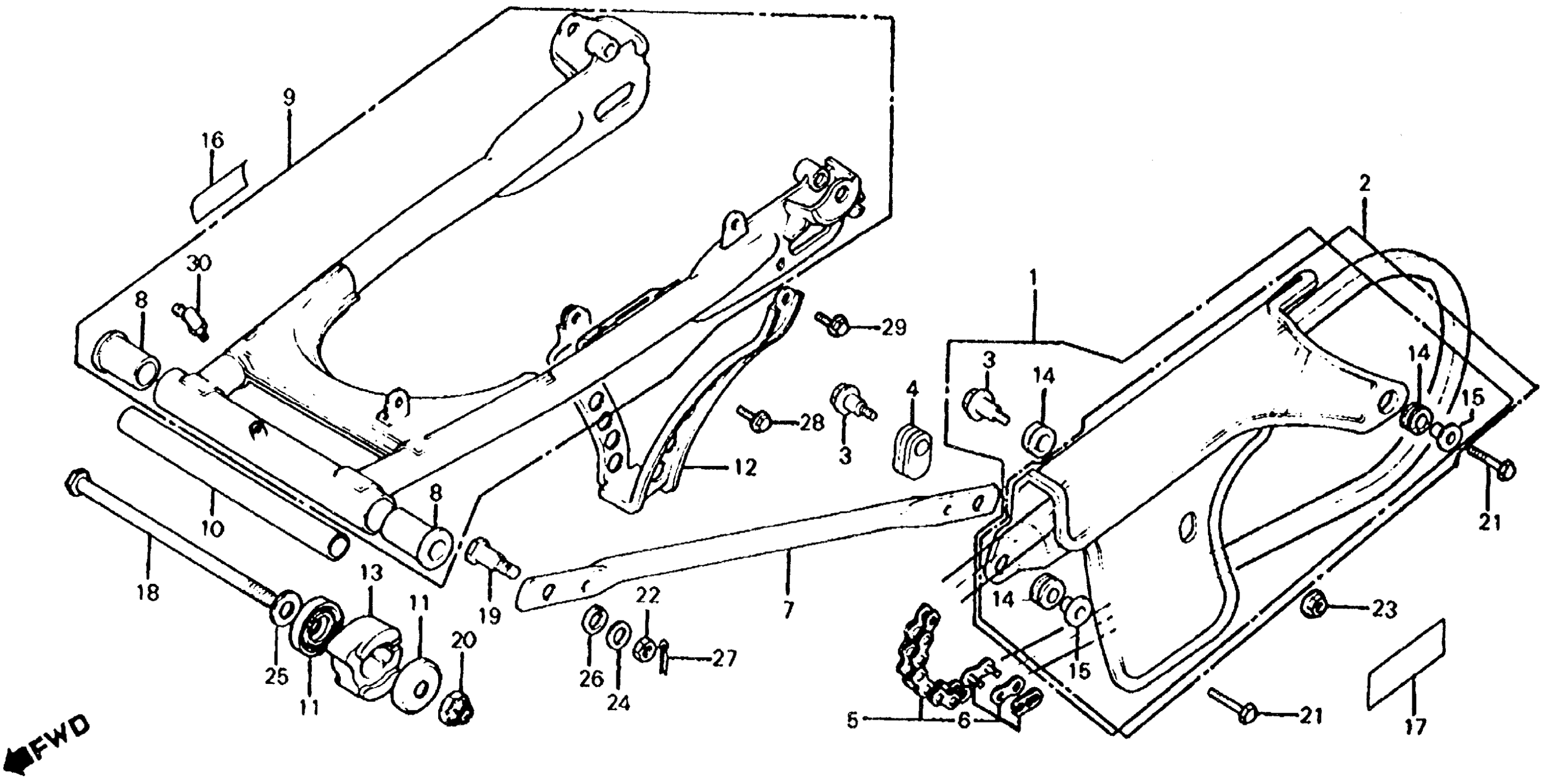

Honda XL100SA (79) MOTORCYCLE, JPN, VIN# HD01-5002640 TO HD01-5012036 XL100S SWINGARM + CHAIN GUARD 79-80 Diagram

#

Description
Price

1

GUARD, DRIVE CHAIN | Use up to Frame SN 5005179 This part replaces 40510-437-000.

40510-446-000

Unavailable

1

GUARD, DRIVE CHAIN

40510-446-000

Unavailable

3

BOLT, CHAIN GUARD

40512-437-000

Unavailable

5

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 405W3-427-505.

40530-KC2-961

$58.78

5

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-KN4-003.

40530-KC2-961

$58.78

5

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-355-013.

40530-KC2-961

$58.78

5

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-402-731.

40530-KC2-961

$58.78

5

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-437-601.

40530-KC2-961

$58.78

5

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-437-603.

40530-KC2-961

$58.78

6

MASTER LINK

40531-237-680

$4.15

6

MASTER LINK (DAIDO) This part replaces 40531-355-003.

40531-355-013

$4.15

6

MASTER LINK (DAIDO)

40531-355-013

$4.15

6

MASTER LINK This part replaces 40531-399-003.

40533-943-003

$4.56

6

MASTER LINK (TAKASAGO)

40531-437-602

Unavailable

6

MASTER LINK

40533-943-003

$4.56

7

ARM, RR. BRAKE STOPPER

43431-437-000

Unavailable

8

BUSH, PIVOT THRUST

52109-360-310

$41.11

9

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-437-672ZA

Unavailable

10

COLLAR, SWINGARM This part replaces 52141-437-000.

52141-437-010

Unavailable

10

COLLAR, SWINGARM

52141-437-010

Unavailable

11

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

11

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$11.80

12

GUARD, CHAIN (NOT AVAILABLE)

52156-437-671

Unavailable

13

SLIDER, CHAIN

52170-437-000

$21.13

14

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

15

COLLAR, RR. FENDER

61105-428-000

Unavailable

16

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

17

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-436-670

Unavailable

18

BOLT, SWINGARM PIVOT

90121-KF9-900

Unavailable

18

BOLT, SWINGARM PIVOT This part replaces 90121-437-000.

90121-KF9-900

Unavailable

19

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

20

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

21

SCREW, PAN (6X22)

93500-06022-0A

$1.49

22

NUT, HEX. (8MM)

94001-08000-0S

$1.49

23

NUT, FLANGE (6MM)

94050-06080

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, PLAIN (12MM)

94101-12000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

29

BOLT, FLANGE (6X14) | Use from Frame SN 5010295 This part replaces 95700-06014-08.

95701-06014-08

$1.55

29

BOLT, FLANGE (6X16) | Use up to Frame SN 5010294 This part replaces 95700-06016-08.

95701-06016-08

$1.49

29

BOLT, FLANGE (6X14) | Use from Frame SN 5010295

95701-06014-08

$1.55

29

BOLT, FLANGE (6X16) | Use up to Frame SN 5010294

95701-06016-08

$1.49

30

FITTING, GREASE (C.76)

96201-60000

$2.87
