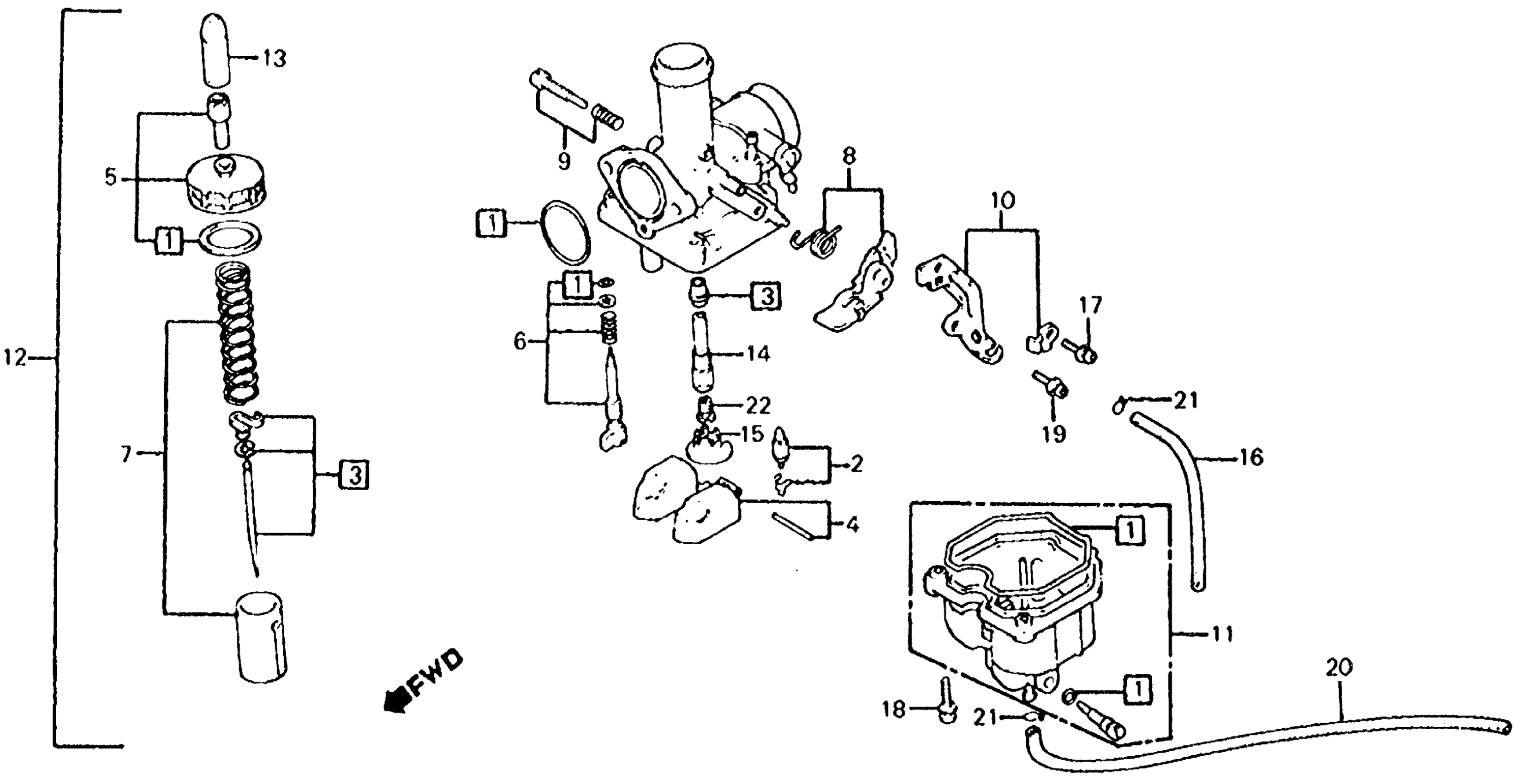

Honda XL100SA (79) MOTORCYCLE, JPN, VIN# HD01-5002640 TO HD01-5012036 CARBURETOR 79-80 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-364-770.

16010-439-305

$21.05

1

GASKET SET

16010-439-305

$21.05

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-436-004

Unavailable

4

FLOAT SET

16013-405-004

$56.20

5

TOP SET This part replaces 16014-364-770.

16014-397-971

Unavailable

6

SCREW SET A

16016-410-601

Unavailable

7

VALVE SET, THROTTLE This part replaces 16022-364-770.

16022-397-651

Unavailable

7

VALVE SET, THROTTLE This part replaces 16022-397-631.

16022-397-651

Unavailable

7

VALVE SET, THROTTLE

16022-397-651

Unavailable

7

VALVE SET, THROTTLE This part replaces 16022-439-004.

16022-397-651

Unavailable

8

LEVER SET, CHOKE

16025-427-004

$29.95

9

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

10

PLATE SET, STAY

16035-427-004

Unavailable

11

CHAMBER SET, FLOAT This part replaces 16015-KA8-671.

16015-KN4-A10

$97.52

11

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

11

CHAMBER SET, FLOAT This part replaces 16015-428-014.

16015-KN4-A10

$97.52

11

CHAMBER SET, FLOAT This part replaces 16045-KA8-671.

16015-KN4-A10

$97.52

11

CHAMBER SET, FLOAT This part replaces 16045-436-004.

16015-KN4-A10

$97.52

12

CARBURETOR ASSY. (NOT AVAILABLE)

16100-436-014

Unavailable

13

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-436-004

Unavailable

15

HOLDER, JET

16168-382-014

$9.81

16

PIPE, AIR VENT

16199-427-004

Unavailable

17

SCREW-WASHER (4X10)

93892-04010-08

$1.49

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

SCREW-WASHER (5X12)

93892-05012-08

$1.49

20

BULK HOSE, FUEL (3.5X3000) (3.5X300) TUBE, RUBBER

95001-35003-60M

$20.85

21

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

22

JET SET, MAIN (#98) (NOT AVAILABLE) | (Optional).

16110-436-305

Unavailable

22

JET, MAIN (#102)

99101-GHB-1020

$6.40

22

JET, MAIN (#102) This part replaces 99101-393-1020.

99101-GHB-1020

$6.40
