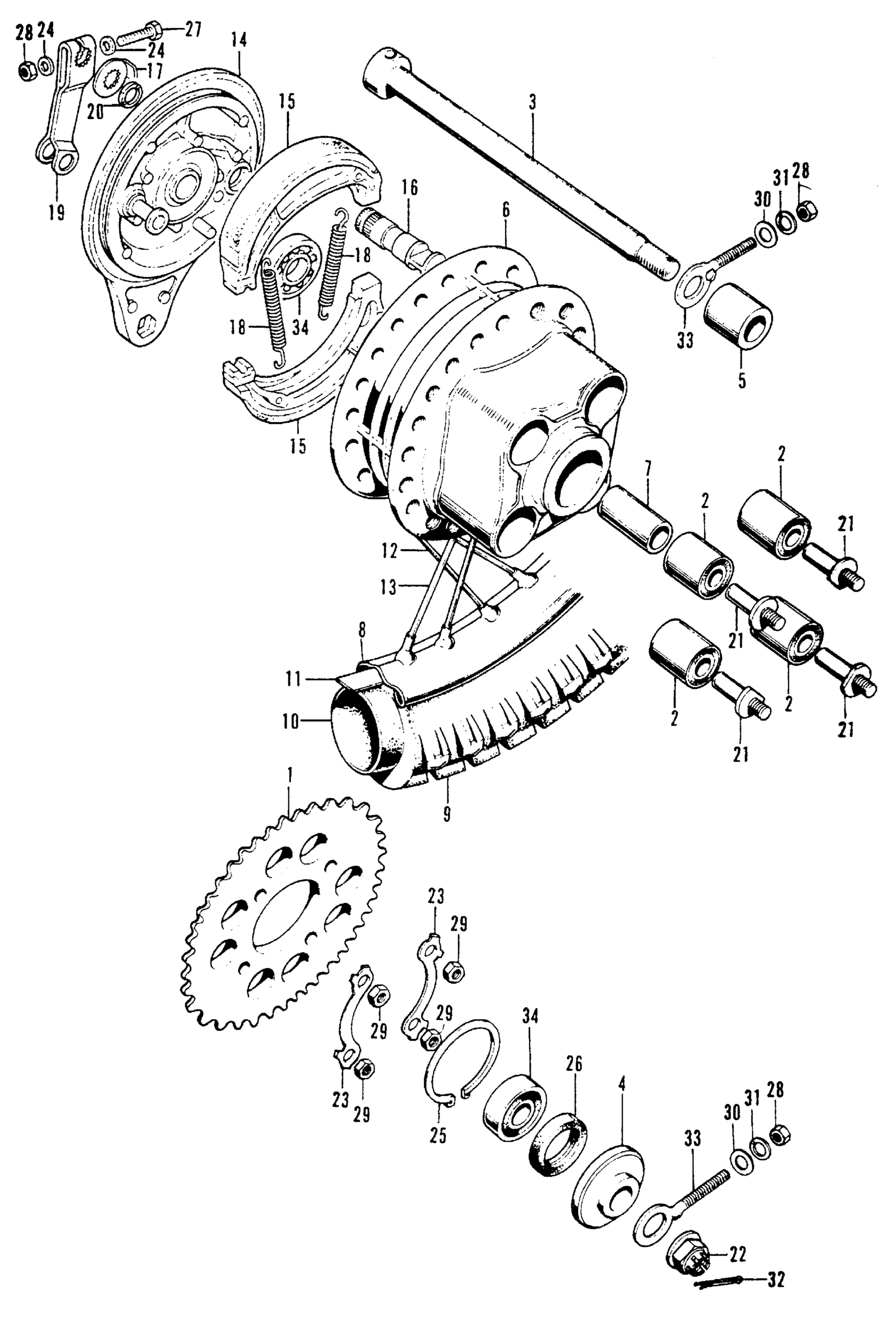

Honda XL100K1A MOTORCYCLE, JPN, VIN# XL100-1100004 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE)

41201-331-670

Unavailable

2

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

3

AXLE, RR. WHEEL (USED AS FR. FOR THIS BLOCK) This part replaces 42301-107-020.

42301-401-680

Unavailable

3

AXLE, RR. WHEEL

42301-401-680

Unavailable

4

COLLAR, RR. WHEEL SIDE

42304-107-000

Unavailable

5

COLLAR, RR. BRAKE PANEL SIDE

42313-074-010

Unavailable

6

HUB, RR. WHEEL

42610-355-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-107-010

Unavailable

8

RIM, RR. WHEEL (NOT AVAILABLE) This part replaces 42701-110-023.

42701-GE2-671

Unavailable

8

RIM, RR. WHEEL (NOT AVAILABLE) This part replaces 42701-364-791.

42701-GE2-671

Unavailable

9

TIRE, RR. (3.25-17) (NITTO) (NOT AVAILABLE)

42711-074-016

Unavailable

10

TUBE, TIRE (3.25-17) (BS) This part replaces 08400-07400.

42712-110-003

Unavailable

10

TUBE, TIRE (3.25-17) (BS) This part replaces 42712-074-006.

42712-110-003

Unavailable

10

TUBE, TIRE (3.25-17) (BS)

42712-110-003

Unavailable

11

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

11

FLAP, TIRE (2.15-17) (BS) This part replaces 42713-074-006.

42713-MG7-003

$7.75

11

FLAP, TIRE (2.15-17) (BS) This part replaces 42713-110-003.

42713-MG7-003

$7.75

12

SPOKE BS (9X159.5) (INSIDE)

97310-59159-10

$3.78

13

SPOKE BS (9X159) (OUTSIDE)

97518-59158-10

$3.78

14

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-365-670

Unavailable

15

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

15

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

16

CAM, RR. BRAKE (NOT AVAILABLE)

43141-365-670

Unavailable

17

PLATE, BRAKE INDICATOR

43145-365-670

Unavailable

18

SPRING, BRAKE SHOE

43151-110-000

$2.92

19

ARM, RR. BRAKE

43410-041-020

Unavailable

19

ARM, RR. BRAKE This part replaces 43410-364-670.

43410-041-020

Unavailable

20

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

21

BOLT, DRIVEN SPROCKET FIXING

90128-216-000

$5.66

22

NUT, AXLE (14MM) This part replaces 90305-107-010.

90305-401-680

$11.65

22

NUT, AXLE (14MM)

90305-401-680

$11.65

23

WASHER A3, TONGUED This part replaces 90522-222-000.

94108-13000

$1.49

23

WASHER A3, TONGUED This part replaces 90523-222-000.

94108-13000

$1.49

23

WASHER A3, TONGUED

94108-13000

$1.49

24

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

25

CIRCLIP (58MM)

90664-216-000

$5.55

26

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

26

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

27

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

27

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

27

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

28

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM)

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (8MM)

94031-08000

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

30

WASHER, PLAIN (6MM)

94101-06800

$1.49

31

WASHER, SPRING (6MM)

94111-06000

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

32

PIN, COTTER (3.0X45)

94201-30450

$1.49

33

ADJUSTER C, R. CHAIN

95014-12100

$5.54

34

BEARING, RADIAL BALL (6302U)

96140-63020

$16.99
