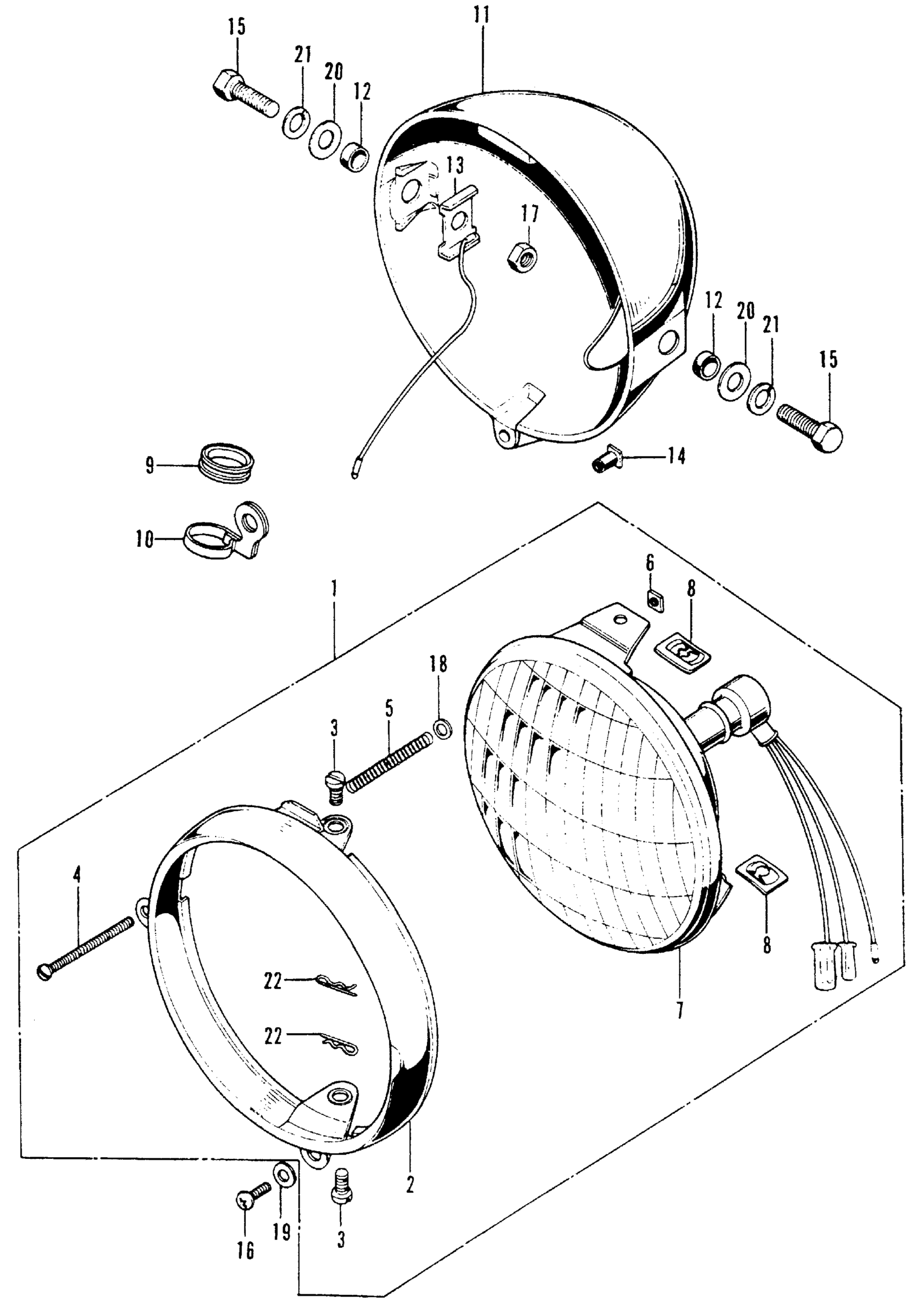

Honda XL100K1A MOTORCYCLE, JPN, VIN# XL100-1100004 HEADLIGHT + HEADLIGHT CASE Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33100-243-670.

33100-243-672

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-243-672

Unavailable

2

RIM, HEADLIGHT

33101-243-670

$30.10

3

SCREW, UNIT HOLDER (NOT AVAILABLE)

33102-283-000

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ.

33103-200-020

Unavailable

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$2.80

6

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-200-023

Unavailable

7

HEADLIGHT UNIT (6V35/25W) This part replaces 33120-243-670.

33120-243-672

$55.99

7

HEADLIGHT UNIT (6V35/25W)

33120-243-672

$55.99

8

NUT, UNIT HOLDER

33128-200-033

Unavailable

9

GUIDE, CABLE (INNER)

45466-329-000

$2.80

10

HOLDER, CABLE (INNER) (NOT AVAILABLE)

45468-102-730

Unavailable

11

CASE, HEADLIGHT *NH43* (PHANTOM BLACK) (NOT AVAILABLE) | Use up to Frame SN 1128189

61301-105-000NR

Unavailable

11

CASE, HEADLIGHT *NH43* (PHANTOM BLACK) (NOT AVAILABLE) | Use from Frame SN 1128190 This part replaces 61301-391-000NR.

61301-391-000ZA

Unavailable

11

CASE, HEADLIGHT *NH43* (PHANTOM BLACK) (NOT AVAILABLE) | Use from Frame SN 1128190

61301-391-000ZA

Unavailable

12

COLLAR, HEADLIGHT CASE

61302-229-300

Unavailable

13

WASHER, HEADLIGHT CASE (NOT AVAILABLE)

61303-074-000

Unavailable

14

NUT, HEADLIGHT SETTING

61308-229-310

Unavailable

15

BOLT, HEX. (8X25) This part replaces 92000-08025-0B.

92101-08025-0B

$1.62

15

BOLT, HEX. (8X25)

92101-08025-0B

$1.62

16

SCREW, PAN (5X12)

93500-05012-0A

$0.83

17

NUT, HEX. (8MM)

94030-08000

$0.97

18

WASHER, PLAIN (4MM)

94101-04000

$0.90

19

WASHER, PLAIN (5MM)

94101-05000

$0.90

20

WASHER, PLAIN (8MM)

94101-08000

$0.75

21

WASHER, SPRING (8MM)

94111-08000

$0.90

22

PIN, LOCK (5MM)

94251-05000

$0.94
