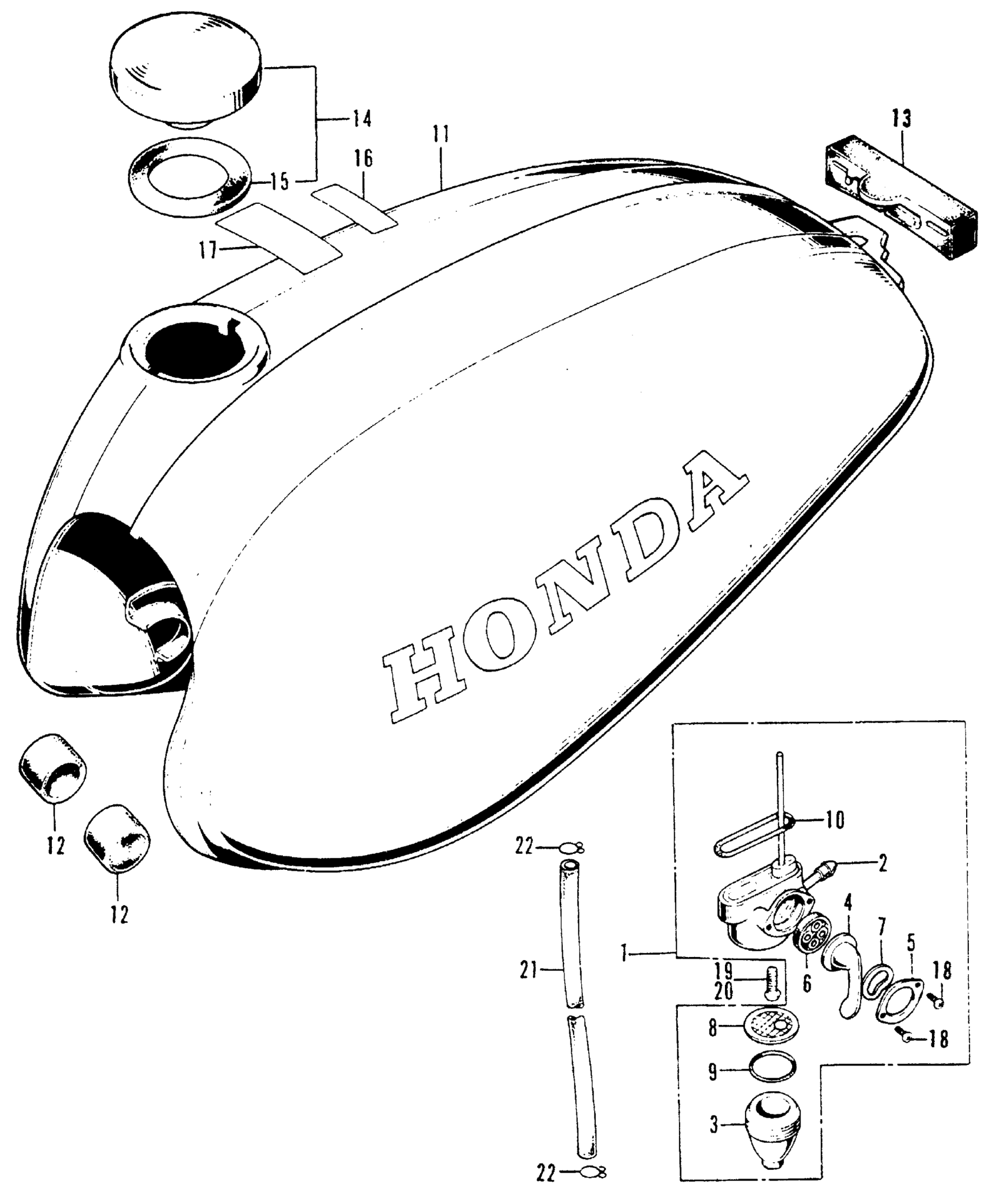

Honda XL100K1A MOTORCYCLE, JPN, VIN# XL100-1100004 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-356-700

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

4

LEVER, PETCOCK (NOT AVAILABLE)

16953-389-670

Unavailable

5

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16954-389-670

Unavailable

6

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

6

GASKET, VALVE

16957-ZE1-812

$3.08

7

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

8

SCREEN, FUEL STRAINER

16957-028-000

$16.22

9

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

9

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

9

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

9

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

10

GASKET, PETCOCK BODY

16997-273-006

$6.74

11

TANK ASSY., FUEL *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

17500-364-671CM

Unavailable

12

RUBBER, FR. FUEL TANK

17611-331-000

$4.22

13

RUBBER, RR. FUEL TANK

17613-051-010

$9.78

14

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

15

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

15

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

15

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

16

LABEL A, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87504-045-020A

Unavailable

17

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

18

SCREW, PAN (3X6)

93500-03006-0H

$1.49

20

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

20

SCREW, PAN (6X40)

93500-06040-0A

$1.49

21

BULK HOSE, FUEL (4.5X3000) (4.5X140)

95001-45003-60M

$36.67

21

BULK HOSE, FUEL (4.5X3000) (4.5X150)

95001-45003-60M

$36.67

21

BULK HOSE, FUEL (4.5X3000) (4.5X200)

95001-45003-60M

$36.67

22

CLIP, TUBE (B8)

95002-02080

$1.80
