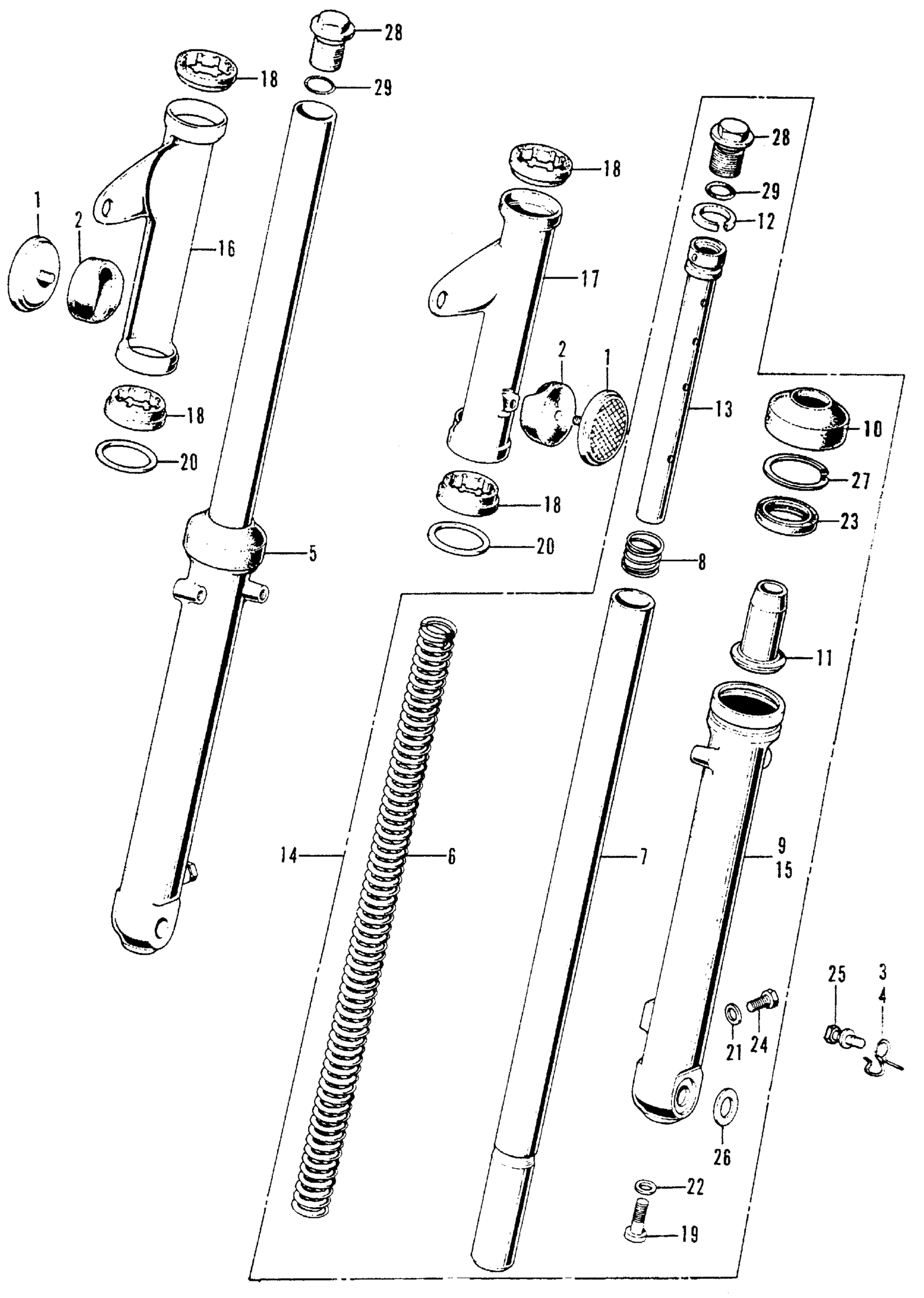

Honda XL100K1A MOTORCYCLE, JPN, VIN# XL100-1100004 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLECTOR

33744-331-770

Unavailable

4

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45469-364-670

Unavailable

5

FORK ASSY., R. FR.

51400-110-791

Unavailable

6

SPRING, FR. FORK (NOT AVAILABLE)

51401-331-771

Unavailable

7

PIPE, FR. FORK (NOT AVAILABLE)

51410-110-791

Unavailable

8

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

9

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51421-110-791

Unavailable

10

DUST SEAL (SHOWA) This part replaces 51425-110-003.

91254-436-003

$16.75

10

DUST SEAL (SHOWA)

91254-436-003

$16.75

11

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-331-770

Unavailable

12

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

13

SEAT (LOWER)

51440-331-773

Unavailable

14

FORK ASSY., L. FR.

51500-110-791

Unavailable

15

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51521-110-791

Unavailable

16

STAY, R. HEADLIGHT CASE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

61311-364-670XW

Unavailable

17

STAY, L. HEADLIGHT CASE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

61312-364-670XW

Unavailable

18

RUBBER, HEADLIGHT STAY (NOT AVAILABLE)

61315-110-000

Unavailable

19

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

19

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

20

WASHER (32MM) (NOT AVAILABLE)

90502-110-000

Unavailable

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

OIL SET, FR. OIL FILTER

51495-331-405

$19.75

23

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$19.75

24

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

25

BOLT-WASHER (6X12)

93401-06012-00

$1.55

25

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.55

25

BOLT-WASHER (6X12) This part replaces 93481-06012.

93401-06012-00

$1.55

25

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.55

26

WASHER, PLAIN (12MM)

94101-12000

$1.49

27

CIRCLIP (INNER) (45MM) (NOT AVAILABLE)

94521-45000

Unavailable

28

BOLT D1, FORK This part replaces 94605-27100.

94605-27101

$8.00

28

BOLT D1, FORK

94605-27101

$8.00

29

O-RING (23X2.4)

94608-30000

$1.49
