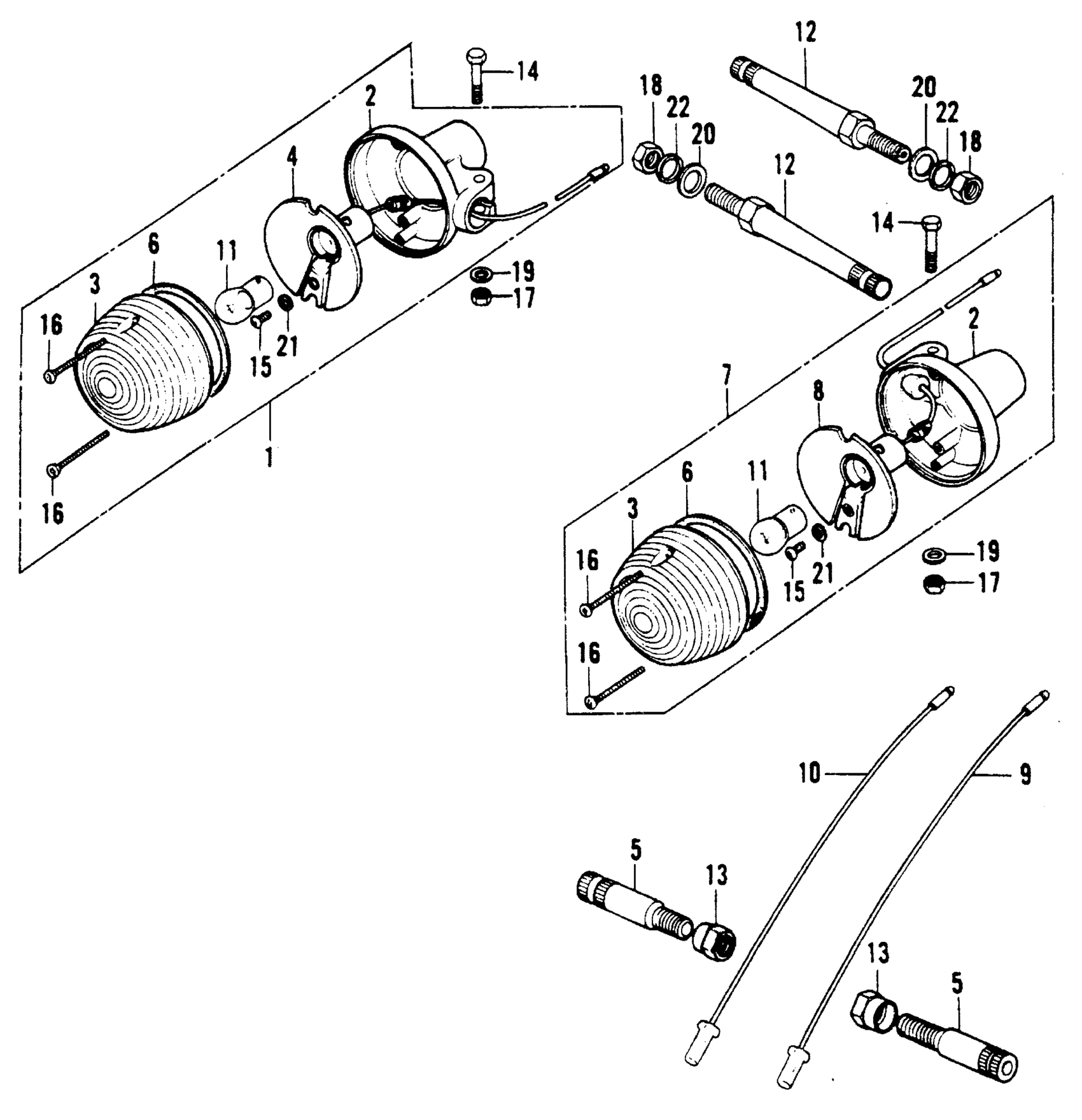

Honda XL100A MOTORCYCLE, JPN, VIN# XL100-1000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., L. FR. This part replaces 33400-056-671.

33400-436-679

Unavailable

1

TURN SIGNAL ASSY., L. FR. This part replaces 33400-056-679.

33400-436-679

Unavailable

1

TURN SIGNAL ASSY., L. FR.

33400-436-679

Unavailable

1

TURN SIGNAL ASSY., L. FR. This part replaces 33650-356-671.

33400-436-679

Unavailable

2

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

2

BASE, TURN SIGNAL

33401-341-701

$39.39

3

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

3

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

4

SOCKET, R. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33410-056-671

Unavailable

5

STAY, TURN SIGNAL (NOT AVAILABLE)

33441-102-730

Unavailable

6

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

7

TURN SIGNAL ASSY., L. FR. This part replaces 33400-053-000.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33400-056-671.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33400-056-679.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33400-243-670.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33450-056-671.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33600-028-671.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33600-056-671.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33600-243-670.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33600-356-671.

33400-436-679

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33650-356-671.

33400-436-679

Unavailable

8

SOCKET, L. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33460-056-671

Unavailable

9

CABLE, R. TURN SIGNAL SUB (NOT AVAILABLE)

33714-300-610

Unavailable

10

SUB-WIRE, L. TURN SIGNAL (NOT AVAILABLE)

33715-300-610

Unavailable

11

BULB, TURN SIGNAL (6V17W) (STANLEY) This part replaces 34905-053-003.

34905-358-003

$5.42

11

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.42

12

BOLT, FR. TURN SIGNAL SET (NOT AVAILABLE)

90154-455-670

Unavailable

13

NUT, TURN SIGNAL LOCKING (NOT AVAILABLE)

90315-102-730

Unavailable

14

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-0B.

93101-06028-0B

$1.49

14

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-02.

93101-06028-0B

$1.49

14

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93100-06028-0B.

93101-06028-0B

$1.49

14

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.)

93101-06028-0B

$1.49

15

SCREW, PAN (5X8)

93500-05008-0A

$1.49

16

SCREW, OVAL (3X25)

93700-03025-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (10MM)

94001-10000-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, PLAIN (10MM)

94101-10000

$1.49

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

WASHER, SPRING (8MM)

94111-10000

$1.49
