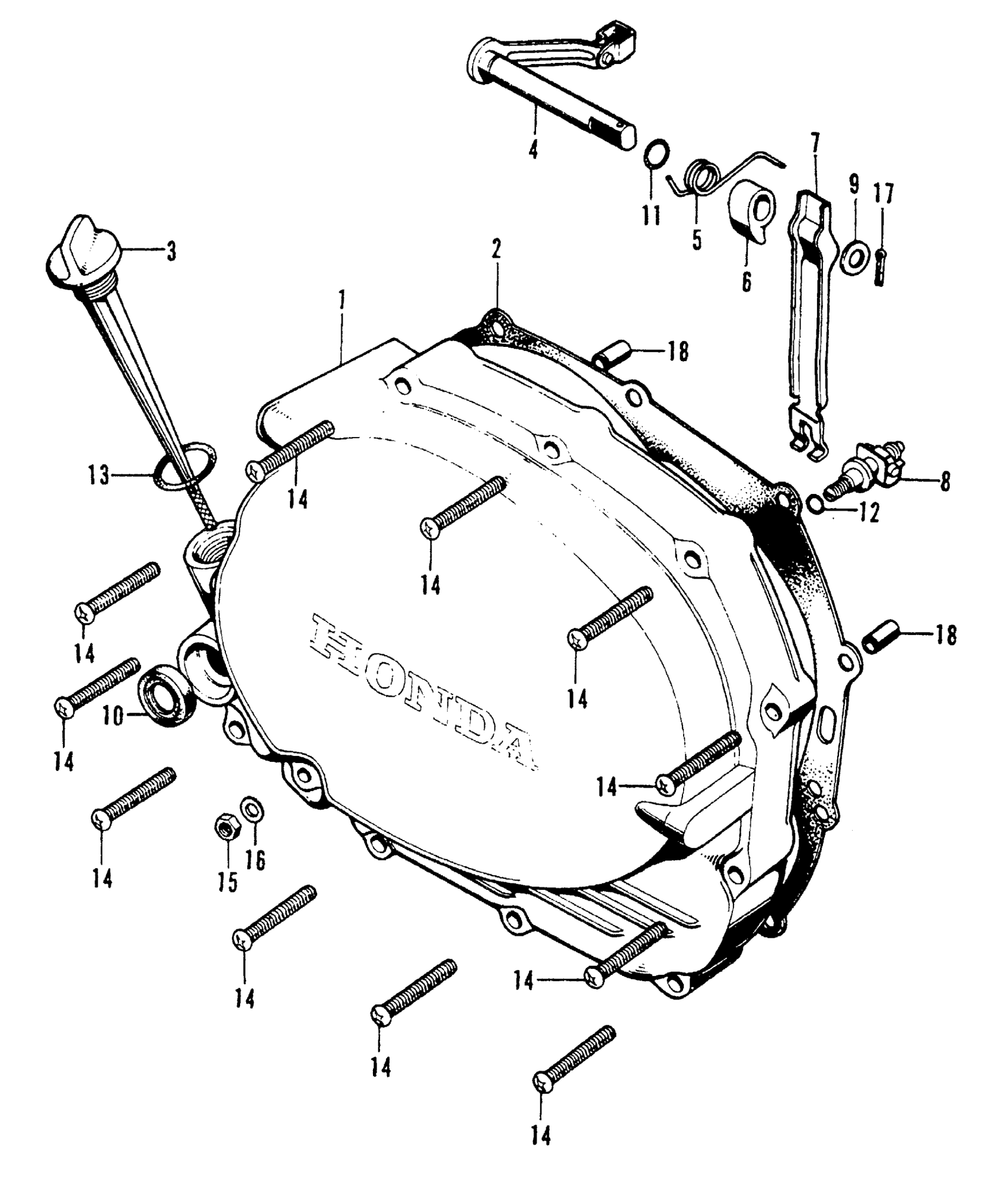

Honda XL100A MOTORCYCLE, JPN, VIN# XL100-1000001 RIGHT CRANKCASE COVER + CLUTCH LEVER K-K1 Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-330-000

Unavailable

2

GASKET, R. This part replaces 11393-KY0-600.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-000.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-010.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-020.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-306.

11393-K0K-A00

Unavailable

3

DIPSTICK, OIL This part replaces 15650-107-000.

15650-365-000

Unavailable

3

DIPSTICK, OIL

15650-365-000

Unavailable

4

LEVER, CLUTCH

22710-107-000

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-107-000

Unavailable

6

CAM, CLUTCH LIFTER

22821-107-000

Unavailable

7

LEVER, CLUTCH ADJUSTING

22830-107-000

Unavailable

8

SCREW, CLUTCH ADJUSTING

22831-107-000

Unavailable

9

WASHER, SHOE ADJUST CAM (NOT AVAILABLE)

90503-512-000

Unavailable

10

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91204-259-000.

91204-259-003

$5.60

10

OIL SEAL (16X28X7)

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

11

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

11

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

11

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

12

O-RING (6X2.2)

91301-704-000

$2.92

13

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

13

O-RING (18X3)

91307-035-000

$2.92

14

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

14

SCREW, PAN (6X40)

93500-06040-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

PIN, COTTER (2.0X15)

94201-20150

$1.49

18

PIN A, DOWEL (8X14)

94301-08140

$2.25
