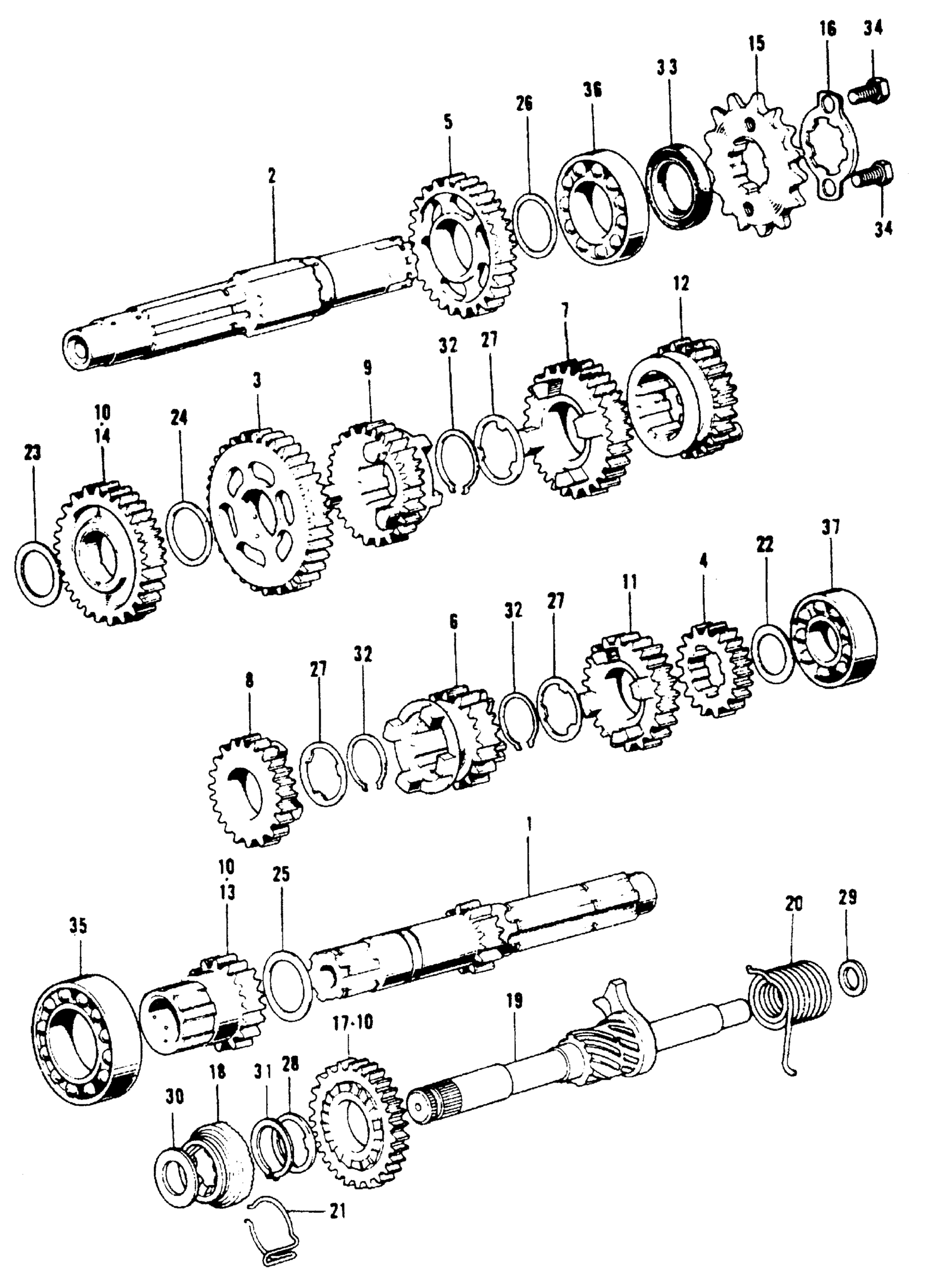

Honda XL100A (76) MOTORCYCLE, JPN, VIN# XL100-1200003 TRANSMISSION + KICK STARTER Diagram

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-331-010.

23211-383-003

Unavailable

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-355-000.

23211-383-003

Unavailable

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-383-000.

23211-383-003

Unavailable

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-000.

23221-107-020

Unavailable

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-010.

23221-107-020

Unavailable

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-383-000

Unavailable

GEAR, COUNTERSHAFT SECOND (18T)

23441-107-000

Unavailable

GEAR, COUNTERSHAFT SECOND (31T)

23451-331-671

Unavailable

GEAR, MAINSHAFT THIRD (22T) This part replaces 23461-331-670.

23461-427-000

Unavailable

GEAR, MAINSHAFT THIRD (22T)

23461-427-000

Unavailable

GEAR, COUNTERSHAFT THIRD (28T)

23471-331-670

$48.95

GEAR, MAINSHAFT FOURTH (25T)

23481-427-000

$70.13

GEAR, MAINSHAFT FOURTH (25T) This part replaces 23501-383-000.

23481-427-000

$70.13

GEAR, COUNTERSHAFT FOURTH (25T)

23491-331-000

Unavailable

GEAR SET, KICK STARTER (NOT AVAILABLE)

23500-383-000

Unavailable

GEAR, MAINSHAFT TOP (27T)

23501-331-010

Unavailable

GEAR, COUNTERSHAFT TOP (22T)

23511-331-670

Unavailable

GEAR, STARTER (19T) This part replaces 23520-107-000.

23520-383-000

Unavailable

GEAR, STARTER (19T)

23520-383-000

Unavailable

GEAR, IDLE STARTER (29T) (NOT AVAILABLE) This part replaces 23530-107-000.

23530-383-000

Unavailable

GEAR, IDLE STARTER (29T) (NOT AVAILABLE)

23530-383-000

Unavailable

SPROCKET, DRIVE (14T) This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

SPROCKET, DRIVE (14T) This part replaces 23801-107-760.

23801-KF9-505

$38.11

PLATE B, FIXING This part replaces 23811-028-000.

95014-92100

$1.49

PLATE B, FIXING

95014-92100

$1.49

PINION, KICK STARTER (30T)

28211-107-000

Unavailable

PINION, KICK STARTER (29T)

28211-383-000

Unavailable

RATCHET, KICK STARTER DRIVE

28221-107-010

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-355-000.

28250-365-000

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-365-000

Unavailable

SPRING, KICK STARTER

28261-107-000

Unavailable

SPRING, STARTER PINION FRICTION (NOT AVAILABLE)

28271-107-000

Unavailable

WASHER, THRUST (15MM)

90451-107-000

$1.49

WASHER, THRUST (15MM)

90451-365-000

$3.08

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

WASHER A, THRUST (20MM)

90453-107-000

$2.25

WASHER, THRUST (20MM)

90454-107-000

$1.80

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

WASHER, THRUST (25MM) (NOT AVAILABLE)

90458-107-000

Unavailable

WASHER, THRUST (12MM)

90459-107-000

$1.49

WASHER, THRUST (16MM)

90462-107-000

$2.11

CIRCLIP (25MM)

90601-107-000

$3.74

SET-RING (20MM)

90605-200-000

$2.92

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

OIL SEAL (20X34X7)

91201-030-015

Unavailable

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable
