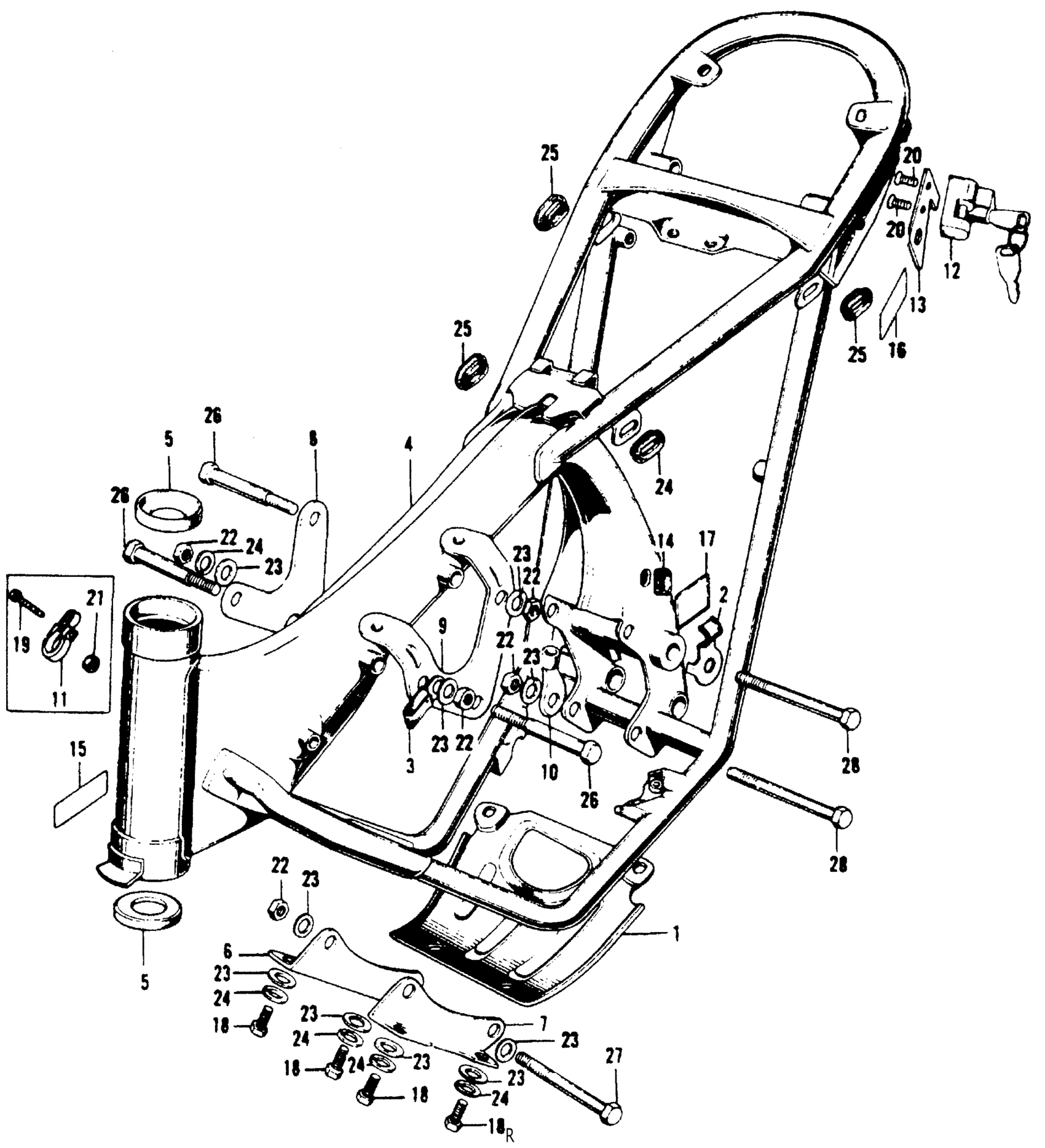

Honda XL100A (76) MOTORCYCLE, JPN, VIN# XL100-1200003 FRAME Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-331-670

Unavailable

2

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

3

CLIP, COMBINATION SWITCH WIRE (NOT AVAILABLE)

32908-107-700

Unavailable

4

FRAME *NH1* (BLACK)

50100-364-670B

Unavailable

4

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-364-770B

Unavailable

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING TOP BALL

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

6

PLATE, R. ENGINE HANGER *NH1* (BLACK)

50351-110-030B

Unavailable

7

PLATE, L. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50352-110-030B

Unavailable

8

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-107-000

Unavailable

9

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE) This part replaces 50354-107-010.

50354-330-000

Unavailable

9

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-330-000

Unavailable

10

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-107-000

Unavailable

11

CLAMP, TACHOMETER CABLE (NOT AVAILABLE)

50462-361-000

Unavailable

12

HOLDER ASSY., HELMET (NOT AVAILABLE)

50710-110-781

Unavailable

13

STAY, HELMET HOLDER (NOT AVAILABLE)

50715-364-670

Unavailable

14

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

15

PLATE, NAME

87125-041-680

$4.92

16

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

16

LABEL, MUFFLER CAUTION This part replaces 87506-045-000.

87504-028-670

$2.92

17

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-331-770

Unavailable

18

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

18

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

19

SCREW, PAN (4X25)

93500-04025-0A

$1.93

20

SCREW, FLAT (6X10) This part replaces 93600-06010.

93600-06010-0A

$3.90

20

SCREW, FLAT (6X10)

93600-06010-0A

$3.90

21

NUT, HEX. (4MM)

94001-04000-0S

$1.49

22

NUT, HEX. (8MM)

94030-08000

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

25

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

25

GROMMET A, AIR CLEANER HOUSING This part replaces 95020-52030.

17247-303-000

$8.13

26

BOLT, HEX. (8X70) This part replaces 95300-08070.

95301-08070-00

$2.47

26

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.47

27

BOLT, HEX. (8X90) (NOT AVAILABLE) This part replaces 95300-08090.

95300-08090-00

Unavailable

27

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

28

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.92

28

BOLT, HEX. (8X111)

95300-08111-00

$2.92
