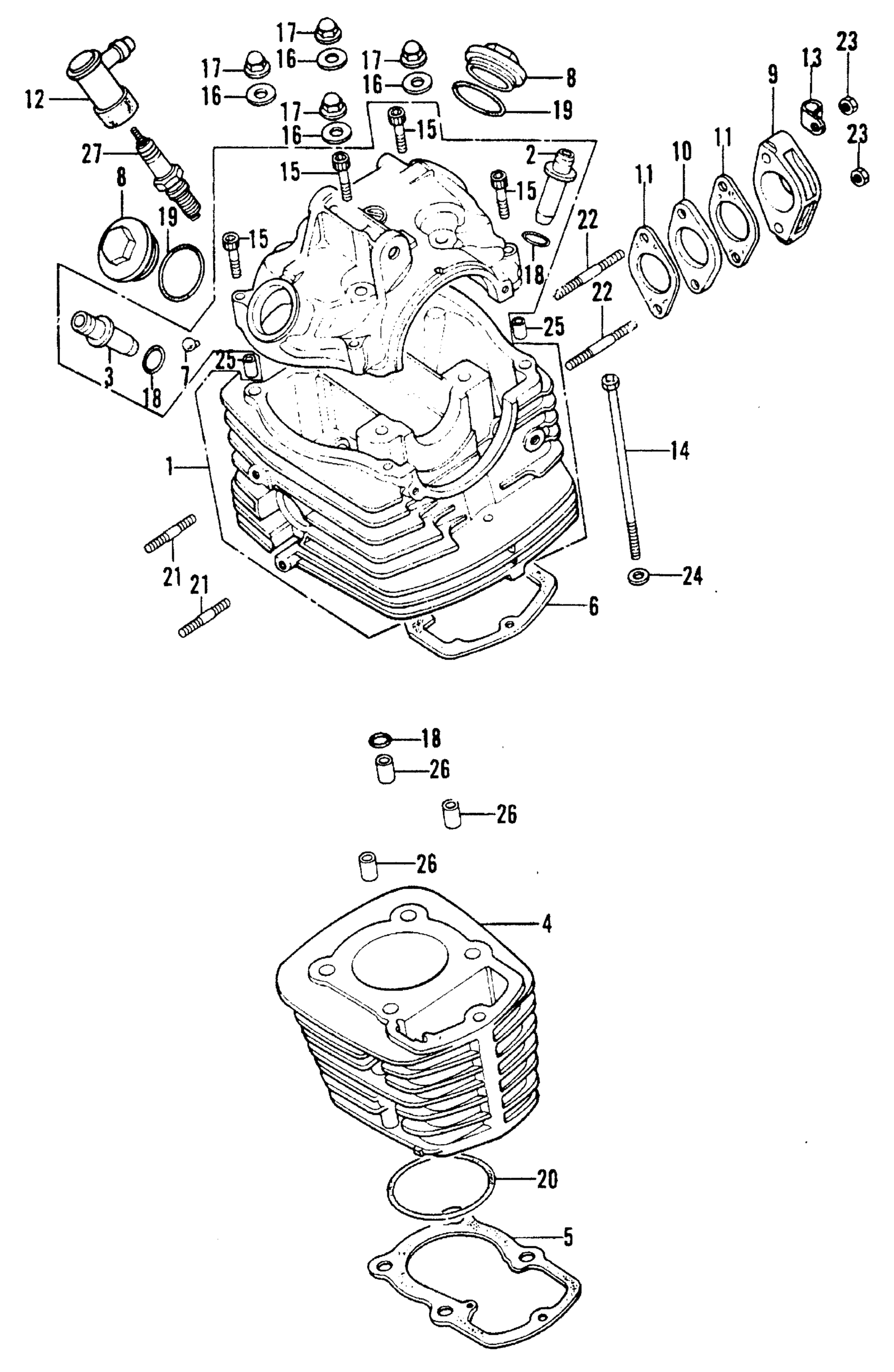

Honda XL100A (76) MOTORCYCLE, JPN, VIN# XL100-1200003 CYLINDER + CYLINDER HEAD 76 Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. (NOT AVAILABLE) This part replaces 12000-384-000.

12000-384-010

Unavailable

2

GUIDE, VALVE

12021-107-310

Unavailable

3

GUIDE, EX. VALVE This part replaces 12023-324-310.

12023-439-300

Unavailable

4

CYLINDER (NOT AVAILABLE)

12100-107-710

Unavailable

5

GASKET, CYLINDER

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-330-305.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-330-306.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-365-000.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-365-306.

12191-KAY-690

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-107-760.

12251-439-405

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-107-761.

12251-439-405

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-107-762.

12251-439-405

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-439-010.

12251-439-405

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-439-020.

12251-439-405

Unavailable

6

GASKET, CYLINDER HEAD

12251-439-405

Unavailable

7

RUBBER, OIL SEAL

12271-383-000

$2.92

8

CAP, VALVE ADJ.

12361-383-000

$6.43

9

FLANGE, CARBURETOR (NOT AVAILABLE)

16212-384-000

Unavailable

10

INSULATOR, CARBURETOR This part replaces 16213-107-000.

16213-107-306

Unavailable

10

INSULATOR, CARBURETOR

16213-107-306

Unavailable

11

GASKET, INSULATOR This part replaces 16229-107-000.

16229-107-306

Unavailable

11

GASKET, INSULATOR

16229-107-306

Unavailable

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

13

CLIP, IGNITION CABLE (NOT AVAILABLE)

32906-107-000

Unavailable

14

BOLT, HS (6MM)

90081-107-000

Unavailable

15

BOLT, SOCKET (6MM)

90081-383-000

$5.66

16

WASHER, SEALING (8MM)

90442-028-000

$1.77

17

NUT, CAP (8MM)

90443-107-000

$2.89

18

O-RING (10X1.6)

91301-200-000

$3.01

19

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

20

O-RING (57X2.5)

91308-500-000

$7.02

21

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

21

BOLT, STUD (6X28)

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

22

BOLT, STUD (6X60) (SOURCE: VINTAGE PARTS INC.) This part replaces 92700-06060.

92700-06060-0B

Unavailable

22

BOLT, STUD (6X60) (SOURCE: VINTAGE PARTS INC.)

92700-06060-0B

Unavailable

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

PIN A, DOWEL (8X14)

94301-08140

$2.25

26

PIN A, DOWEL (10X14)

94301-10140

$2.28
