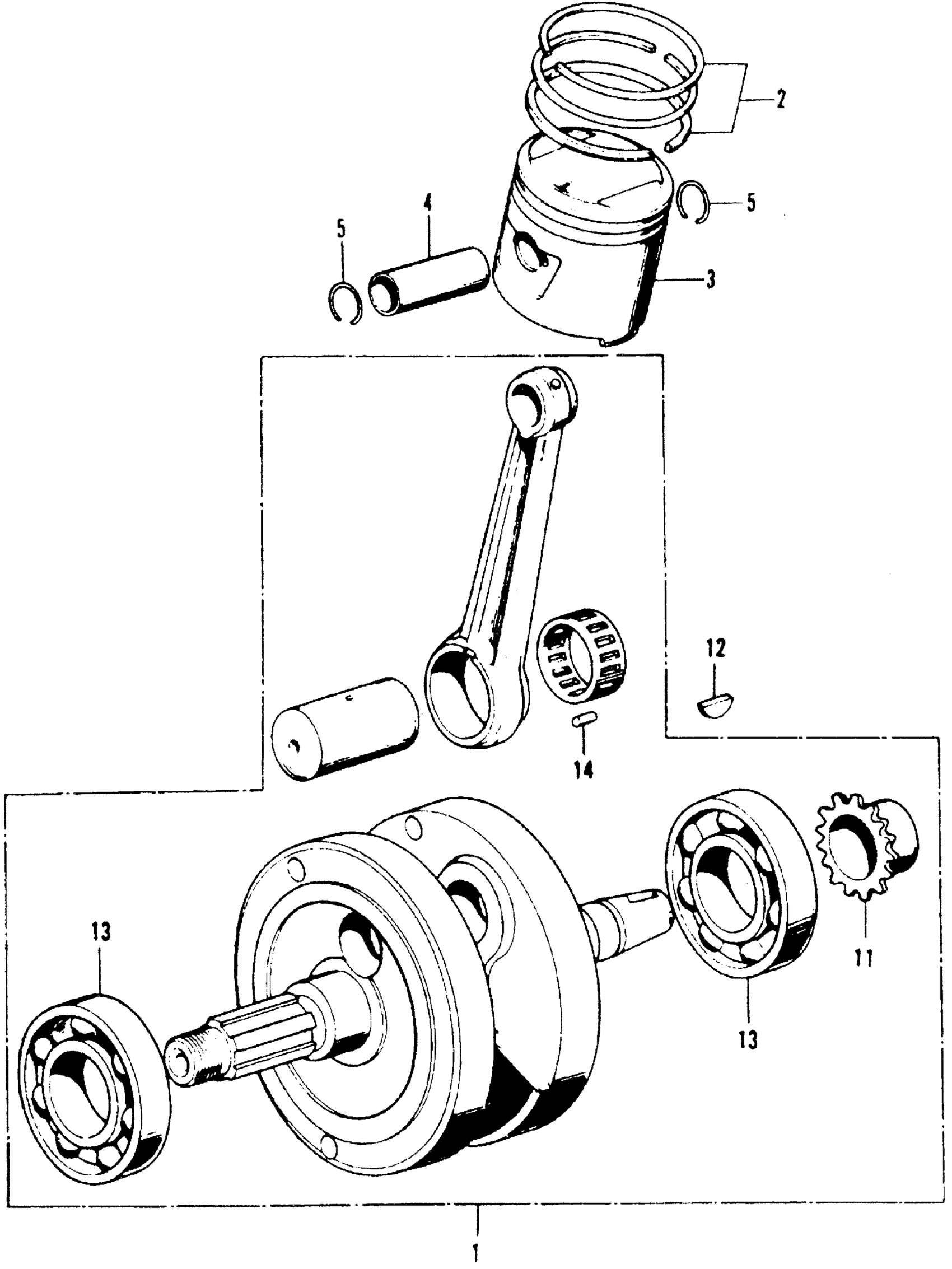

Honda XL100A (76) MOTORCYCLE, JPN, VIN# XL100-1200003 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-384-000.

13000-439-010

Unavailable

1

CRANKSHAFT This part replaces 13000-439-000.

13000-439-010

Unavailable

1

CRANKSHAFT

13000-439-010

Unavailable

2

RING SET, PISTON (STD)

13011-107-760

Unavailable

2

RING SET, PISTON (OS 0.25)

13021-107-760

Unavailable

2

RING SET, PISTON (OS 0.50)

13031-107-760

$36.93

2

RING SET, PISTON (0.75)

13041-107-760

$41.54

2

RING SET, PISTON (1.00)

13051-107-760

Unavailable

3

PISTON (STD)

13101-384-000

$41.92

3

PISTON (OS 0.25)

13102-384-000

Unavailable

3

PISTON (OS 0.50)

13103-384-000

Unavailable

3

PISTON (0.75)

13104-384-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-384-000

Unavailable

4

PIN, PISTON

13111-384-000

$19.77

5

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

11

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

11

SPROCKET, TIMING (16T)

14311-958-000

$41.06

12

KEY, SPECIAL WOODRUFF (25X18)

94401-25180

$1.49

13

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-071-000.

91001-071-003

$46.05

13

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-003.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-004.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-008.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-013.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-014.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-018.

91009-HC0-003

$31.43

13

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

14

ROLLER (3X10) (NOT AVAILABLE)

96220-30100

Unavailable
