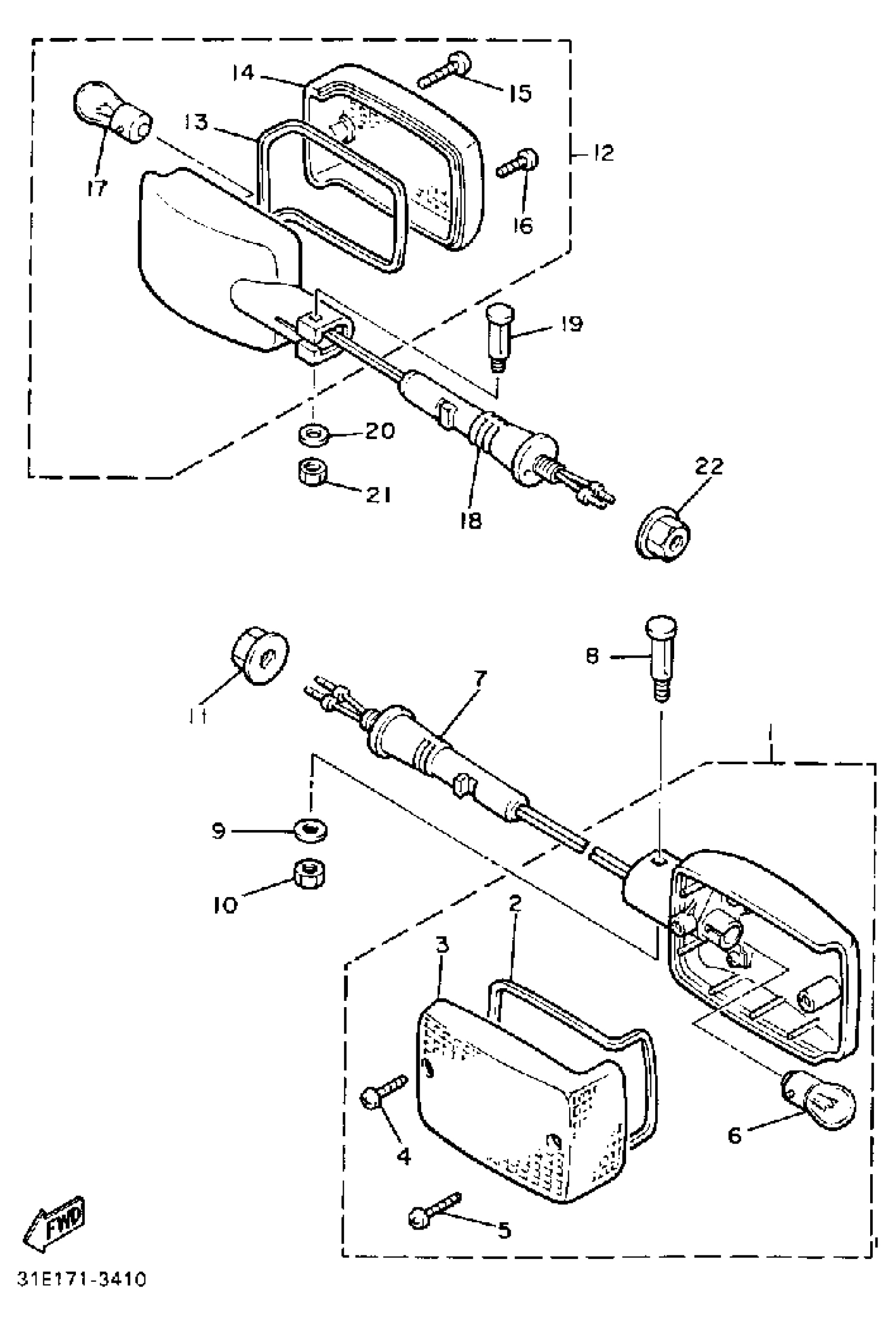

Yamaha XJ900RK (SECA) 35H 1983 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER ASSEMBLY (31E-83303-70)

31E-83301-70-00

Unavailable

2

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

3

LENS, FLASHER

5G2-83312-00-00

$15.49

4

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

5

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

6

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

7

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

8

. BOLT, FLASHER 1

4G0-83317-00-00

Unavailable

9

WASHER, PLAIN (646)

92990-05600-00

$0.80

10

NUT, HEXAGON (663)

95380-05600-00

$8.49

11

UNAVAILABLE IN PRICE BOOK

94702-12500-00

Unavailable

12

FRONT FLASHER ASSEMBLY (31E-83303-70)

31E-83301-70-00

Unavailable

13

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

14

LENS, FLASHER

5G2-83312-00-00

$15.49

15

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

16

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

17

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

18

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

19

. BOLT, FLASHER 1

4G0-83317-00-00

Unavailable

20

WASHER, PLAIN (646)

92990-05600-00

$0.80

21

NUT, HEXAGON (663)

95380-05600-00

$8.49

22

NUT(3GG)

90179-12588-00

Unavailable
