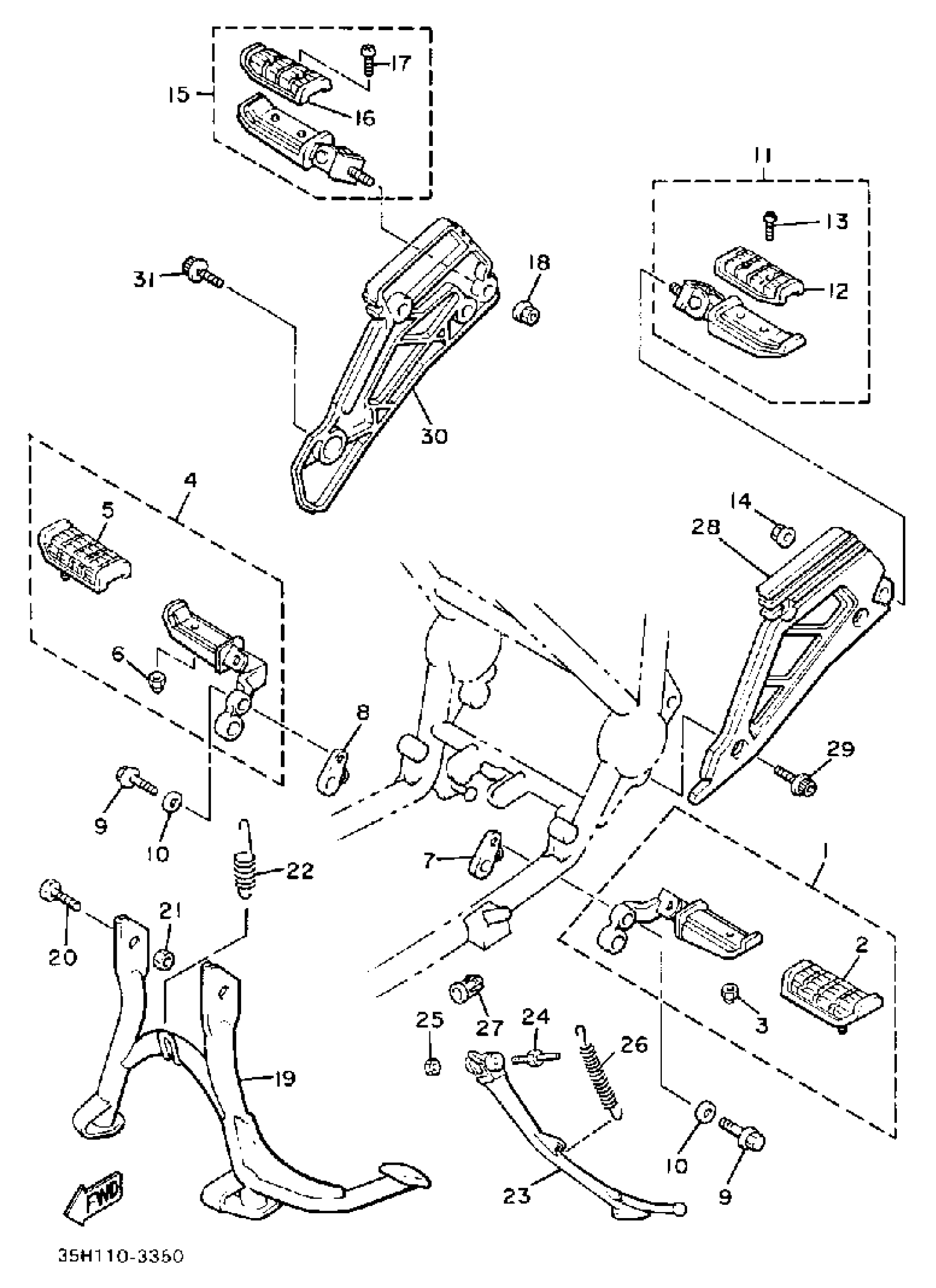

Yamaha XJ900RK (SECA) 35H 1983 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSEMBLY L

31A-27410-00-00

Unavailable

2

COVER, FOOTREST

22N-27413-00-00

$48.99

3

NUT, SELF-LOCKING

95617-06100-00

$8.49

4

FRONT FOOTREST ASSEMBLY R (R.H.) (31A-27420-00-39)

31A-27420-00-00

Unavailable

5

COVER, FOOTREST

22N-27413-00-00

$48.99

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

BRACKET, FOOTREST1

31A-27412-01-00

Unavailable

8

BRACKET, FOOTREST 2

31A-27422-00-00

Unavailable

9

BOLT, FLANGE

95817-10035-00

$9.49

10

WASHER, PLATE (4X7)

90201-105A2-00

$8.49

11

RR FOOTREST ASSEMBLY 1

31A-27430-01-00

Unavailable

12

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

13

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

14

NUT, FLANGE(3BM)

95704-10500-00

$4.29

15

RR FOOTREST ASSEMBLY 2 (31A-27440-00)

31A-27440-01-00

Unavailable

16

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

17

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

18

NUT, FLANGE(3BM)

95704-10500-00

$4.29

19

STAND, MAIN

31A-27111-00-R4

Unavailable

20

BOLT

90109-10606-00

Unavailable

21

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

22

SPRING, TENSION

90506-40348-00

Unavailable

23

STAND, SIDE

31E-27311-00-R4

Unavailable

24

BOLT

90109-10473-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

SPRING (460)

90507-29009-00

Unavailable

27

GUIDE, SIDE STAND

5G2-27351-00-00

Unavailable

28

BRACKET 2

31A-27442-00-00

Unavailable

29

BOLT,SOCKET

91314-10025-00

Unavailable

30

BRACKET 3

31A-27443-00-00

Unavailable

31

BOLT,SOCKET

91314-10020-00

Unavailable
