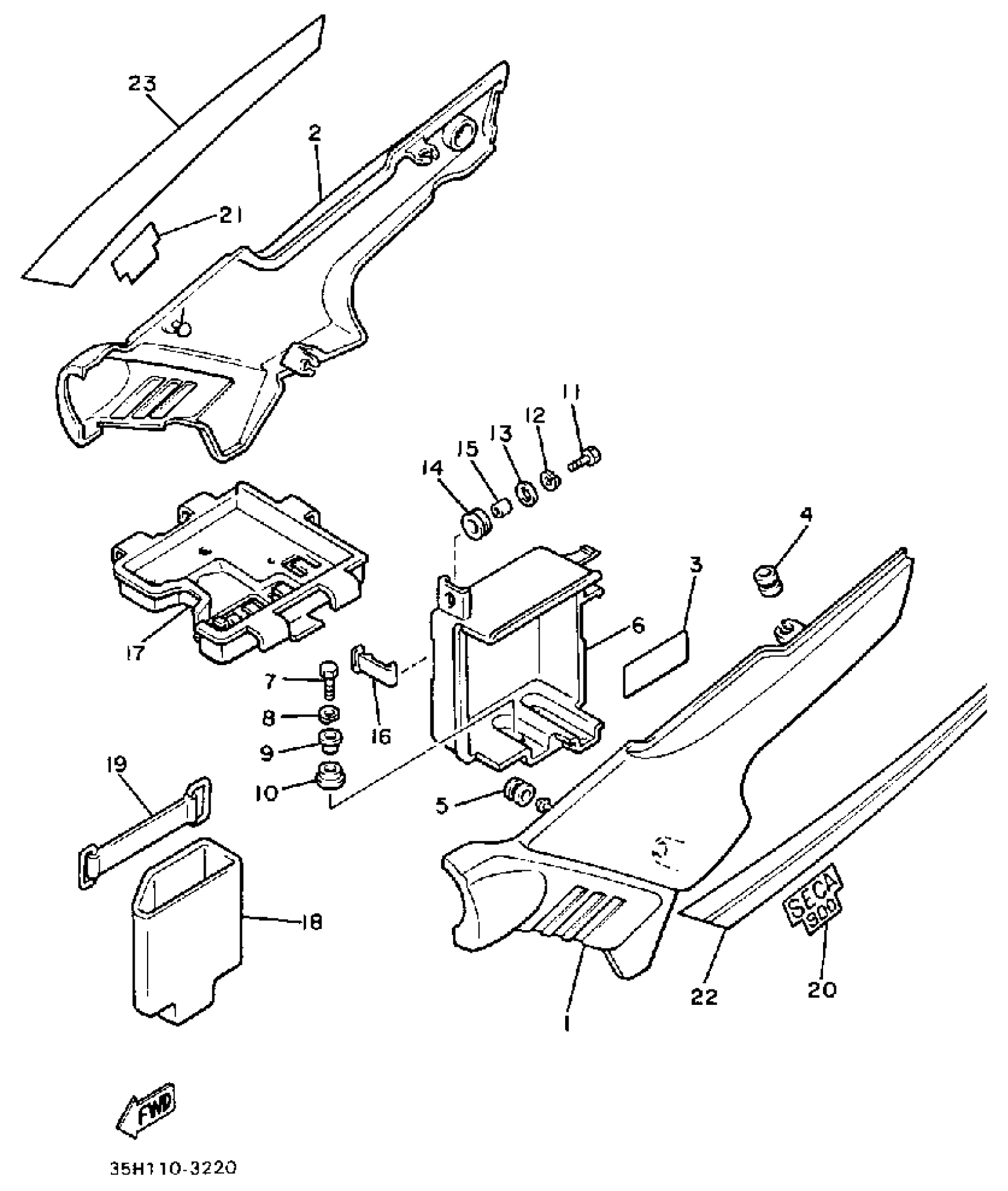

Yamaha XJ900RK (SECA) 35H 1983 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1 (31A-21711-00-1X)

31A-21711-01-1X

Unavailable

2

COVER, SIDE 2 (31A-21721-00-1X)

31A-21721-01-1X

Unavailable

3

PLATE, SPEC

35H-21683-20-00

Unavailable

4

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

5

GROMMET(41Y)

90480-01401-00

$8.49

6

BOX

31A-21240-00-00

Unavailable

7

BOLT (682)

97013-08025-00

$8.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

COLLAR (21X)

90387-093H1-00

Unavailable

10

DAMPER

4H7-21746-00-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE

90201-06747-00

$8.49

14

GROMMET (2N3)

90480-16233-00

$8.49

15

COLLAR

90387-06113-00

$11.49

16

HOOK, BANK

4H7-2175R-00-00

Unavailable

17

BOX

31A-21170-00-00

Unavailable

18

BOX

31A-21245-00-00

Unavailable

19

BAND, BATTERY

133-82131-00-00

Unavailable

20

EMBLEM 1

35H-21781-00-00

Unavailable

21

EMBLEM 2

35H-21782-00-00

Unavailable

22

GRAPHIC

31A-2173E-30-00

Unavailable

23

GRAPHIC

31A-2173F-30-00

Unavailable
