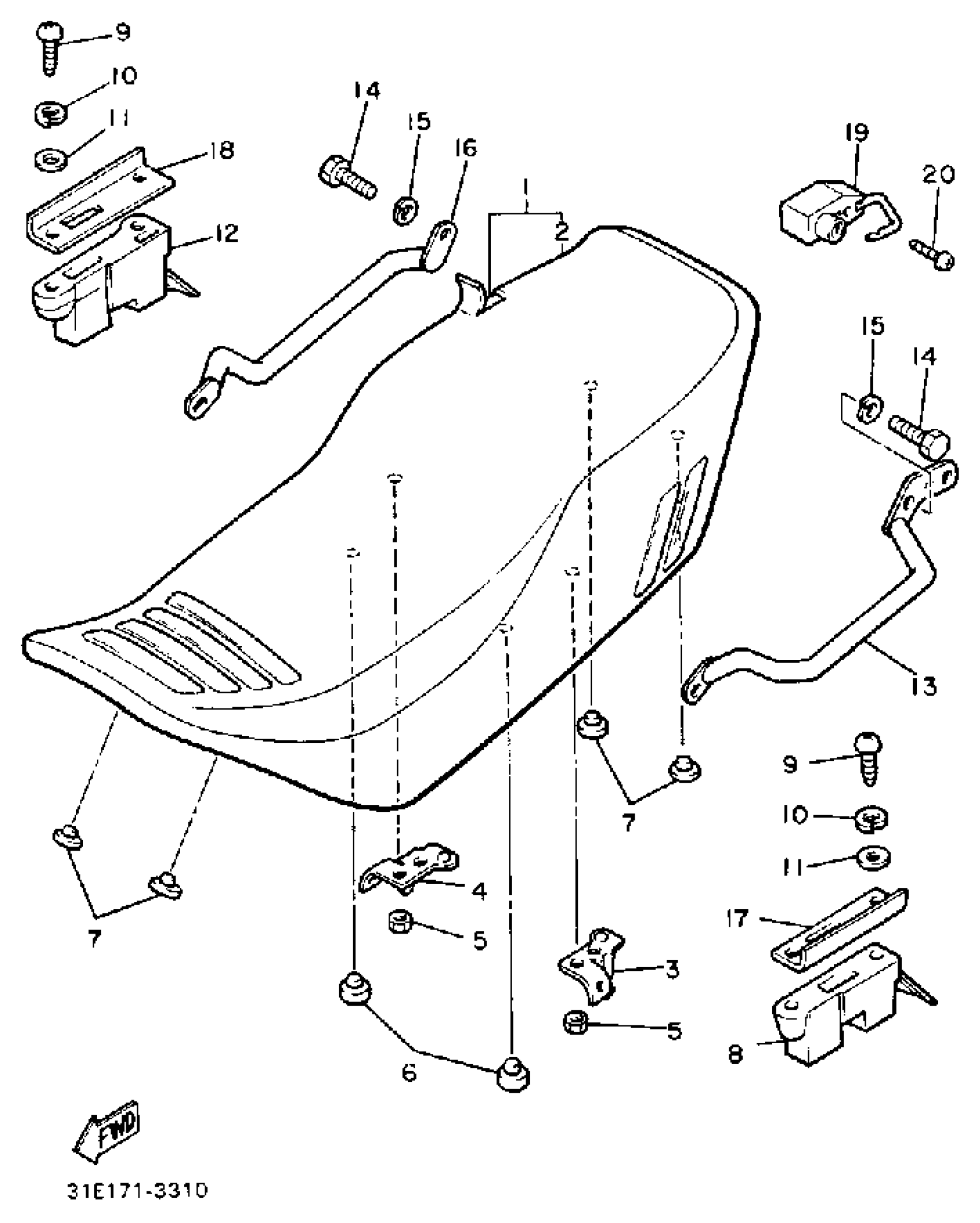

Yamaha XJ900RK (SECA) 35H 1983 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

31A-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

31A-24731-00-00

Unavailable

3

BRACKET, SEAT

31A-24728-00-00

Unavailable

4

BRACKET, SEAT

31A-24738-00-00

Unavailable

5

NUT, FLANGE(7NB)

95780-06500-00

$1.88

6

STOPPER MAIN STAND

278-27114-00-00

$7.90

7

PAD, SEAT

116-24741-A0-00

Unavailable

8

SEAT LOCK ASSEMBLY (31A-24705-00)

41Y-24705-01-00

Unavailable

9

SCREW PAN HEAD

98580-06020-00

$4.89

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

12

SEAT LEVER ASSEMBLY

31A-24760-00-00

Unavailable

13

HANDLE, STANDING

31A-21165-00-00

Unavailable

14

BOLT, HEXAGON

97017-08016-00

$5.79

15

WASHER(JN5)

92907-08100-00

$5.59

16

STAY, REAR

31A-21275-00-00

Unavailable

17

PLATE GUIDE 1

31A-2476A-00-00

Unavailable

18

PLATE GUIDE 2

31A-2476E-00-00

Unavailable

19

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

20

SCREW (4G1)

90149-06154-00

Unavailable
