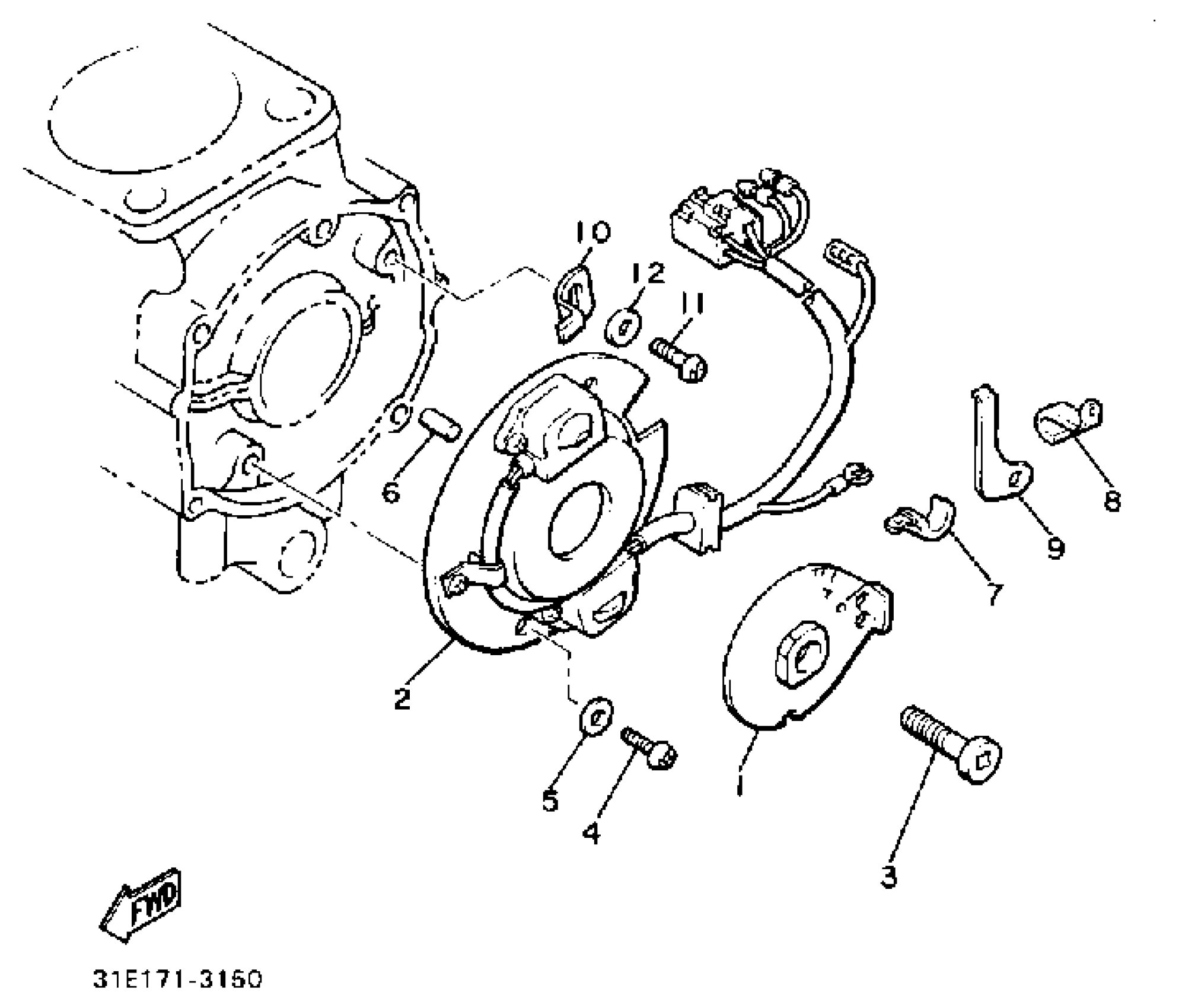

Yamaha XJ900RK (SECA) 35H 1983 PICKUP COIL GOVERNOR Diagram

#

Description
Price

1

ROTOR

1NW-81673-11-00

Unavailable

2

BASE, PICKUP

31A-81671-10-00

Unavailable

3

BOLT, SOCKET

91317-08030-00

$5.75

4

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

5

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

6

PIN, DOWEL (278)

93604-08071-00

$5.75

7

CLAMP(51Y)

90465-08277-00

Unavailable

8

CLAMP(4KM)

90465-08369-00

Unavailable

9

CLAMP (4K0)

90465-12160-00

$2.41

10

PLATE, TIMING

4H7-81632-00-00

Unavailable

11

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73
