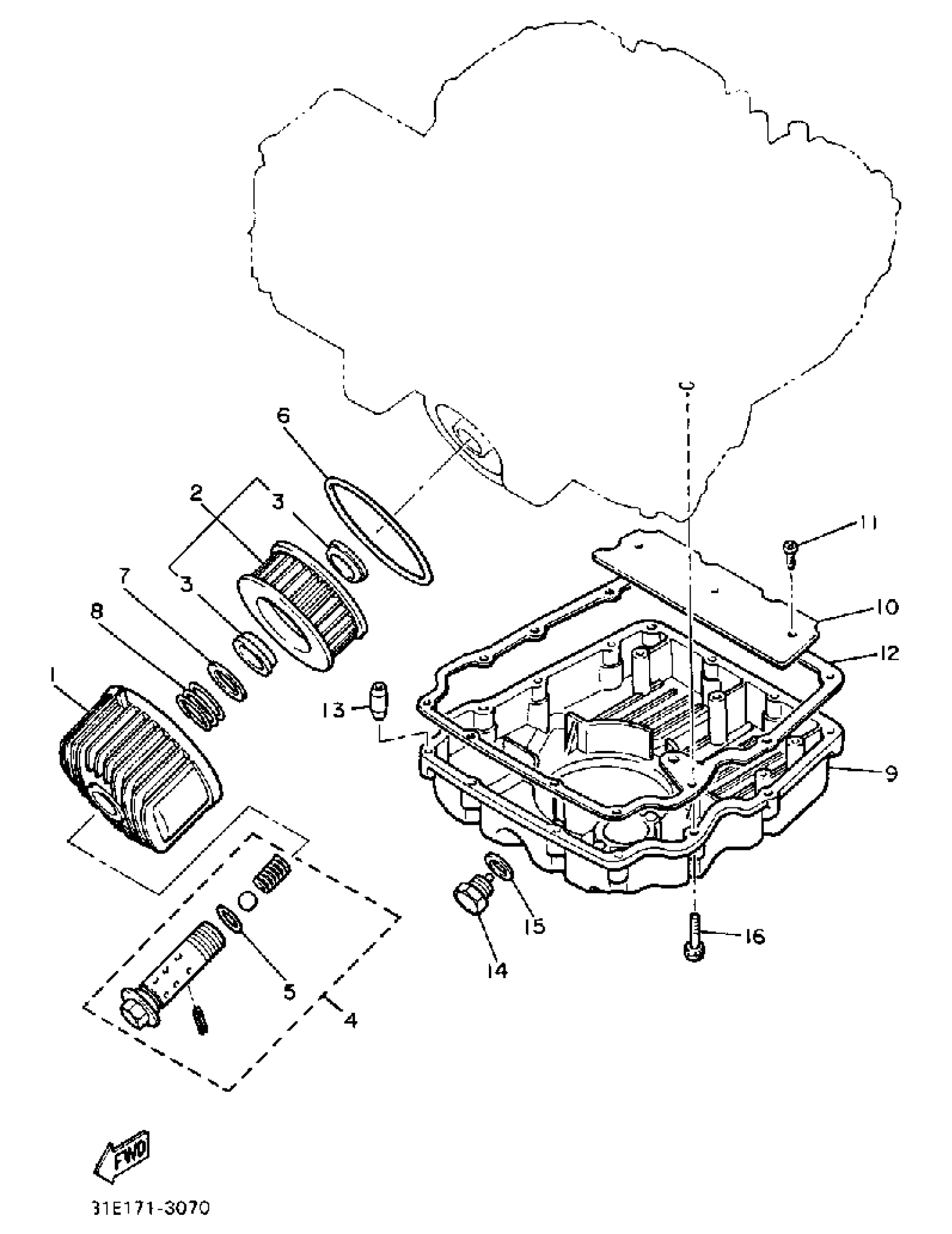

Yamaha XJ900RK (SECA) 35H 1983 OIL FILTER Diagram

COVER, OIL ELEMENT

4K0-13447-00-00

Unavailable

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

GROMMET (1L9)

90480-23193-00

Unavailable

BY-PASS VALVE ASSEMBLY

4W5-13340-00-00

Unavailable

O-RING (26H)

93210-16629-00

$7.49

O-RING(1KF)

93210-87723-00

Unavailable

WASHER, PLATE (1L9)

90201-21608-00

$8.49

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

COVER, STRAINER

31A-13417-00-00

Unavailable

PLATE, BAFFLE LOWER

4H7-13337-00-00

$7.99

SCREW PAN HEAD

98580-06010-00

$8.49

GASKET, STRAINER COVER

4BB-13414-00-00

$30.99

PIN, DOWEL(3XW)

91808-16023-00

$8.49

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

GASKET

214-11198-01-00

$3.17

BOLT, SOCKET

91314-06030-00

Unavailable
