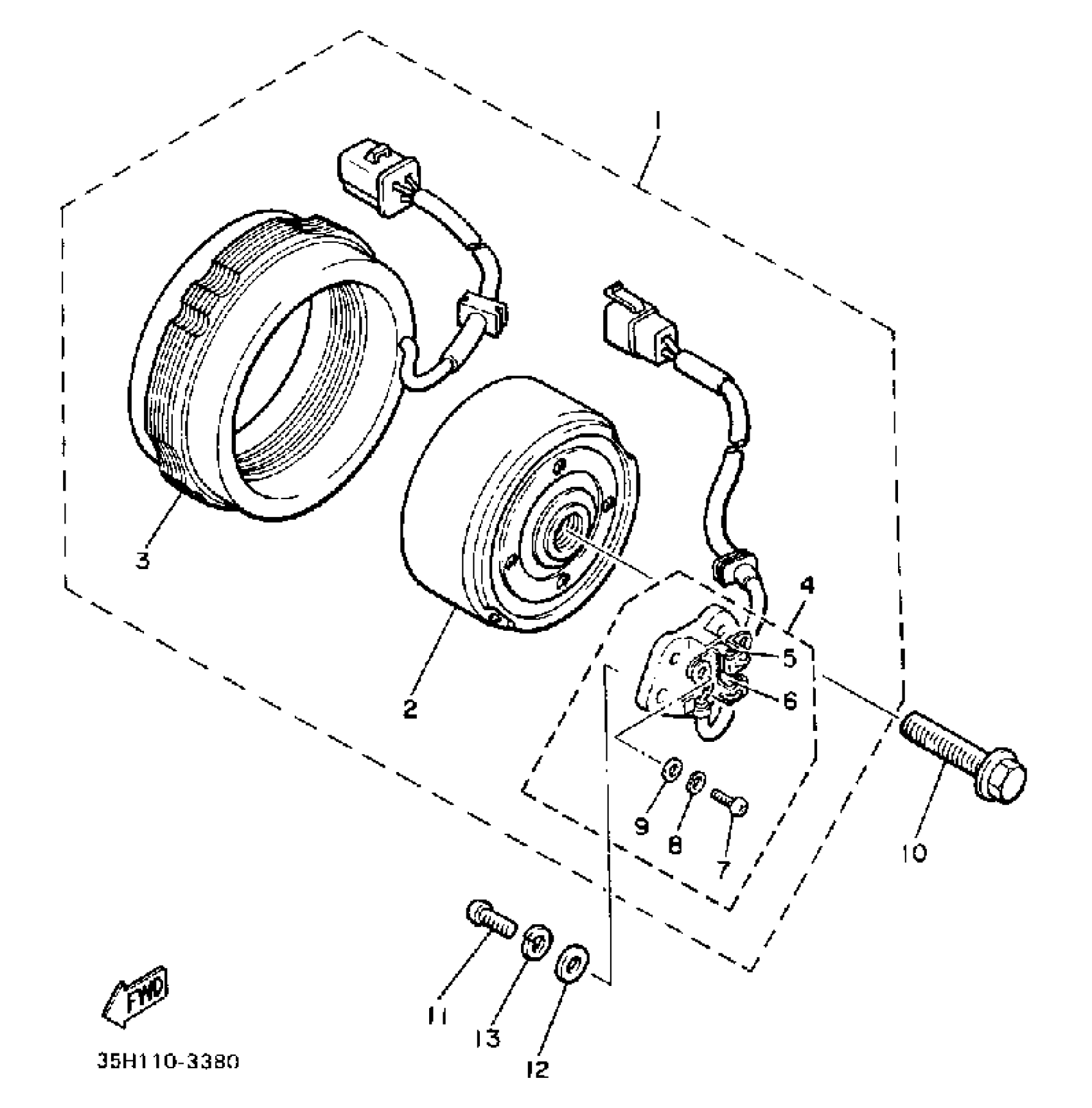

Yamaha XJ900RK (SECA) 35H 1983 GENERATOR Diagram

#

Description
Price

1

AC GENERATOR ASSEMBLY

4H7-81600-10-00

Unavailable

2

. ROTOR ASSEMBLY

4H7-81650-10-00

Unavailable

3

. STATOR ASSEMBLY

4H7-81610-10-00

Unavailable

4

. BRUSH HOLDER ASSEMBLY

4H7-81619-10-00

Unavailable

5

.. BRUSH 1

46X-81611-10-00

Unavailable

6

.. BRUSH 2

4G0-81612-10-00

Unavailable

7

SCREW, PAN HEAD

98511-04012-00

Unavailable

8

WASHER, PLAIN (646)

92990-04600-00

$0.86

9

WASHER, PLAIN (646)

92990-04600-00

$0.86

10

BOLT, WASHER BASED (4H7)

90105-10152-00

$8.94

11

SCREW, PAN

98507-06014-00

$5.76

12

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

13

WASHER, SPRING

92995-06100-00

$2.95
