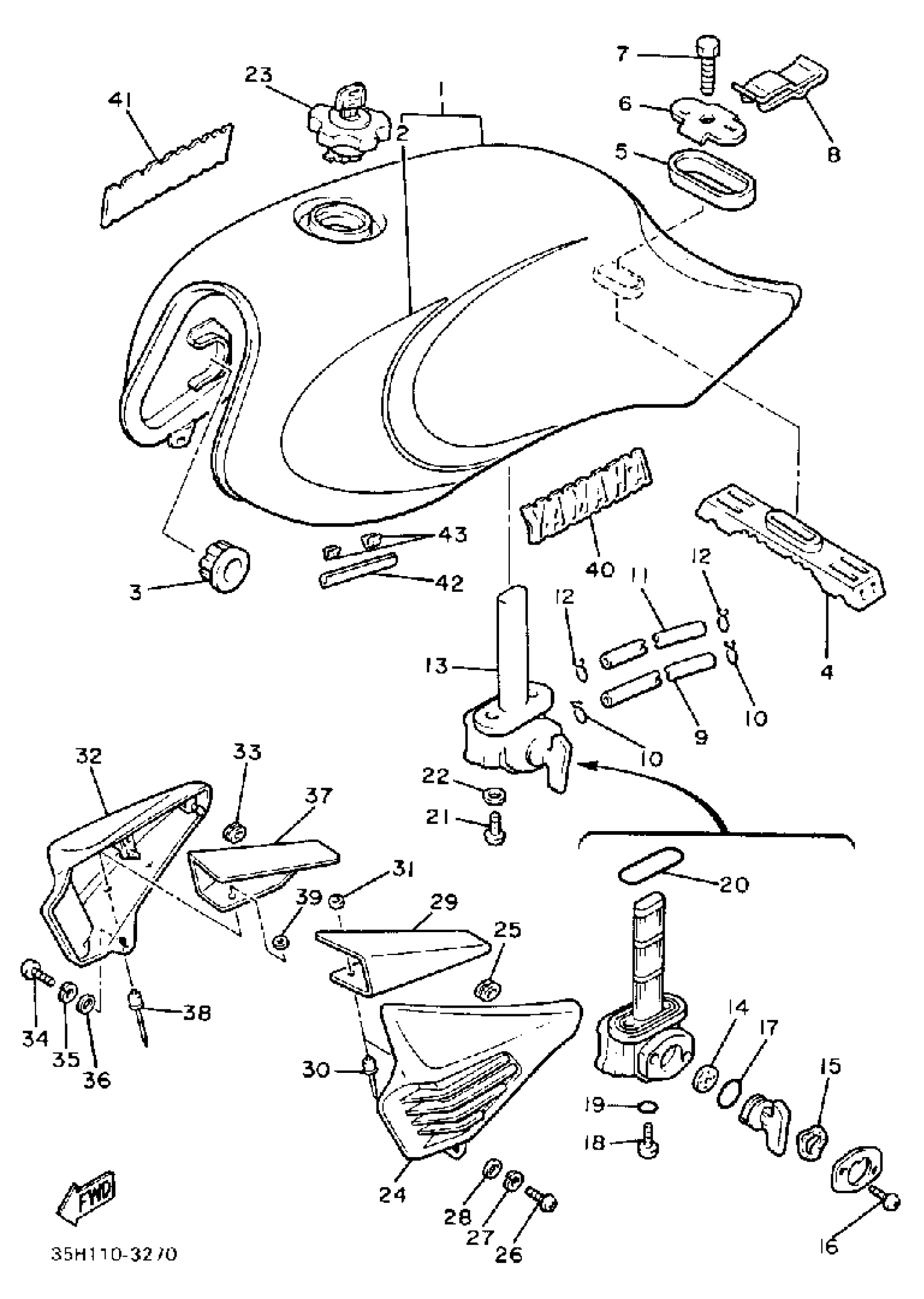

Yamaha XJ900RK (SECA) 35H 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

31A-24110-00-09

Unavailable

2

. GRAPHIC SET

31A-24240-30-00

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

31A-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

6

WASHER, SPECIAL

4K0-24186-00-00

Unavailable

7

BOLT

90109-08579-00

Unavailable

8

CLIP

4K0-2411M-00-00

Unavailable

9

HOSE (L400)

90445-116K9-00

$24.99

10

CLIP

90467-100A1-00

$7.49

11

HOSE (L770)

90445-090G9-00

$33.99

12

CLIP (16G)

90467-08021-00

$8.49

13

FUEL COCK ASSY 1

31A-24500-02-00

$237.99

14

VALVE

16G-24523-00-00

$28.99

15

. WASHER, WAVE

16G-24518-00-00

Unavailable

16

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

17

O-RING

2G2-24534-00-00

Unavailable

18

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

19

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

20

O-RING

2G2-24512-00-00

Unavailable

21

SCREW 366241430000

90149-06008-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

CAP ASSY

11H-24602-10-00

Unavailable

24

BODY, FRONT LOWER 1

31A-2835J-00-6M

Unavailable

25

GROMMET(41Y)

90480-01401-00

Unavailable

26

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

27

WASHER, SPRING

92907-06100-00

Unavailable

28

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

29

PANEL 1

31A-2835U-00-00

Unavailable

30

RIVET, BLIND

90267-40029-00

Unavailable

31

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

32

BODY, FRONT LOWER 2

31A-2835K-00-6M

Unavailable

33

GROMMET(41Y)

90480-01401-00

Unavailable

34

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

35

WASHER, SPRING

92907-06100-00

Unavailable

36

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

37

PANEL 2

31A-2835V-00-00

Unavailable

38

RIVET, BLIND

90267-40029-00

Unavailable

39

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

40

EMBLEM 1

31A-24161-00-00

Unavailable

41

EMBLEM 2

31A-24162-00-00

Unavailable

42

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

43

CLIP

90468-03063-00

Unavailable
