- XJ900RK (SECA) 35H 1983
FRONT FORK

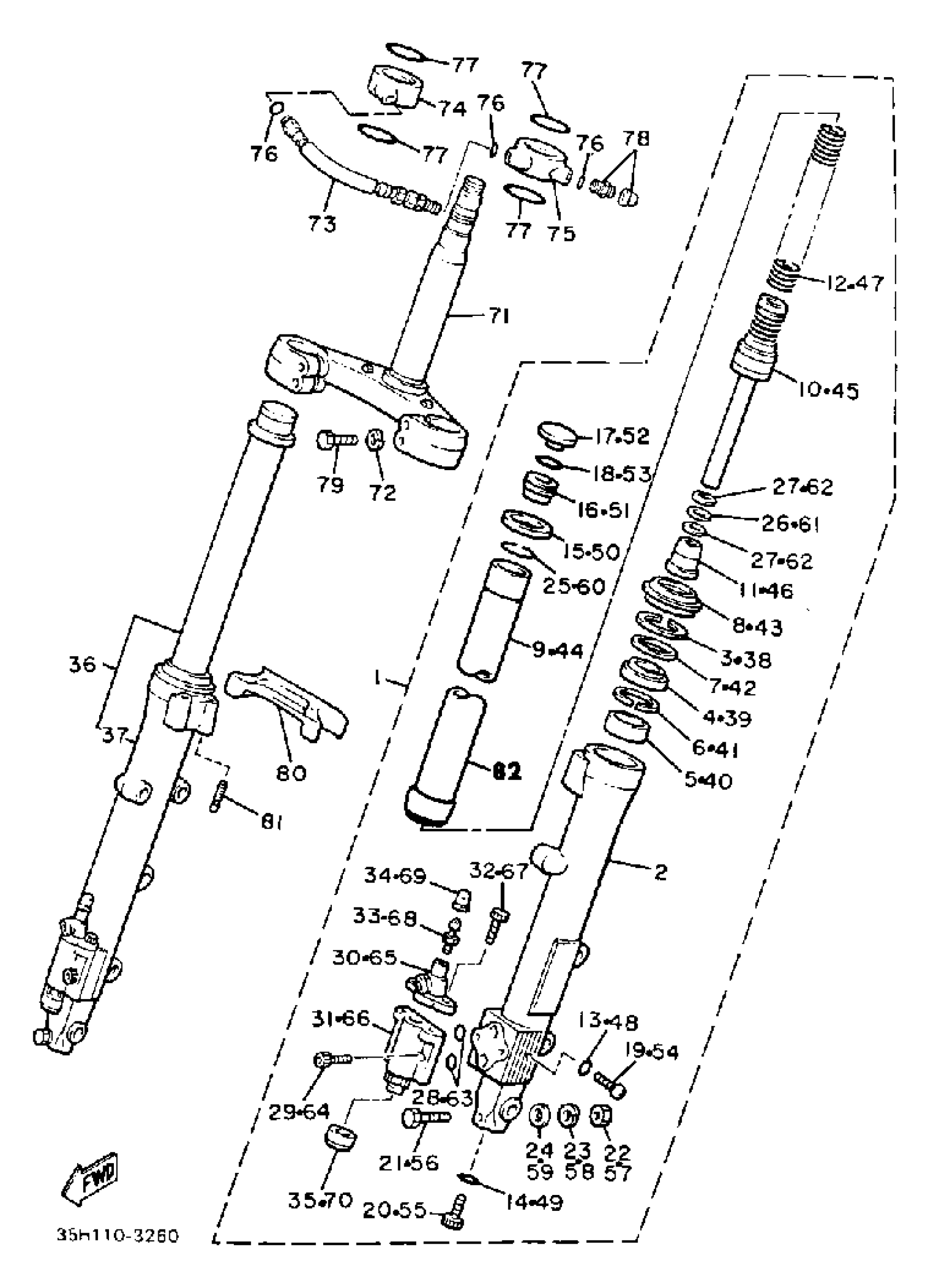

Yamaha XJ900RK (SECA) 35H 1983 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
31A-23102-01-00
Unavailable
2
. TUBE, OUTER 1
31A-23126-31-00
Unavailable
7
WASHER, OIL SEAL
31A-23146-30-00
Unavailable
8
SEAL, DUST
31A-23144-30-00
Unavailable
9
. INNER TUBE 1
31A-23110-31-00
Unavailable
10
. CYLINDER, FRONT FORK
31A-23170-30-00
Unavailable
11
. SPINDLE, TAPER
22N-23173-00-00
Unavailable
12
. SPRING, FRONT FORK (31A-23141-30)
31A-23141-31-00
Unavailable
15
WASHER
2H7-23163-00-00
Unavailable
16
. BOLT, CAP
31A-23111-31-00
Unavailable
17
CAP, FRONT FORK
26H-23168-00-00
Unavailable
18
O-RING
1W1-23114-L0-00
Unavailable
19
. UNAVAILABLE IN PRICE BOOK (122-23119-01)
4H7-23119-01-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
21
BOLT, HEXAGON
97017-08060-00
Unavailable
22
NUT(6L2)
95333-08600-00
Unavailable
23
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
24
.. WASHER, PLATE
92990-08600-00
Unavailable
25
. RING, SNAP
15R-23153-00-00
Unavailable
26
. WASHER
22N-2319L-00-00
Unavailable
27
. SPRING, VALVE
22N-2319M-00-00
Unavailable
28
O-RING
22N-23147-00-00
Unavailable
29
BOLT, SOCKET
91314-06016-00
Unavailable
30
. BRAKE PLUNGER ASSEMBLY 1
26H-2319F-00-00
Unavailable
31
. DAMPER PISTON ASSEMBLY
26H-2319E-00-00
Unavailable
32
BOLT, SOCKET
91314-05012-00
Unavailable
33
. BREATHER, AIR (26H-2319V-00-00)
1TX-2319V-00-00
Unavailable
34
. CAP
26H-2319W-00-00
Unavailable
35
. CAP
22N-2319U-00-00
Unavailable
36
FRONT FORK ASSEMBLY R
31A-23103-01-00
Unavailable
37
TUBE, OUTER 2
31A-23136-30-00
Unavailable
42
WASHER, OIL SEAL
31A-23146-30-00
Unavailable
43
SEAL, DUST
31A-23144-30-00
Unavailable
44
. INNER TUBE 1
31A-23110-31-00
Unavailable
45
. CYLINDER, FRONT FORK
31A-23170-30-00
Unavailable
46
. SPINDLE, TAPER
22N-23173-00-00
Unavailable
47
. SPRING, FRONT FORK (31A-23141-30)
31A-23141-31-00
Unavailable
50
WASHER
2H7-23163-00-00
Unavailable
51
. BOLT, CAP
31A-23111-31-00
Unavailable
52
CAP, FRONT FORK
26H-23168-00-00
Unavailable
53
O-RING
1W1-23114-L0-00
Unavailable
54
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
55
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
56
BOLT, HEXAGON
97017-08060-00
Unavailable
57
NUT(6L2)
95333-08600-00
Unavailable
58
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
59
.. WASHER, PLATE
92990-08600-00
Unavailable
60
. RING, SNAP
15R-23153-00-00
Unavailable
61
. WASHER
22N-2319L-00-00
Unavailable
62
. SPRING, VALVE
22N-2319M-00-00
Unavailable
63
O-RING
22N-23147-00-00
Unavailable
64
BOLT, SOCKET
91314-06016-00
Unavailable
65
. BRAKE PLUNGER ASSEMBLY 1
26H-2319F-00-00
Unavailable
66
. DAMPER PISTON ASSEMBLY
26H-2319E-00-00
Unavailable
67
BOLT, SOCKET
91314-05012-00
Unavailable
68
. BREATHER, AIR (26H-2319V-00-00)
1TX-2319V-00-00
Unavailable
69
. CAP
26H-2319W-00-00
Unavailable
70
. CAP
22N-2319U-00-00
Unavailable
71
UNDER BRACKET COMP
31A-23340-31-00
Unavailable
72
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
73
HOSE, AIR
31A-2318F-30-00
Unavailable
74
JOINT, AIR
11T-2319A-00-00
Unavailable
75
JOINT, AIR 1
31A-2318A-30-00
Unavailable
76
O-RING
3J2-23147-00-00
Unavailable
77
O-RING
11T-23188-00-00
Unavailable
78
AIR VALVE COMP.
4V4-23190-L0-00
Unavailable
79
BOLT
97014-08040-00
Unavailable
80
BRACE, FORK
31A-2313A-30-00
Unavailable
81
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
82
PISTON, FRONT FORK
31A-23171-30-00
Unavailable
