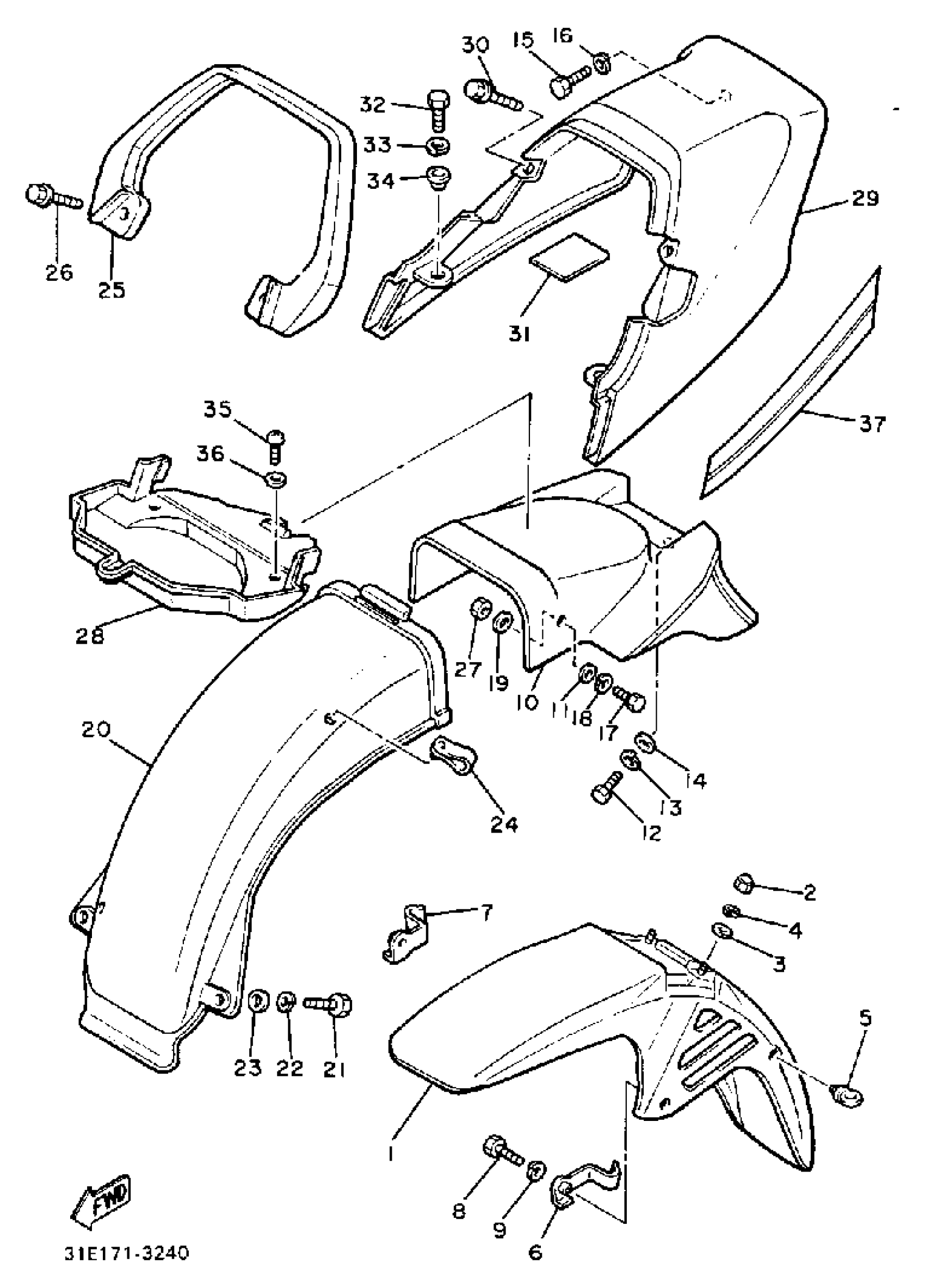

Yamaha XJ900RK (SECA) 35H 1983 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

31A-21510-00-EG

Unavailable

2

NUT (J17)

95380-06800-00

$6.28

3

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

4

WASHER, SPRING

92995-06100-00

$2.95

5

GUIDE, WIRE

1A8-21518-00-00

$6.09

6

PLATE 1

31A-21523-00-00

Unavailable

7

PLATE 2

31A-21524-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

FENDER, REAR

31E-21611-00-00

Unavailable

11

WASHER, PLATE

90201-06380-00

$0.54

12

BOLT, HEXAGON

97013-08016-00

$1.24

13

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

14

.. WASHER, PLATE

92990-08600-00

$2.17

15

BOLT, HEXAGON

97017-06016-00

$5.76

16

WASHER, SPRING

92907-06100-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

18

WASHER, SPRING

92995-06100-00

$2.95

19

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

20

GUARD, MUD

31A-21629-00-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

22

WASHER, SPRING

92995-06100-00

$2.95

23

WASHER, PLATE

90201-06380-00

$0.54

24

CLAMP (2H7)

90464-12027-00

Unavailable

25

STAY, REAR

31A-21645-00-00

Unavailable

26

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

27

NUT(6TA)

95317-06600-00

Unavailable

28

BOX

31A-21653-00-00

Unavailable

29

COVER, REAR FENDER

31A-21651-00-EG

Unavailable

30

BOLT, WITH WASHER

90119-06242-00

Unavailable

31

DAMPER

1YW-21638-00-00

Unavailable

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

33

WASHER, SPRING

92995-06100-00

$2.95

34

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

35

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

36

WASHER(1RW)

92907-05600-00

Unavailable

37

GRAPHIC

31A-21660-30-00

Unavailable
