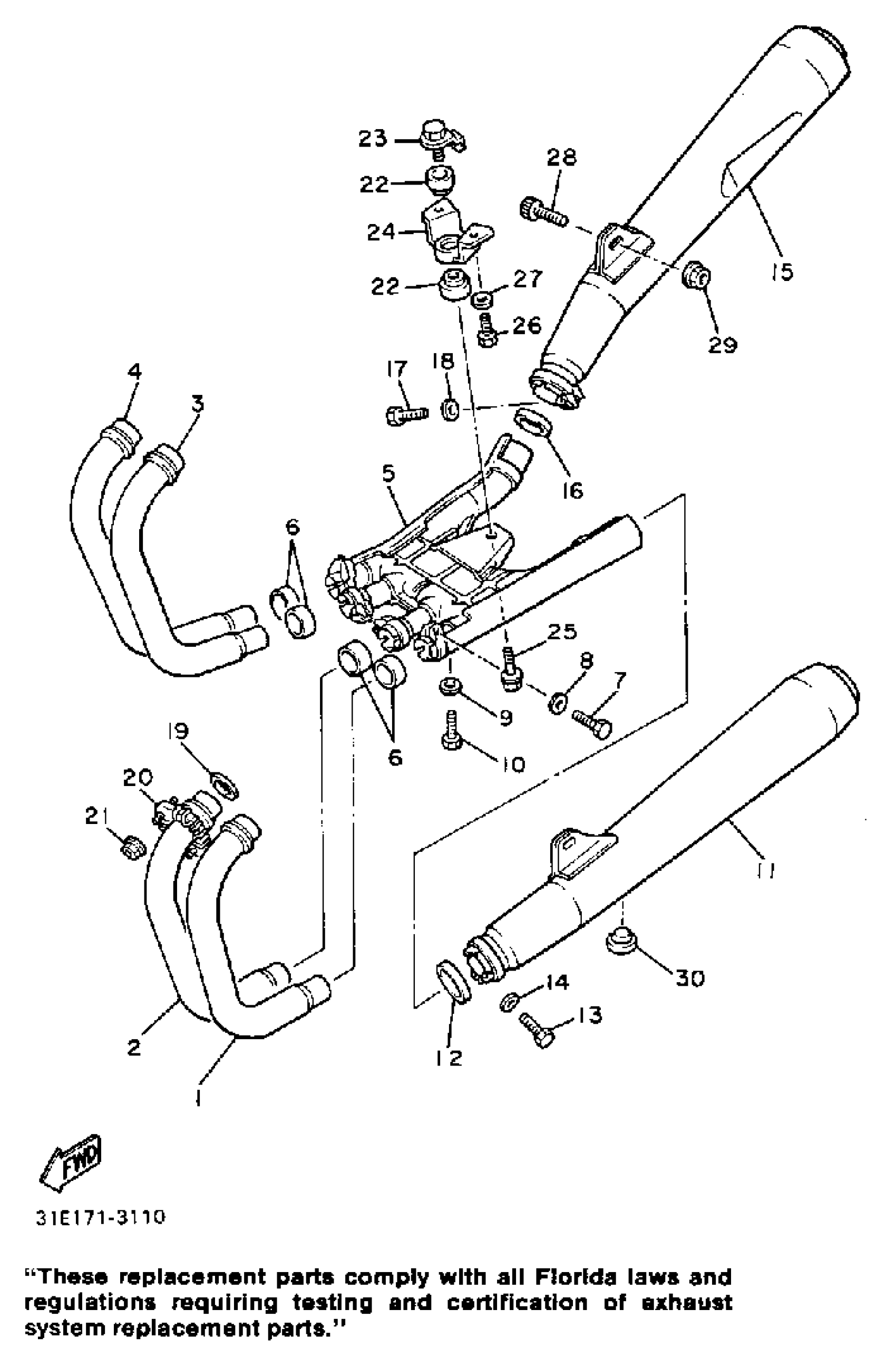

Yamaha XJ900RK (SECA) 35H 1983 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
31A-14611-00-00
Unavailable
2
PIPE, EXHAUST R
58L-14621-00-00
Unavailable
3
PIPE, EXHAUST 3
31A-14631-00-00
Unavailable
4
PIPE, EXHAUST 4
58L-14641-00-00
Unavailable
5
JOINT, EXHAUST L
31A-14615-00-00
Unavailable
6
GASKET, SILENCER
3XW-14755-00-00
Unavailable
8
.. WASHER, PLATE
92990-08600-00
Unavailable
11
MUFFLER L
35H-14711-80-00
Unavailable
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
MUFFLER R
35H-14721-80-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
GASKET, EXHAUST PIPE
4BR-14613-00-00
Unavailable
20
NUT, RING
31A-14612-00-00
Unavailable
21
NUT (1AE)
90179-06500-00
Unavailable
22
DAMPER, MUFFLER
36Y-14747-00-00
Unavailable
23
COLLAR
1AE-14638-00-00
Unavailable
24
STAY, MUFFLER
4K0-14791-00-00
Unavailable
25
BOLT, FLANGE
95814-10040-00
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
28
BOLT,SOCKET
91314-10025-00
Unavailable
29
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
30
STOPPER, MAIN STAND
1A0-27114-00-00
Unavailable
