- XJ900RK (SECA) 35H 1983
ELECTRICAL 1

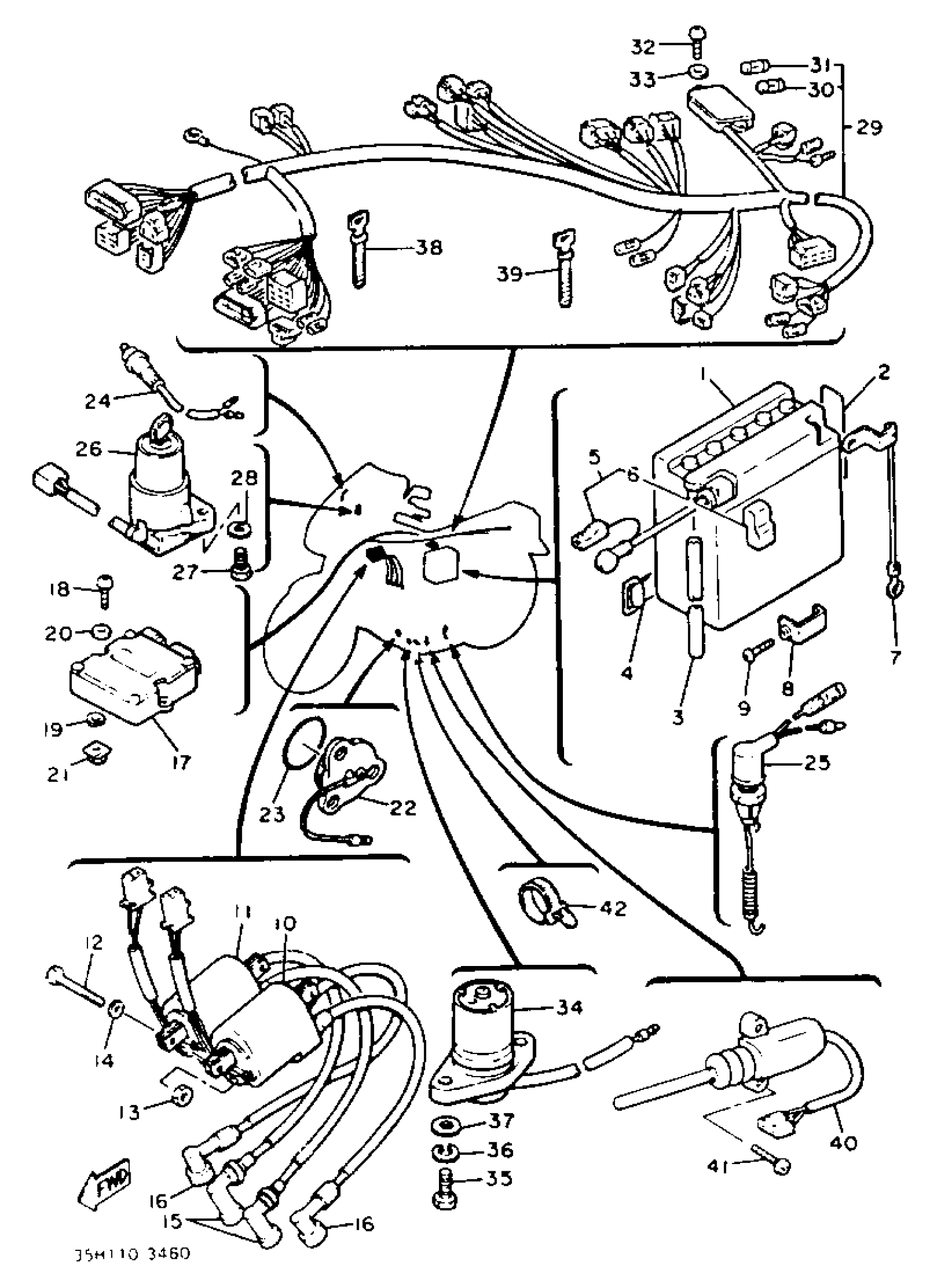

Yamaha XJ900RK (SECA) 35H 1983 ELECTRICAL 1 Diagram
#
1
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
2
LABEL, BATTERY
40A-82141-G0-00
Unavailable
5
WIRE, PLUS LEAD (15R-82115-00)
12R-82115-00-00
Unavailable
6
. COVER, LEAD WIRE
31A-82119-00-00
Unavailable
7
WIRE, MINUS LEAD
5G2-82116-00-00
Unavailable
8
TERMINAL 1
5G2-82103-00-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
15
PLUG CAP ASSY
1J7-82370-00-00
Unavailable
16
PLUG CAP ASSY
4BP-82370-01-00
Unavailable
17
IGNITOR UNIT ASSEMBLY 1
31A-82305-10-00
Unavailable
18
SCREW, PAN
98507-06014-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
21
NUT, PLATE
4G0-21736-00-00
Unavailable
22
NEUTRAL SWITCH ASSY
4GY-82540-10-00
Unavailable
23
GASKET (5R6)
90430-10171-00
Unavailable
24
FRONT STOP SWITCH ASSY
26H-83980-00-00
Unavailable
25
STOP SWITCH ASSEMBLY (1E9-82530-00-00)
1E9-82530-02-00
Unavailable
26
MAIN SWITCH STEERING LOCK
3JV-82501-00-00
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
28
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
29
WIRE HARNESS ASSEMBLY
31E-82590-50-00
Unavailable
30
FUSE
1A0-82151-00-00
Unavailable
31
FUSE (12V 30A)
2H7-82151-00-00
Unavailable
32
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
33
WASHER, PLAIN (646)
92990-05600-00
Unavailable
34
OIL LEVEL GAUGE ASSY
4H7-85720-02-00
Unavailable
35
BOLT, HEXAGON
97017-06020-00
Unavailable
36
WASHER, SPRING
92995-06100-00
Unavailable
37
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
38
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
39
BAND
341-26397-01-00
Unavailable
40
SWITCH, SIDE STAND
5G8-82566-00-00
Unavailable
41
SCREW, FLAT
98707-05016-00
Unavailable
42
BAND
341-26397-01-00
Unavailable
