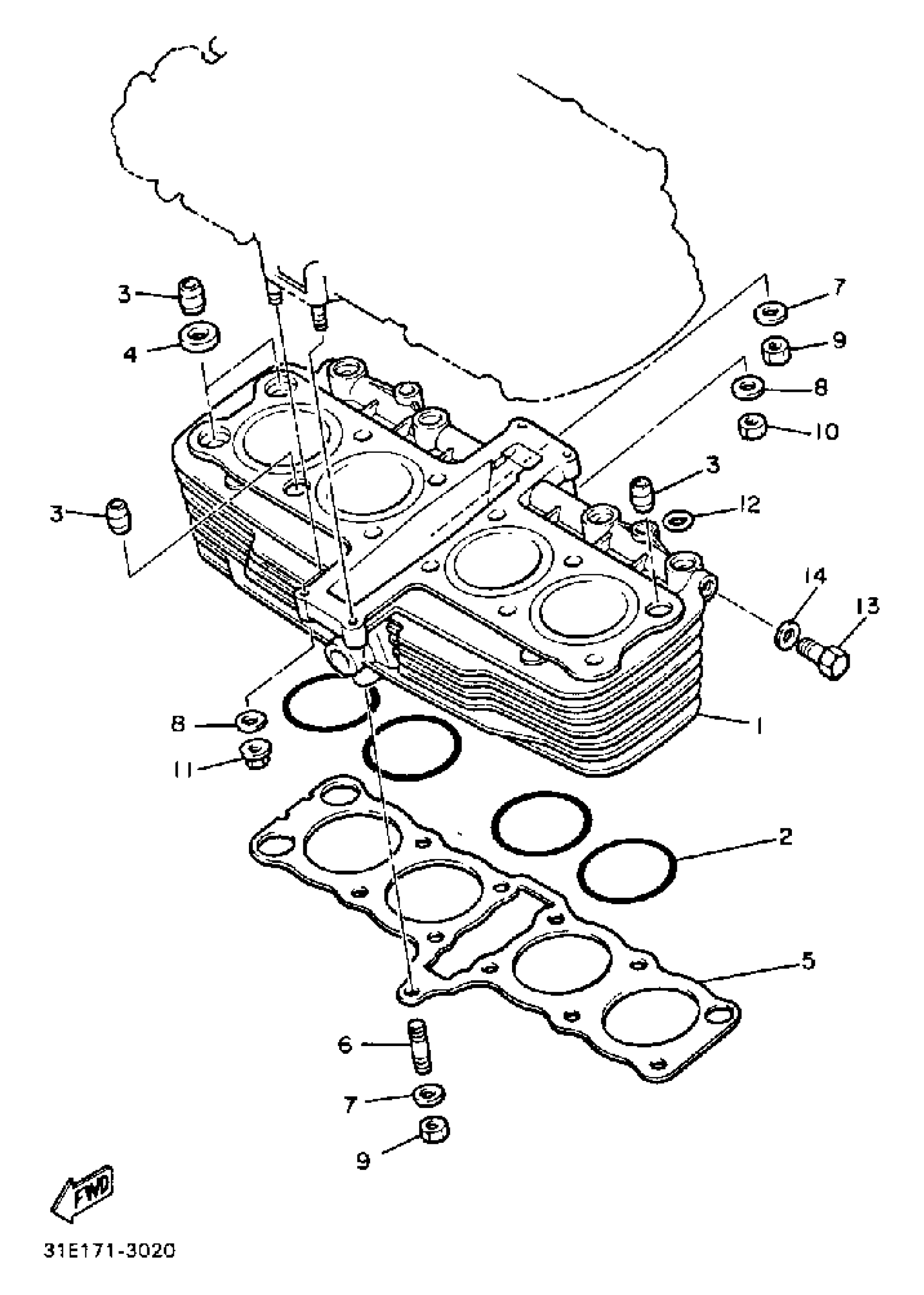

Yamaha XJ900RK (SECA) 35H 1983 CYLINDER Diagram

#

Description
Price

1

CYLINDER

31A-11310-00-00

Unavailable

2

O-RING (5G2)

93210-71462-00

$13.97

3

PIN, DOWEL

99530-14016-00

$2.98

4

GASKET (1L9)

90430-14131-00

$4.96

5

GASKET, CYLINDER

4BB-11351-00-00

Unavailable

6

BOLT,STUD

95617-08335-00

Unavailable

7

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

8

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

9

NUT(6TA)

95337-08600-00

$5.75

10

NUT(6TA)

95317-06600-00

$2.52

11

NUT (1AE)

90179-06500-00

$4.15

12

O-RING (4U8)

93210-09443-00

$2.58

13

BOLT, WASHER BASED(4GY)

90105-122A1-00

$2.17

14

WASHER, PLATE

90201-12790-00

$6.39
