- XJ900RK (SECA) 35H 1983
CRANKSHAFT PISTON

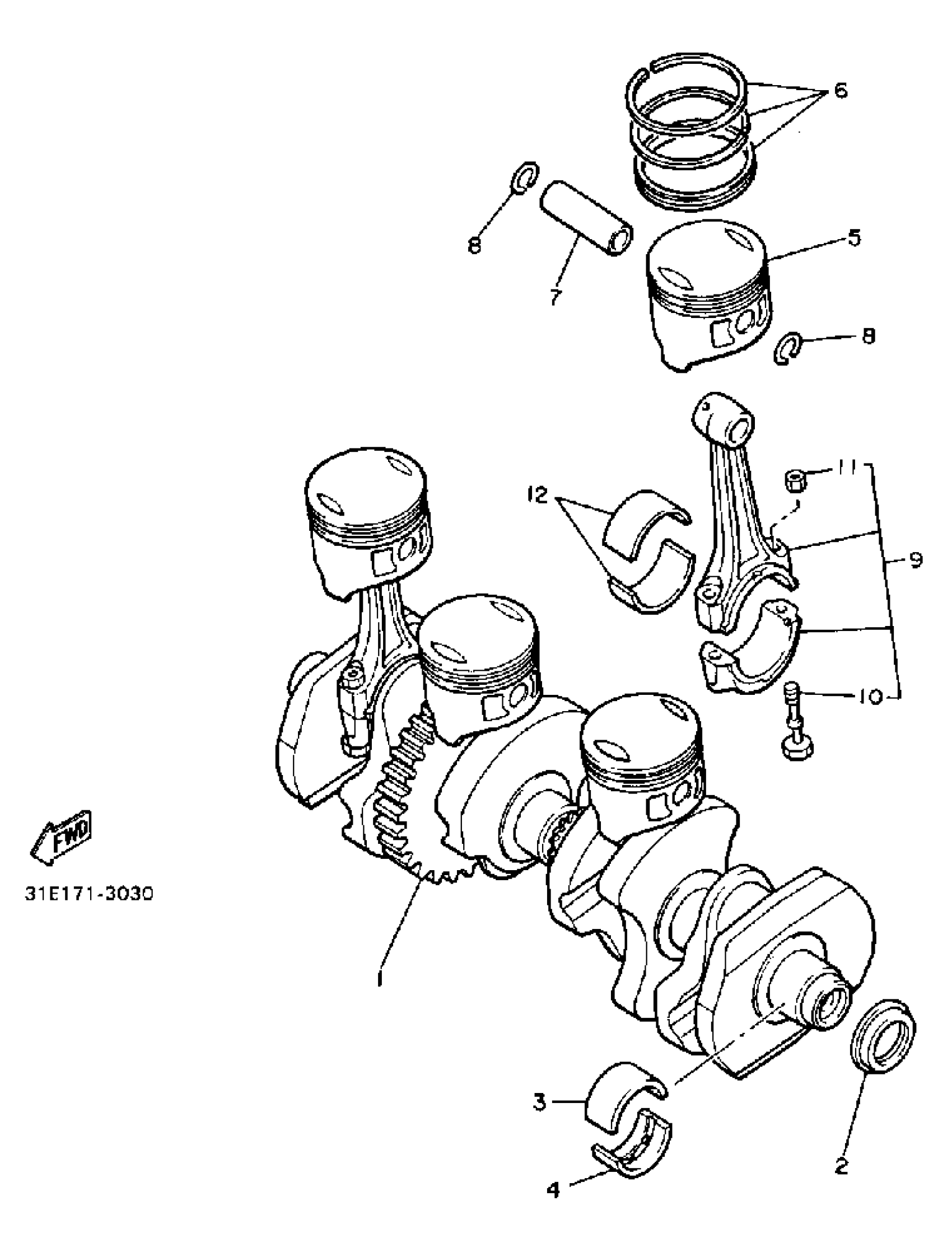

Yamaha XJ900RK (SECA) 35H 1983 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT
31A-11411-00-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-01-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-11-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-21-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-31-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-41-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-01-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-11-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-21-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-31-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-41-00
Unavailable
5
PISTON STD (STD)
31A-11631-01-Y0
Unavailable
5
PISTON 2 O/S 0.50 (0.50MM O/S)
31A-11636-01-00
Unavailable
5
PISTON 4 O/S 1.00
31A-11638-01-00
Unavailable
6
PISTON RING SET (STD)
15A-11603-00-00
Unavailable
6
PISTON RING SET (0.50MM O/S)
15A-11605-00-00
Unavailable
6
PISTON RINGSET 4TH
31A-11610-40-00
Unavailable
7
PIN, PISTON
58L-11633-00-00
Unavailable
8
CIRCLIP (1L9)
93450-17044-00
Unavailable
9
CONNECTING ROD ASSEMBLY
31A-Y1165-01-00
Unavailable
10
BOLT, CONNECTING ROD
12R-11654-00-00
Unavailable
11
NUT (11H)
90179-08327-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-00-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-10-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-20-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-30-00
Unavailable
