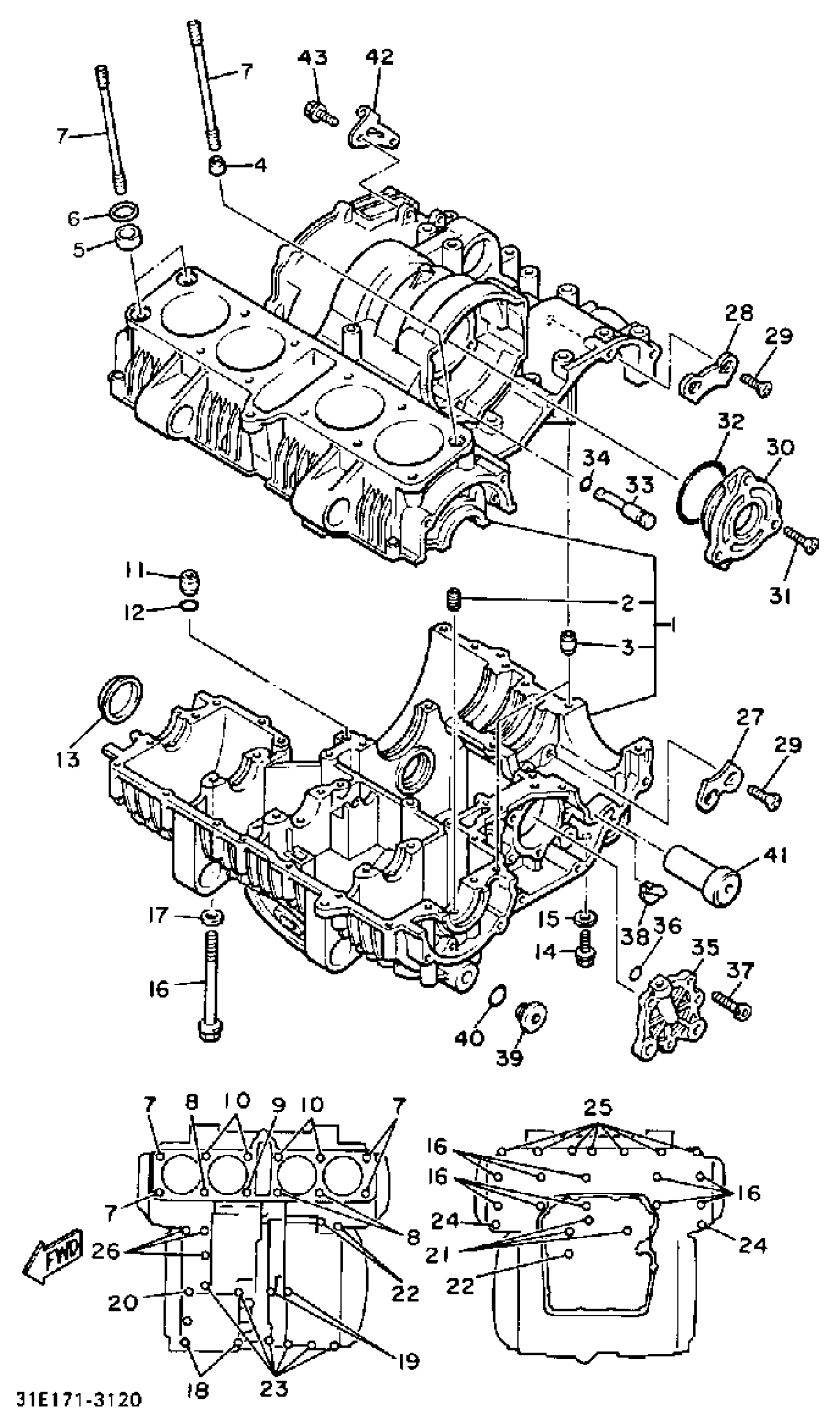

Yamaha XJ900RK (SECA) 35H 1983 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

35H-15100-00-00

Unavailable

2

NOZZLE

4KM-13572-01-00

$6.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

PIN, DOWEL

99530-14016-00

$3.80

5

COLLAR (1L9)

90387-16547-00

$9.49

6

O-RING (1L9)

93210-18322-00

$5.60

7

BOLT, STUD (4H7)

90116-10330-00

Unavailable

8

BOLT, STUD (4H7)

90116-10329-00

$15.99

9

BOLT, STUD (4H7)

90116-10329-00

$15.99

10

BOLT, CYLINDER HOLDING 3

4H7-11363-00-00

Unavailable

11

PIN, DOWEL

99530-12016-00

$4.89

12

O-RING (371)

93210-11124-00

$7.49

13

PLUG (4H7)

4H7-15167-10-00

$19.99

14

BOLT, WASHER BASED(4JT)

90105-08729-00

$4.77

15

WASHER, PLATE 3411117500

90201-08087-00

$3.71

16

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

17

WASHER, PLATE (33N)

90201-094G1-00

Unavailable

18

BOLT, FLANGE

95814-08065-00

Unavailable

19

BOLT, FLANGE

95817-06135-00

Unavailable

20

BOLT, FLANGE

95817-06120-00

Unavailable

21

BOLT, FLANGE

95817-06080-00

Unavailable

22

BOLT, FLANGE

95817-06070-00

Unavailable

23

BOLT, FLANGE

95817-06060-00

Unavailable

24

BOLT, FLANGE

95817-06055-00

Unavailable

25

BOLT, FLANGE

95814-08045-00

Unavailable

26

BOLT, FLANGE

95817-06035-00

Unavailable

27

PLATE, BEARING COVER 1

31A-15381-00-00

Unavailable

28

PLATE, BEARING COVER 2

31A-15383-00-00

Unavailable

29

SCREW

90149-08013-00

Unavailable

30

HOUSING, BEARING 1

4H7-15163-01-00

Unavailable

31

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

32

O-RING

93210-62439-00

Unavailable

33

NOZZLE

4H7-13454-00-00

Unavailable

34

O-RING (11M)

93210-07540-00

Unavailable

35

HOUSING, BEARING 2

16G-15164-00-00

Unavailable

36

O-RING

93210-07438-00

Unavailable

37

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

38

GROMMET

4H7-15365-00-00

Unavailable

39

PLUG

4H7-15189-00-00

Unavailable

40

O-RING

93210-21001-00

Unavailable

41

COLLAR

90387-125A2-00

Unavailable

42

HOLDER, CLUTCH CABLE

4H7-15441-01-00

Unavailable

43

BOLT,SOCKET

91317-06012-00

Unavailable
