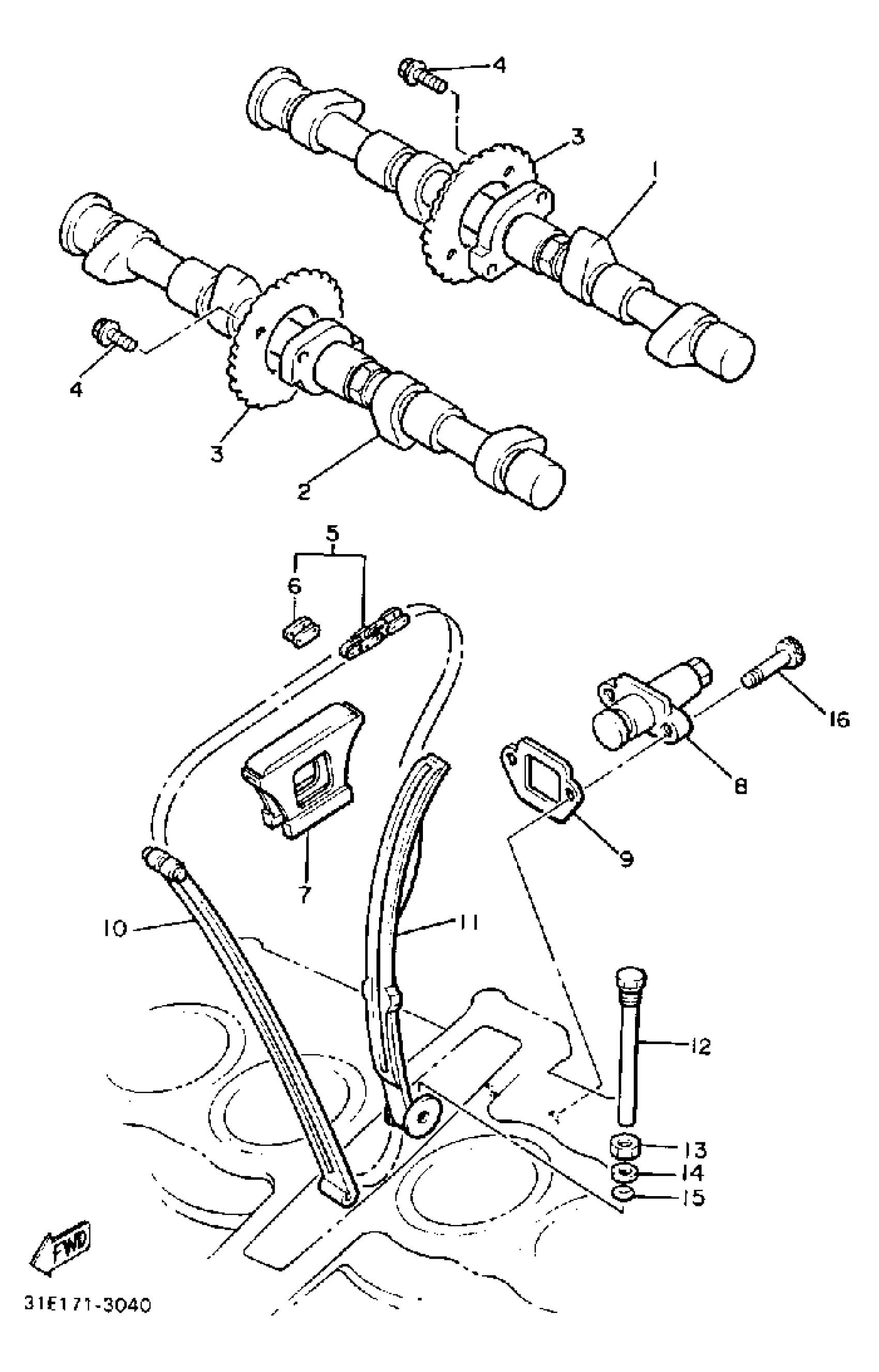

Yamaha XJ900RK (SECA) 35H 1983 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

31A-12171-00-00

Unavailable

CAMSHAFT 2

31A-12181-00-00

Unavailable

SPROCKET, CAM CHAIN (4G0-12176-00) (32T)

4G0-12176-01-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

DID 219FTS-102L

94580-58120-00

Unavailable

PIN, JOINT

4SV-11498-00-00

$7.99

GUIDE, STOPPER 2

4H7-12241-00-00

Unavailable

TENSIONER ASSY, CAM CHAIN

4KM-12210-01-00

$90.99

GASKET, TENSIONER CASE

3YX-12213-00-00

$6.99

DAMPER, CHAIN 1

4H7-12251-00-00

Unavailable

DAMPER, CHAIN 2

4H7-12252-00-00

Unavailable

BOLT

90109-10570-00

Unavailable

NUT (682)

95380-10700-00

Unavailable

.. WASHER, PLATE

92990-08600-00

Unavailable

O-RING

93210-08003-00

$9.49

BOLT,SOCKET

91317-06025-00

Unavailable
