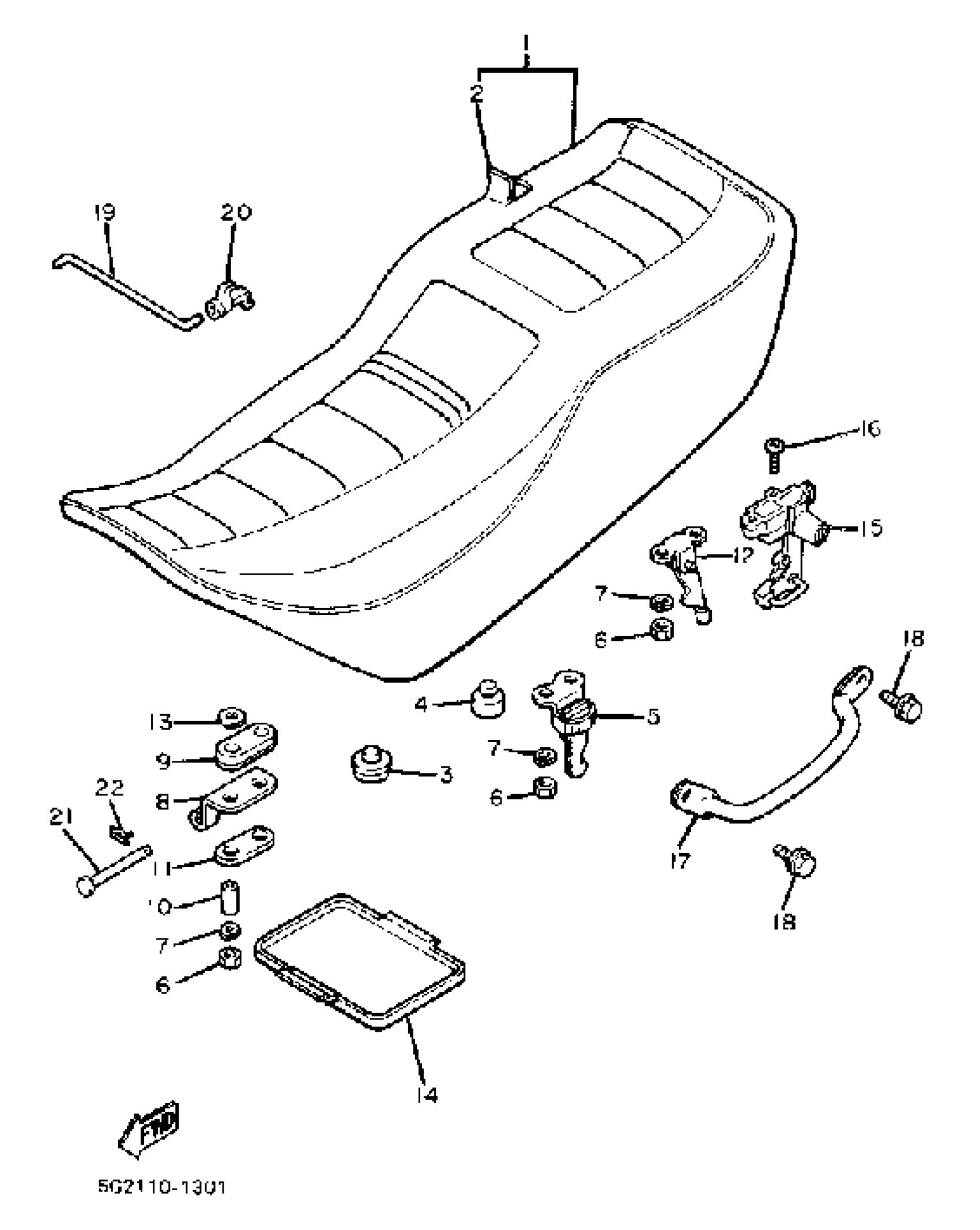

Yamaha XJ750RK (XJ750R) 1983 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY.

5G8-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

5G2-24731-00-00

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

STOPPER, MAIN STAND

371-27114-00-00

$7.99

5

BRACKET, SEAT

4K0-24728-00-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

HINGE, SEAT

1J7-24726-00-00

Unavailable

9

DAMPER, SEAT

1J7-24723-00-00

Unavailable

10

COLLAR

90387-07020-00

$8.49

11

WASHER, SEAT

1L9-24746-00-00

Unavailable

12

SEAT LEVER ASS''Y

4K0-24760-00-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

LID

395-28185-00-00

Unavailable

15

SEAT LOCK ASSEMBLY

5G2-24705-00-00

Unavailable

16

SCREW, BINDING

98907-06016-00

Unavailable

17

HANDLE, STANDING

5G2-21165-00-00

Unavailable

18

BOLT, FLANGE

95817-08012-00

Unavailable

19

STOPPER

4K0-24768-01-00

Unavailable

20

BRACKET, SEAT

1J7-24718-00-00

Unavailable

21

PIN, CLEVIS

91701-05055-00

Unavailable

22

CLIP (156-83525-00)

90468-10050-00

Unavailable
