Description

Price

1

COVER, OIL ELEMENT

4K0-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

3

GROMMET (1L9)

90480-23193-00

Unavailable

4

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

5

O-RING (26H)

93210-16629-00

$7.49

6

O-RING(1KF)

93210-87723-00

Unavailable

7

WASHER, PLATE (1L9)

90201-21608-00

$8.49

8

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

9

UNAVAILABLE IN PRICE BOOK

4H7-134F1-70-20

Unavailable

10

PLATE, BAFFLE LOWER

4H7-13337-00-00

$7.99

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

GASKET, STRAINER COVER

4BB-13414-00-00

$30.99

13

PIN, DOWEL(3XW)

91808-16023-00

$8.49

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

SCREW, BIND(2TV)

98980-06008-00

$3.19

16

GASKET

214-11198-01-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

18

BOLT,SOCKET

91317-06040-00

Unavailable

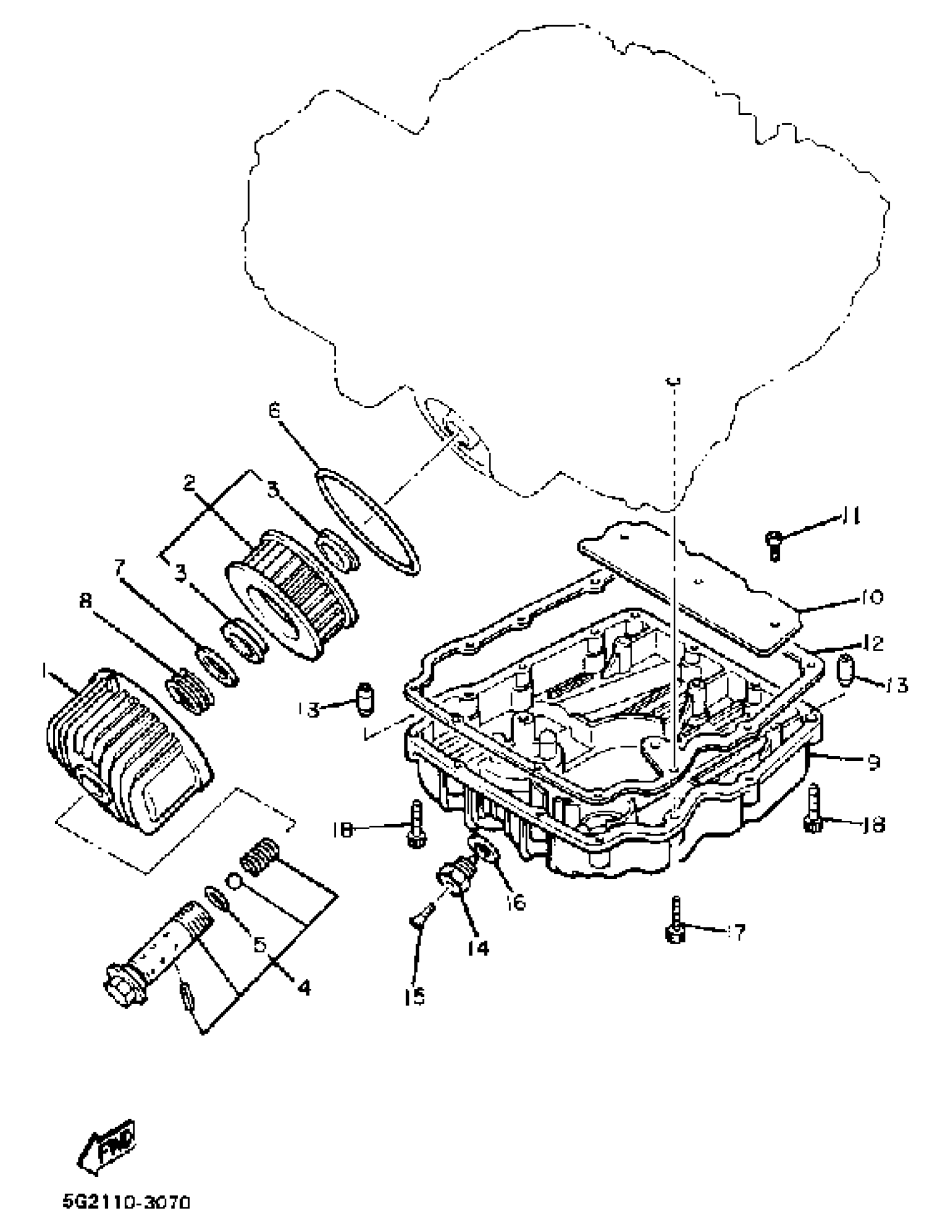

Yamaha XJ750RK (XJ750R) 1983 OIL CLEANER Diagram

COVER, OIL ELEMENT

ELEMENT, OIL CLEANER

GROMMET (1L9)

BY-PASS VALVE ASSY

O-RING (26H)

O-RING(1KF)

WASHER, PLATE (1L9)

SPRING, COMPRESSION (1L9)

UNAVAILABLE IN PRICE BOOK

PLATE, BAFFLE LOWER

SCREW PAN HEAD

GASKET, STRAINER COVER

PIN, DOWEL(3XW)

PLUG, STRAIGHT SCREW(3FA)

SCREW, BIND(2TV)

GASKET

BOLT, HEXAGON SOCKET HEAD(1VJ)

BOLT,SOCKET
