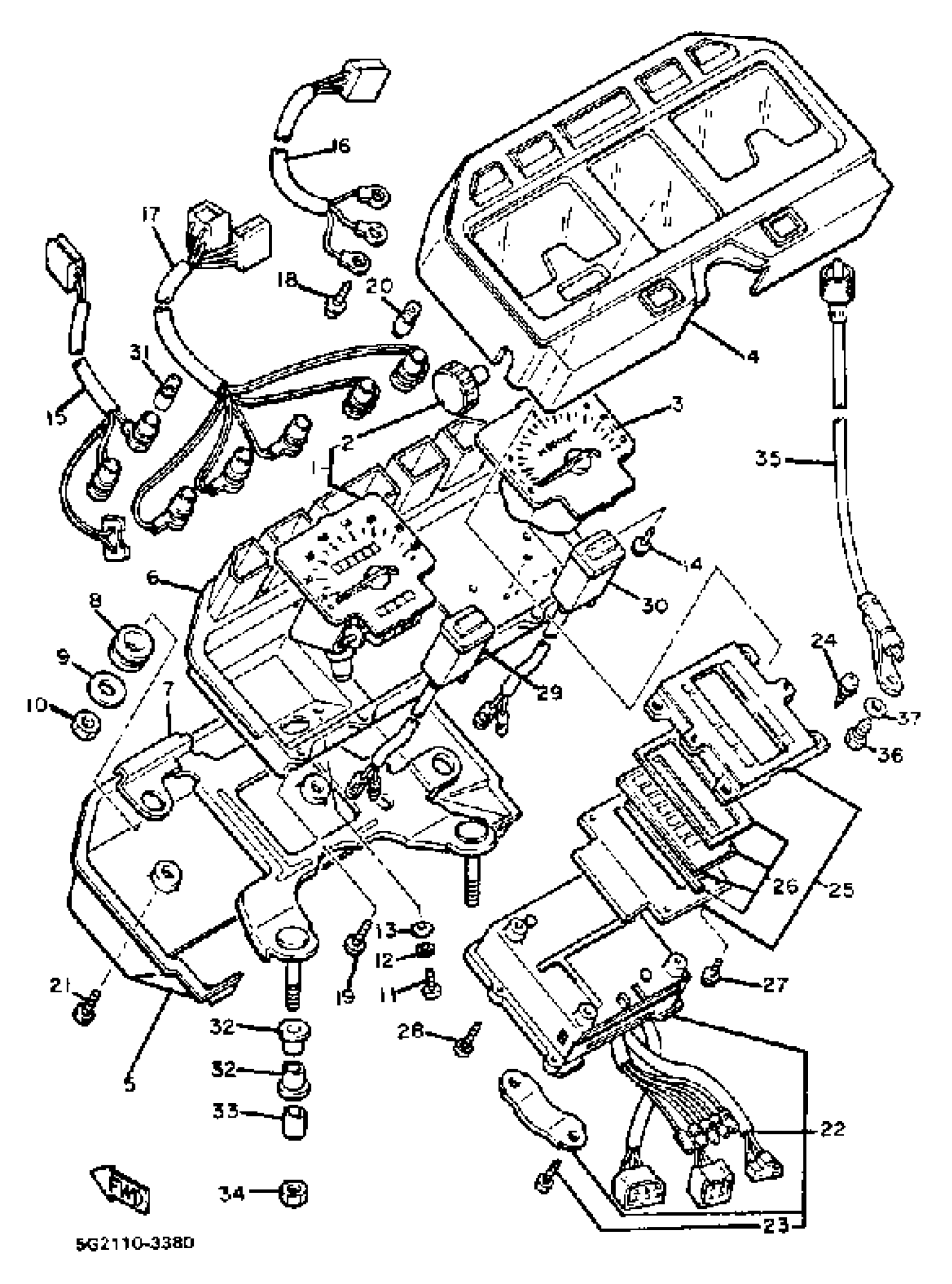

Yamaha XJ750RK (XJ750R) 1983 METER Diagram
#
1
SPEEDOMETER ASSEMBLY
5G2-83570-A0-00
Unavailable
2
. KNOB, TRIP METER
4U8-83578-00-00
Unavailable
3
TACHOMETER ASSEMBLY
5G8-83540-00-00
Unavailable
4
COVER, METER
5G2-83559-00-00
Unavailable
5
COVER METER 2
24L-83579-00-00
Unavailable
6
CASE, INNER
24L-8353H-00-00
Unavailable
7
BRACKET, METER
5G2-83519-00-00
Unavailable
8
DAMPER
5G2-83523-00-00
Unavailable
14
SCREW, WITH WASHER
90159-04043-00
Unavailable
15
. SOCKET CORD ASSEMBLY (15R-83520-00)
4U8-83520-00-00
Unavailable
16
SOCKET CORD ASSEMBLY (5G2-83520-10)
15R-83520-10-00
Unavailable
17
SOCKET CORD ASSEMBLY
5G2-83509-00-00
Unavailable
18
SCREW, WITH WASHER
90159-03044-00
Unavailable
19
SCREW, TAPPING
90164-04005-00
Unavailable
20
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
21
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
22
PRINT BOARD ASSEMBLY
5G2-W8352-00-00
Unavailable
23
SCREW, TAPPING (97702-40508-00)
97701-40508-00
Unavailable
24
SCREW, WITH WASHER
(90159-04055-00)
Unavailable
25
LCD UNIT HLDR SET
5G2-W8353-01-00
Unavailable
26
LCD UNIT SET
5G2-W8351-01-00
Unavailable
27
SCREW, WITH WASHER
90159-03054-00
Unavailable
28
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
29
SWITCH, METER CNTRL (5G2-8358J-20)
5G2-8358J-10-00
Unavailable
30
SWITCH, METER CNTRL (5G2-8358J-20)
5G2-8358J-10-00
Unavailable
31
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
32
DAMPER, METER BRACKET
584-83541-00-00
Unavailable
33
COLLAR (877)
90387-06249-00
Unavailable
34
NUT, HEXAGON
95380-06600-00
Unavailable
35
SPEEDOMETER CABLE
5K5-83550-00-00
Unavailable
36
SCREW, HEXAGON
90153-06004-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
