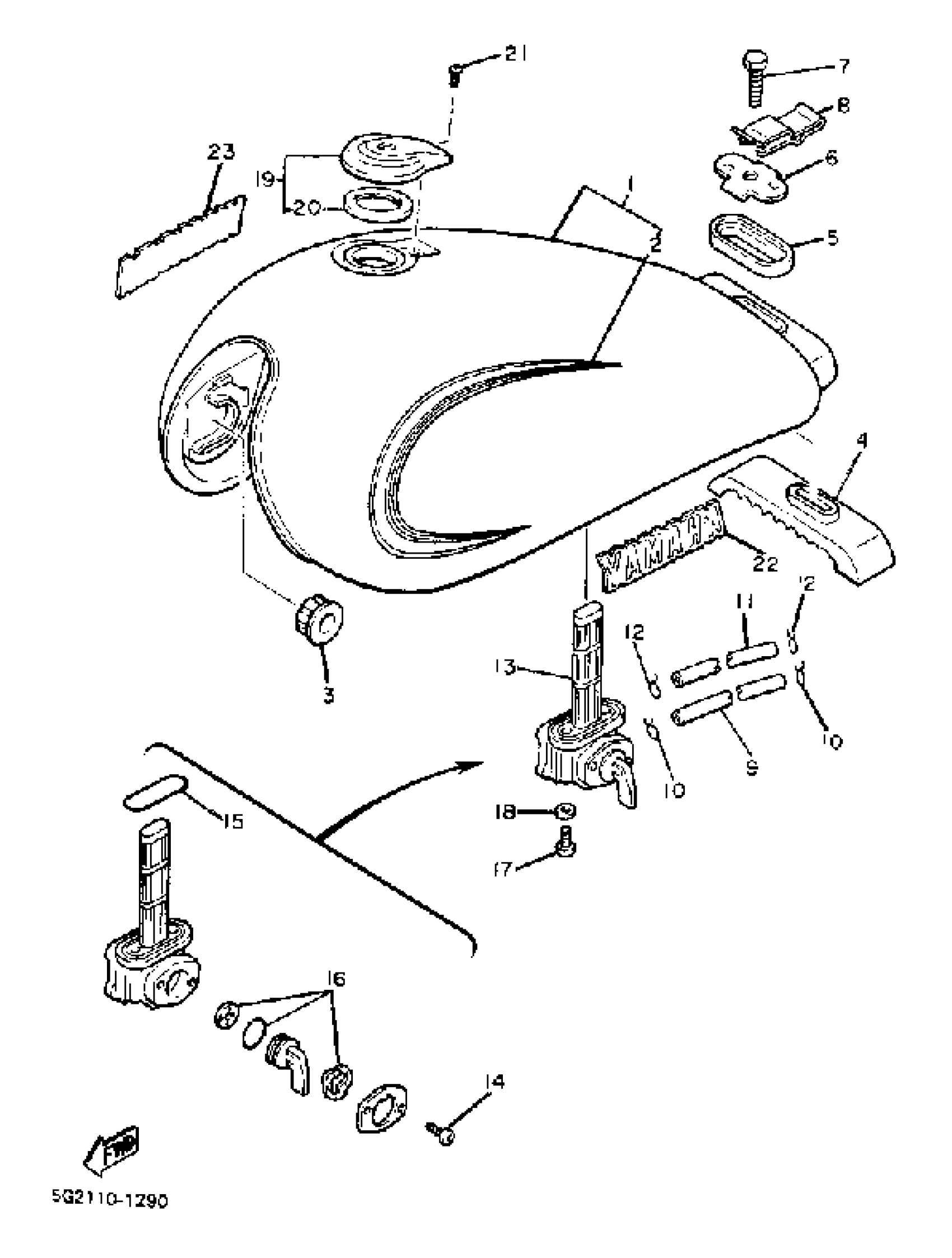

Yamaha XJ750RK (XJ750R) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

5G2-24110-00-09

Unavailable

1

FUEL TANK

5G2-24110-00-1U

Unavailable

2

GRAPHIC SET

(5G2-24240-40-00)

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

4H7-24182-01-00

Unavailable

5

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

6

WASHER, SPECIAL

4K0-24186-00-00

Unavailable

7

BOLT

90109-08579-00

Unavailable

8

CLIP

4K0-2411M-00-00

Unavailable

9

PIPE, FUEL 1

5G2-24311-00-00

Unavailable

10

CLIP

90467-100A1-00

$7.49

11

HOSE (L770)

90445-090G9-00

$33.99

12

CLIP (16G)

90467-08021-00

$8.49

13

FUEL COCK ASSY 1

3AL-24500-00-00

$140.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

O-RING

2W6-24512-00-00

Unavailable

16

FUEL COCK VALVE SET

10L-W0092-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

CAP ASSY

4X7-24602-10-00

Unavailable

20

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

21

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

22

EMBLEM 1

5G2-24161-00-00

Unavailable

23

EMBLEM 2

5G2-24162-00-00

Unavailable
