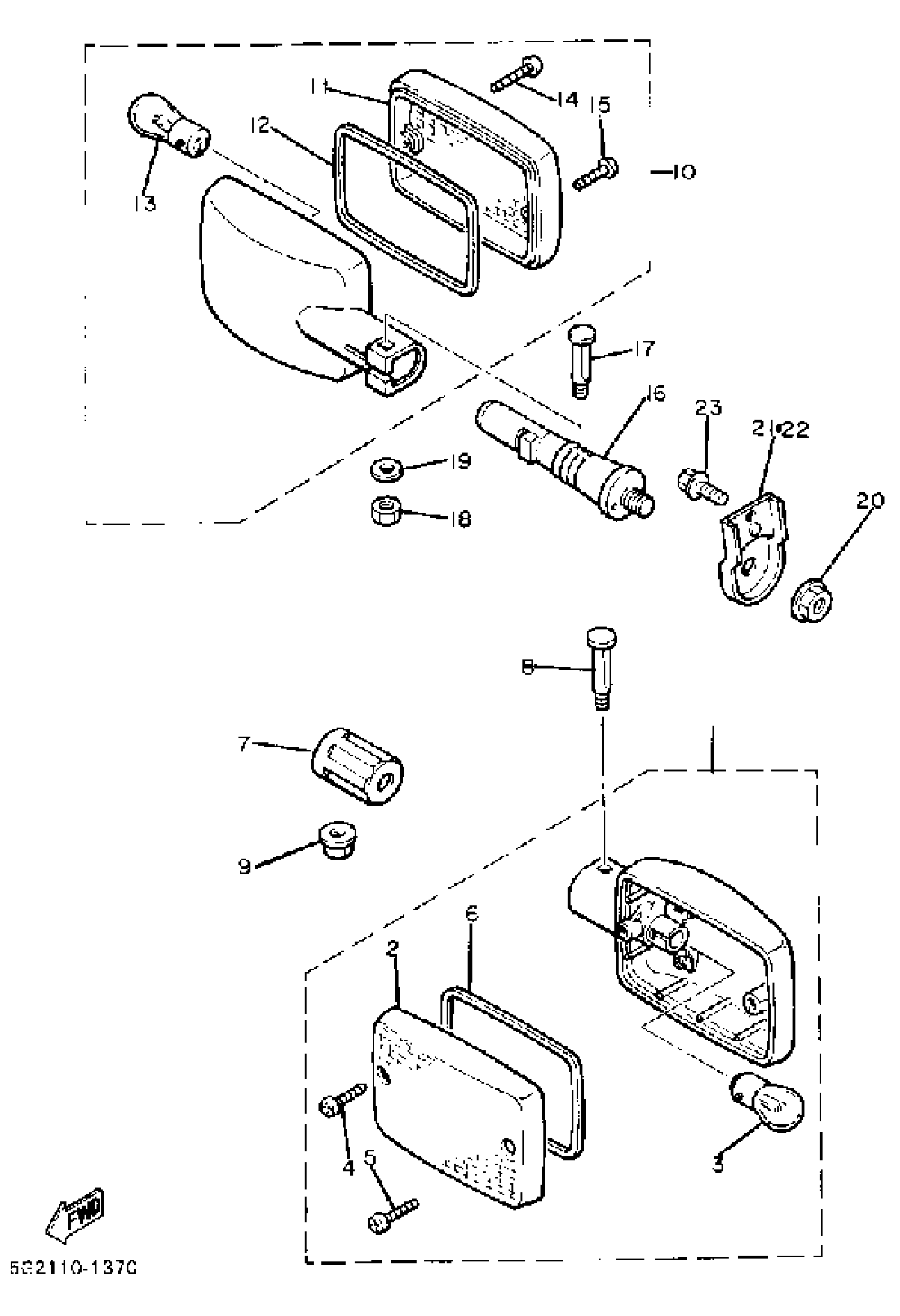

Yamaha XJ750RJ (XJ750R) 1982 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASS''Y (11H-83301-70)

5G2-83310-70-00

Unavailable

2

LENS, FLASHER

5G2-83312-00-00

$15.49

3

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

4

SCREW, PAN HEAD

98507-04018-00

$2.19

5

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

6

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

7

DAMPER, FLASHER 1

4L0-83321-00-00

$23.99

8

BOLT, flasher 1

5G2-83317-00-00

Unavailable

9

NUT, FLANGE(3GM)

95707-05500-00

$8.49

10

REAR FLASHER LIGHT ASS''Y

5G2-83303-70-00

Unavailable

11

LENS, FLASHER

5G2-83312-00-00

$15.49

12

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

$2.19

16

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

17

BOLT, flasher 1

5G2-83317-00-00

Unavailable

18

NUT, HEXAGON

95317-05600-00

Unavailable

19

WASHER(1RW)

92907-05600-00

Unavailable

20

NUT(3GG)

90179-12588-00

Unavailable

21

STAY, FLASHER

5G2-83368-00-00

Unavailable

22

STAY, FLASHER

5G2-83369-00-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
