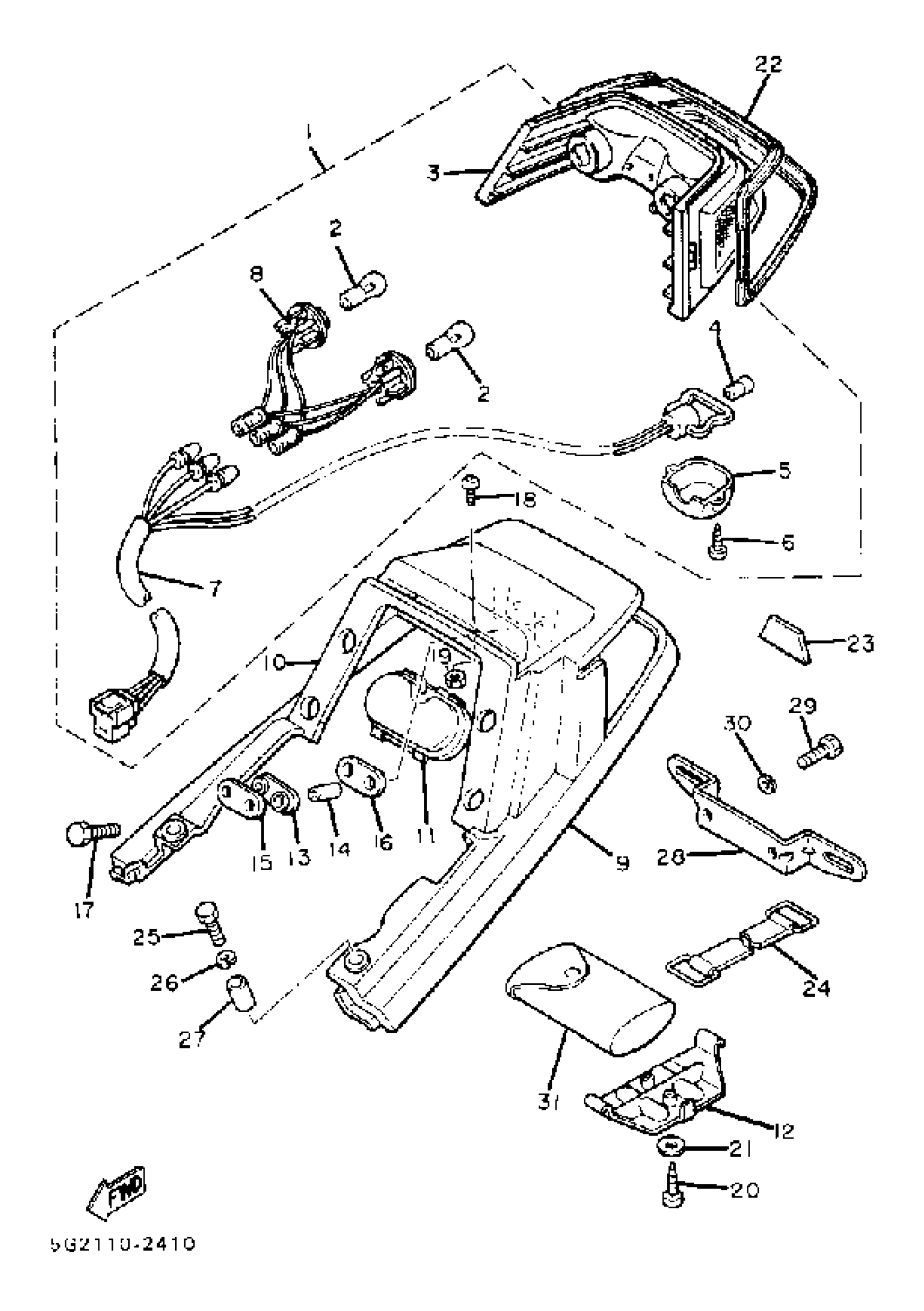

Yamaha XJ750RJ (XJ750R) 1982 TAILLIGHT TAIL COVER TOOL Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSEMBLY

(5G2-84710-60-00)

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS ASSEMBLY

5G2-84540-60-00

Unavailable

4

BULB (12V 38W)

4H7-84744-00-00

Unavailable

5

. LENS, LICENSE LITE

5G2-84743-60-00

Unavailable

6

SCREW, TAPPING

97780-40116-00

Unavailable

7

CORD ASSEMBLY

(5G2-84735-00-00)

Unavailable

8

SOCKET CORD ASSEMBLY

(5G2-84732-00-00)

Unavailable

9

COVER, TAILLIGHT

(5G2-84716-00-63)

Unavailable

9

COVER, TAILLIGHT

5G2-84716-00-6M

Unavailable

10

BOX

5G2-2160E-00-00

Unavailable

11

LID

(5G2-2160F-00-00)

Unavailable

12

HOOK

(5G2-2162A-00-00)

Unavailable

13

DAMPER, tail 1

5G2-84736-00-00

Unavailable

14

COLLAR

5G2-84557-00-00

Unavailable

15

WASHER, SPECIAL

5G2-84725-00-00

Unavailable

16

SPACER

5G2-84729-00-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

Unavailable

18

SCREW, BINDING

98907-05012-00

Unavailable

19

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

21

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

22

GASKET, TAILLIGHT

5G2-84704-00-00

Unavailable

23

EMBLEM 7

5G2-21787-00-00

Unavailable

24

BAND, BATTERY

26L-82131-00-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

28

BRACKET, LICENSE

5G2-84751-00-98

Unavailable

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

TOOL KIT (5G2-28100-10)

5G2-28100-00-00

Unavailable
