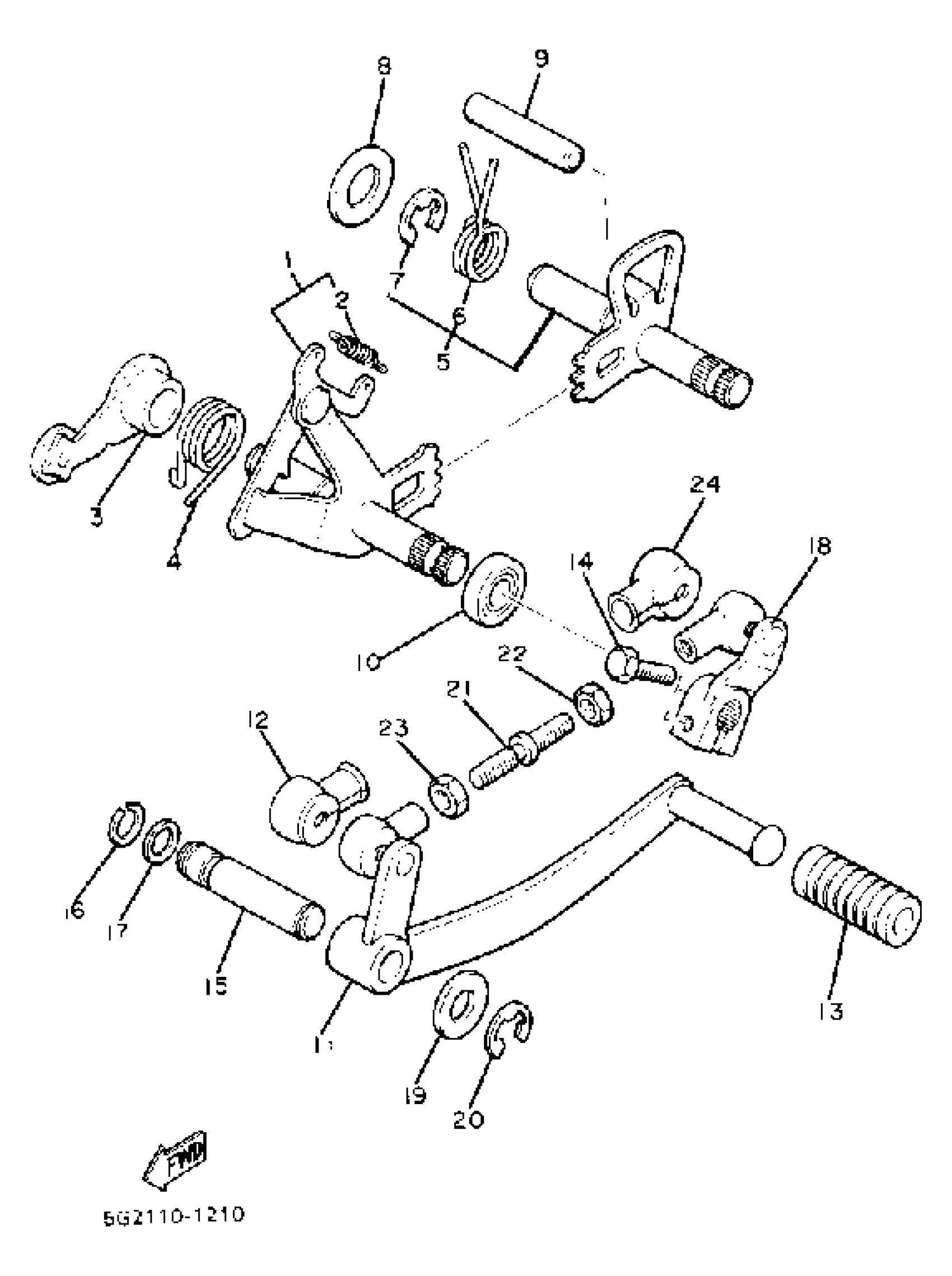

Yamaha XJ750RJ (XJ750R) 1982 SHIFT SHAFT PEDAL Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

4KM-18101-00-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

STOPPER LEVER ASSEMBLY

4H7-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29530-00

Unavailable

5

SHIFT LEVER ASSEMBLY

4H7-18120-02-00

Unavailable

6

COLLAR

90387-12033-00

$7.49

6

SPRING, TORSION (4H7)

90508-32535-00

$10.49

6

SPRING W/ COLLAR

99999-01179-00

Unavailable

7

CIRCLIP

99006-10600-00

$9.49

8

WASHER

90201-12588-00

$7.49

9

PIN, DOWEL (4H7)

93608-50158-00

$8.49

10

SEAL, OIL (30X)

93102-12321-00

$12.49

11

PEDAL, SHIFT

5G2-18111-00-00

Unavailable

12

COVER, DUST

2H9-18154-00-00

$5.49

13

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

14

BOLT, HEXAGON

97017-06020-00

Unavailable

15

SHAFT

4K0-18197-00-00

Unavailable

16

CIRCLIP, OUTER

93440-12066-00

Unavailable

17

O-RING (1J7)

93210-09350-00

Unavailable

18

ARM,SHIFT PEDAL

4BB-18112-00-00

Unavailable

19

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

20

CIRCLIP

99006-10600-00

$9.49

21

ROD, SHIFT

2XK-18115-00-00

Unavailable

22

NUT(650)

95380-06700-00

Unavailable

23

NUT (2H9)

90170-06228-00

Unavailable

24

COVER, DUST

2H9-18154-00-00

$5.49
