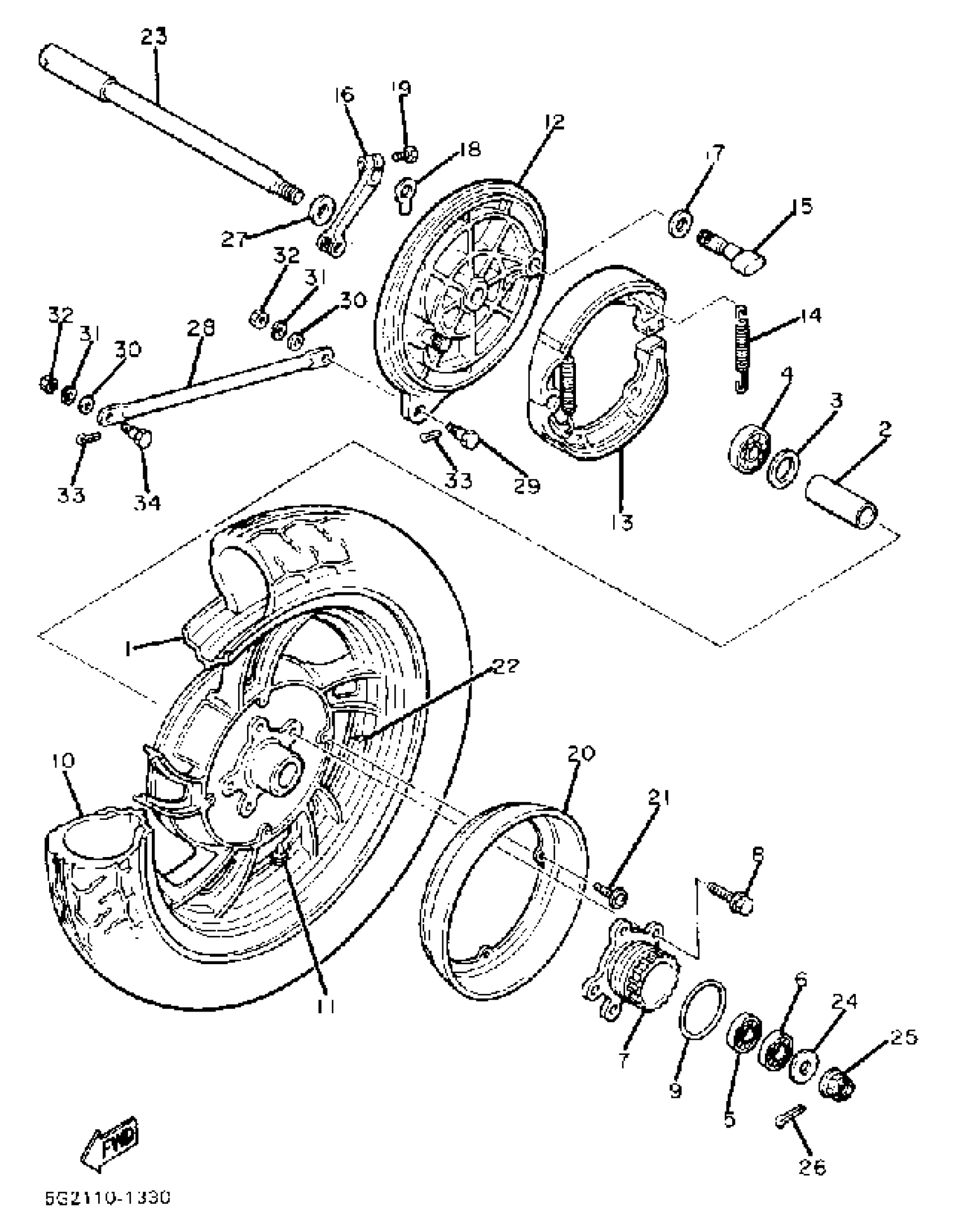

Yamaha XJ750RJ (XJ750R) 1982 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

5G2-25338-29-98

Unavailable

2

SPACER

90560-17125-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

7

CLUTCH, HUB

4H7-25366-01-00

Unavailable

8

BOLT, FLANGE

90105-10225-00

$9.49

9

O-RING (4H7)

93210-57428-00

$14.99

10

120/90-18 S716 TL (120/90-18)

94112-18470-00

Unavailable

11

VALVE, RIM (31A)

93900-00031-00

$16.99

12

PLATE BRAKE SHOE

4K0-25321-01-00

Unavailable

13

BRAKE SHOE KIT

3DR-W253E-00-00

$42.99

14

SPRING, TENSION 2462533300

90507-20002-00

$8.49

15

CAMSHAFT

4H7-25351-00-00

Unavailable

16

LEVER, CAMSHAFT

1L9-25355-00-00

Unavailable

17

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

18

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable

19

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

20

COVER, PLATE

4H7-25327-00-00

Unavailable

21

SCREW, WITH WASHER (1T4/2F3)

90159-05018-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

23

AXLE, WHEEL

4H7-25381-00-00

Unavailable

24

WASHER, PLATE

90201-14022-00

Unavailable

25

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable

27

COLLAR, WHEEL

4H7-25377-00-00

Unavailable

28

BAR, TENSION

3H0-25371-00-00

Unavailable

29

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

30

.. WASHER, PLATE

92990-08600-00

Unavailable

31

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

32

. NUT

95380-08700-00

Unavailable

33

PIN, COTTER

91490-20025-00

Unavailable

34

BOLT (183-25378-00)

90109-08368-00

Unavailable
