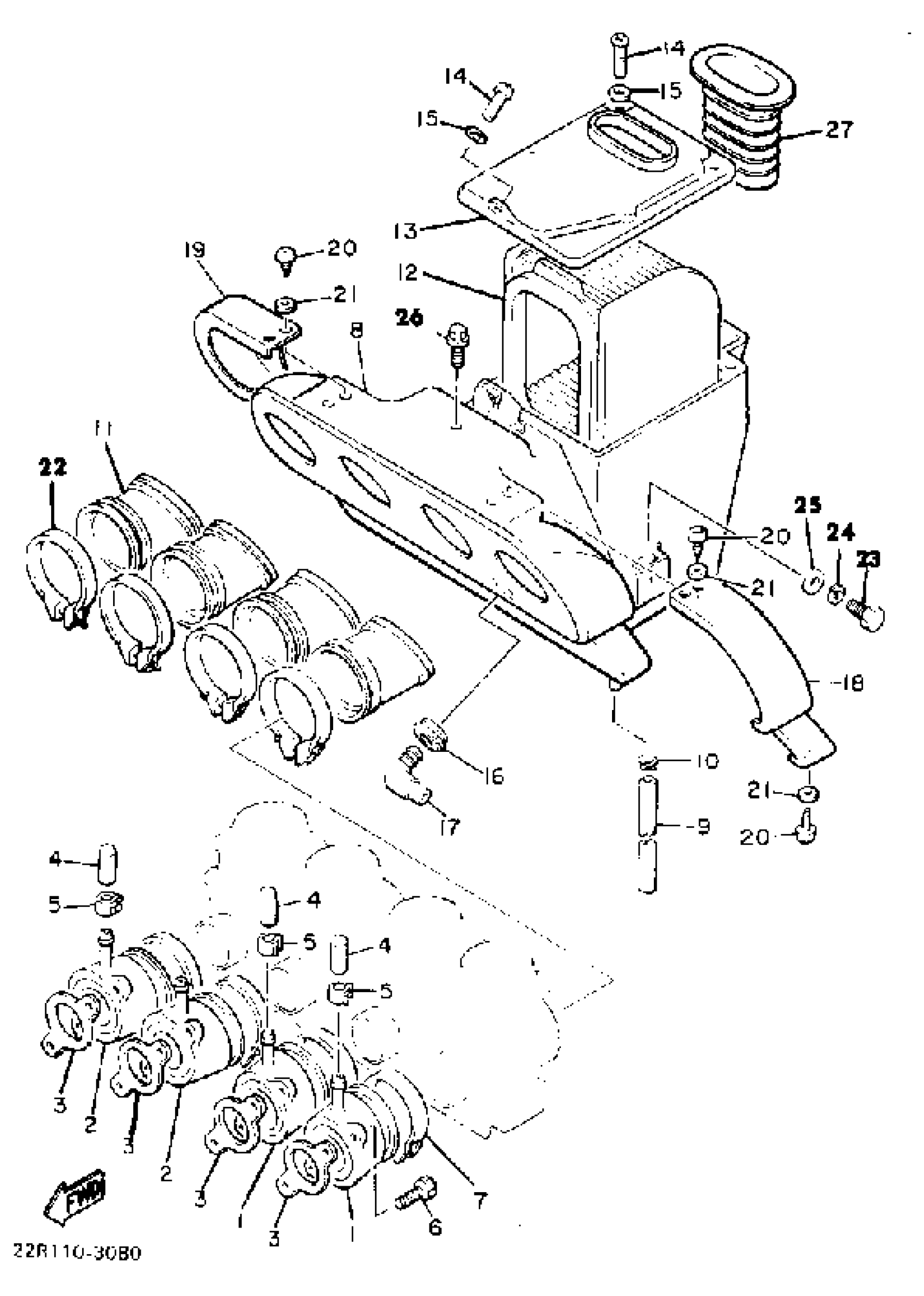

Yamaha XJ750RJ (XJ750R) 1982 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5G2-13586-02-00

$136.99

2

J0INT, CARBURET0R 2

5G2-13596-01-00

$137.99

3

GASKET, MANIFOLD

4H7-13556-11-00

$6.99

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP (3G0)

90467-10039-00

$9.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

CLAMP, H0SE (29R)

90460-49248-00

$24.99

8

AIR CLNR CASE ASSEMBLY

5G2-14401-00-00

Unavailable

9

HOSE (L370)

90445-112E1-00

$23.99

10

CLIP

90467-090A2-00

$4.41

11

JOINT, AIR CLNR 1

5G2-14453-00-00

Unavailable

12

ELEMENT, AIR CLEANER

4H7-14451-00-00

$50.99

13

CAP, CLEANER CASE 1

5G2-14412-00-00

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

GROMMET (4H7)

90480-16278-00

Unavailable

17

PIPE

4H7-14419-00-00

Unavailable

18

COVER, CLNR CASE 1

5G2-1441A-00-00

Unavailable

19

COVER, CLNR CASE 2

5G2-1441E-00-00

Unavailable

20

SCREW, TAPPING

97707-50610-00

Unavailable

21

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

22

HOSE CLAMP ASSY

90450-56001-00

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLATE

90201-06380-00

Unavailable

26

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable

27

DUCT

5G2-14437-00-00

Unavailable
