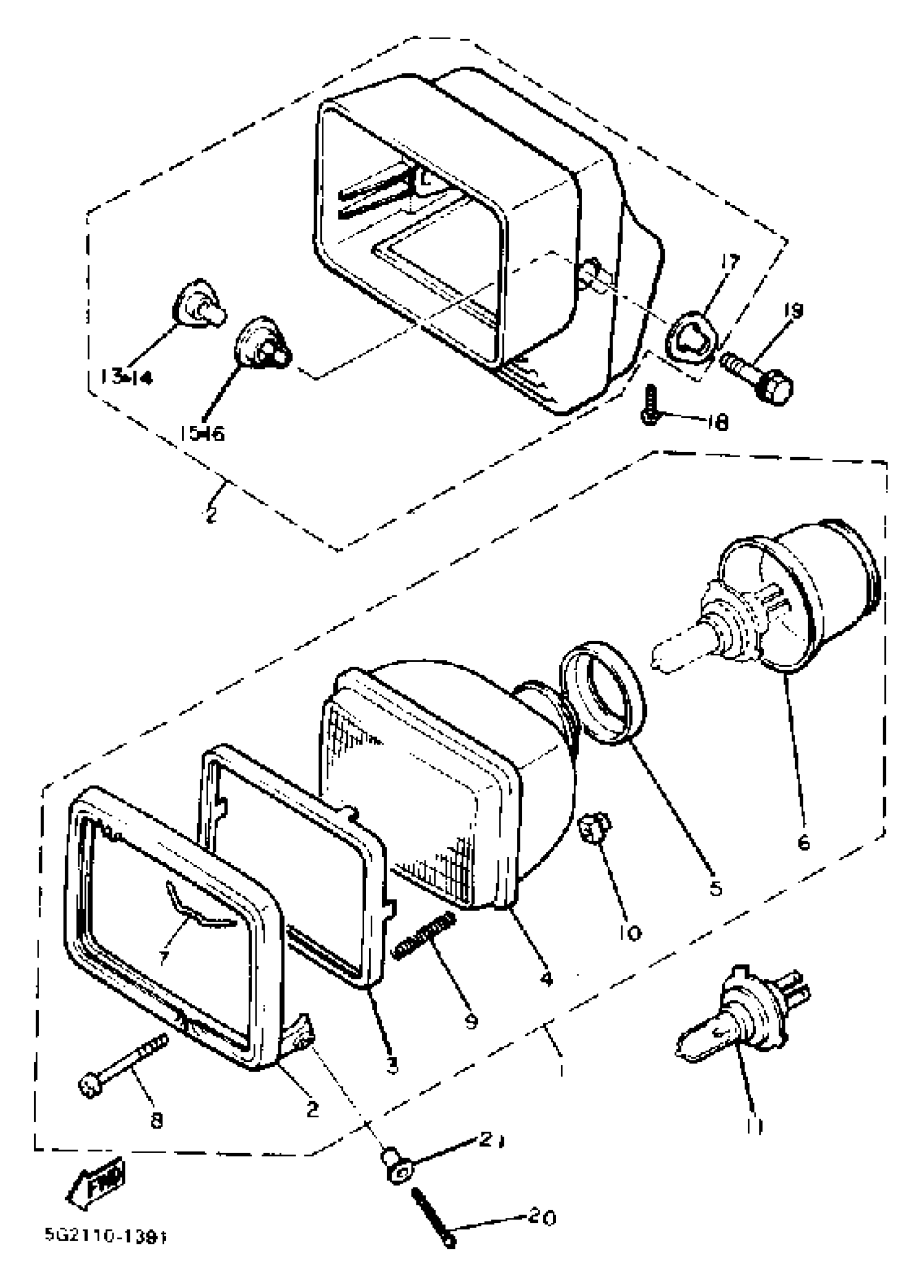

Yamaha XJ750RJ (XJ750R) 1982 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

5G2-84303-A0-00

Unavailable

2

. RIM, HEADLIGHT

5G2-84315-00-00

Unavailable

3

RING, RETAINING

(5G2-84395-00-00)

Unavailable

4

. LENS, HEADLIGHT

5G2-84321-A0-00

Unavailable

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$30.99

7

SET SPRING

55X-84124-00-00

$11.99

8

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

9

SPRING, ADJUST

341-84332-60-00

$9.99

10

NUT, ADJUST

198-84334-60-00

$7.99

11

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

12

BODY ASSEMBLY

5G2-84330-00-00

Unavailable

13

COLLAR 1

5G2-84388-00-00

Unavailable

14

. SCREW, MNTNG RING

5G2-84398-00-00

Unavailable

15

BUSHING 1

5G2-84366-00-00

Unavailable

16

. DAMPER, HEADLIGHT 2

5G2-84367-00-00

Unavailable

17

BUSHING

5G2-84368-00-00

Unavailable

18

SCREW, PAN TAP.2 SLIT

97707-40612-00

Unavailable

19

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

20

SCREW, PAN

98517-05012-00

Unavailable

21

COLLAR, SCREW

5G2-84333-00-00

Unavailable
