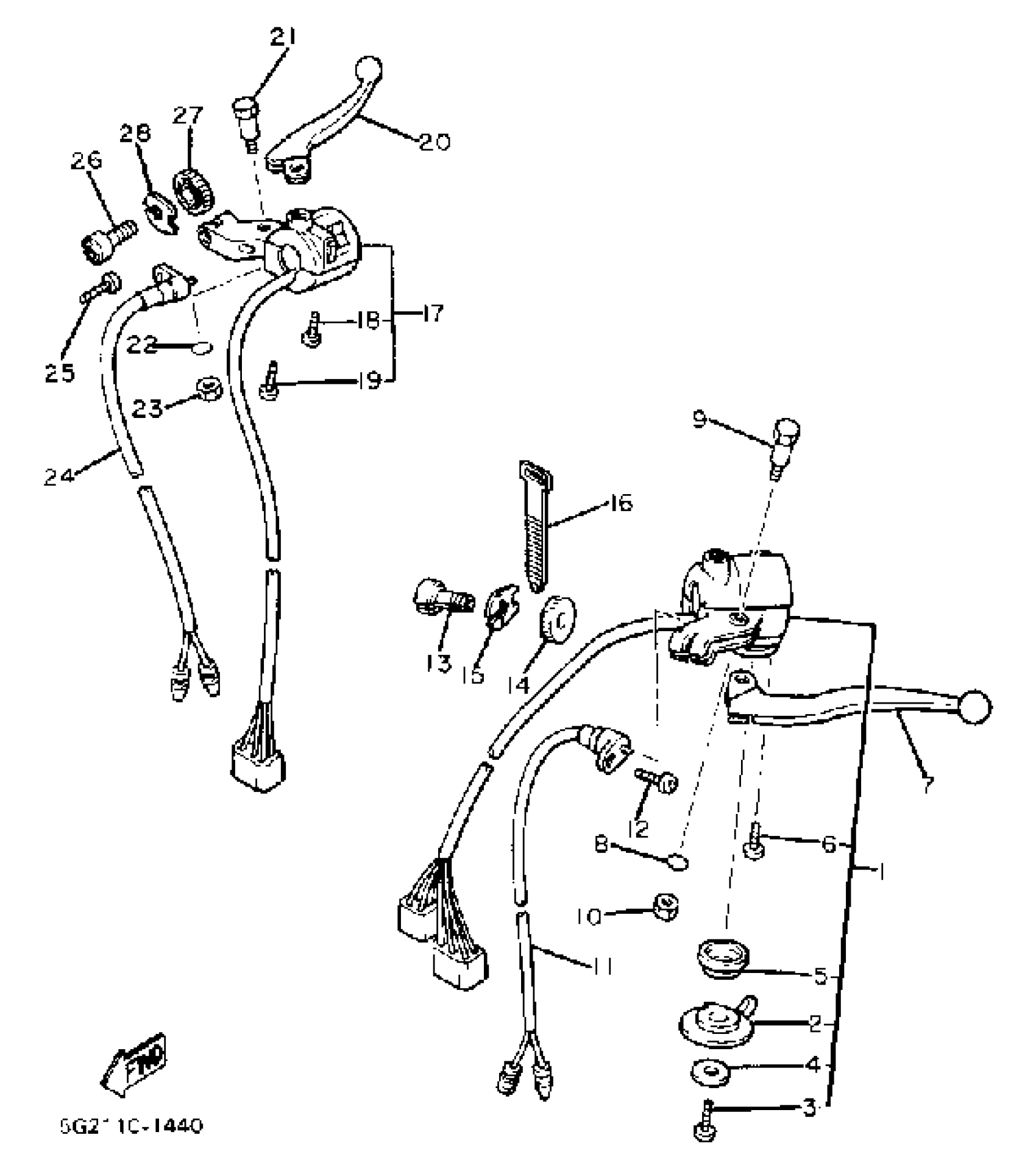

Yamaha XJ750RJ (XJ750R) 1982 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSEMBLY L

5G2-W8281-50-00

Unavailable

2

. LEVER, STARTER

4H7-83941-00-00

Unavailable

3

SCREW, PAN

98517-06008-00

$8.49

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

WASHER (357)

90209-10131-00

$9.49

6

SCREW, PAN

98507-05035-00

$8.49

7

LEVER L

5G2-83912-00-00

Unavailable

8

O-RING (2H7)

93210-11368-00

$5.60

9

BOLT(3GB)

90109-061F3-00

$7.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

SWITCH

5G2-82917-00-00

Unavailable

12

SCREW, BINDING

98907-03008-00

$0.37

13

BOLT, ADJUSTING 1

5G2-26253-00-00

Unavailable

14

STOPPER

5G2-26257-00-00

Unavailable

15

STOPPER

5G2-26257-00-00

Unavailable

16

BAND

341-26397-01-00

Unavailable

17

LEVER HOLDER ASSEMBLY R

(5G2-W8282-40-00)

Unavailable

18

SCREW, PAN

98507-05035-00

$8.49

19

SCREW, PAN HEAD

98580-05550-00

Unavailable

20

LEVER R

5G2-83922-00-00

Unavailable

21

BOLT(1FG)

90109-06798-00

Unavailable

22

O-RING (2H7)

93210-11368-00

$5.60

23

NUT, SELF-LOCKING

95617-06100-00

$8.49

24

STOP SWITCH ASSEMBLY

5G2-83980-00-00

Unavailable

25

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

26

BOLT, ADJUSTING 1

5G2-26253-00-00

Unavailable

27

NUT, ADJUSTING

5G2-26251-00-00

Unavailable

28

STOPPER

5G2-26257-00-00

Unavailable
