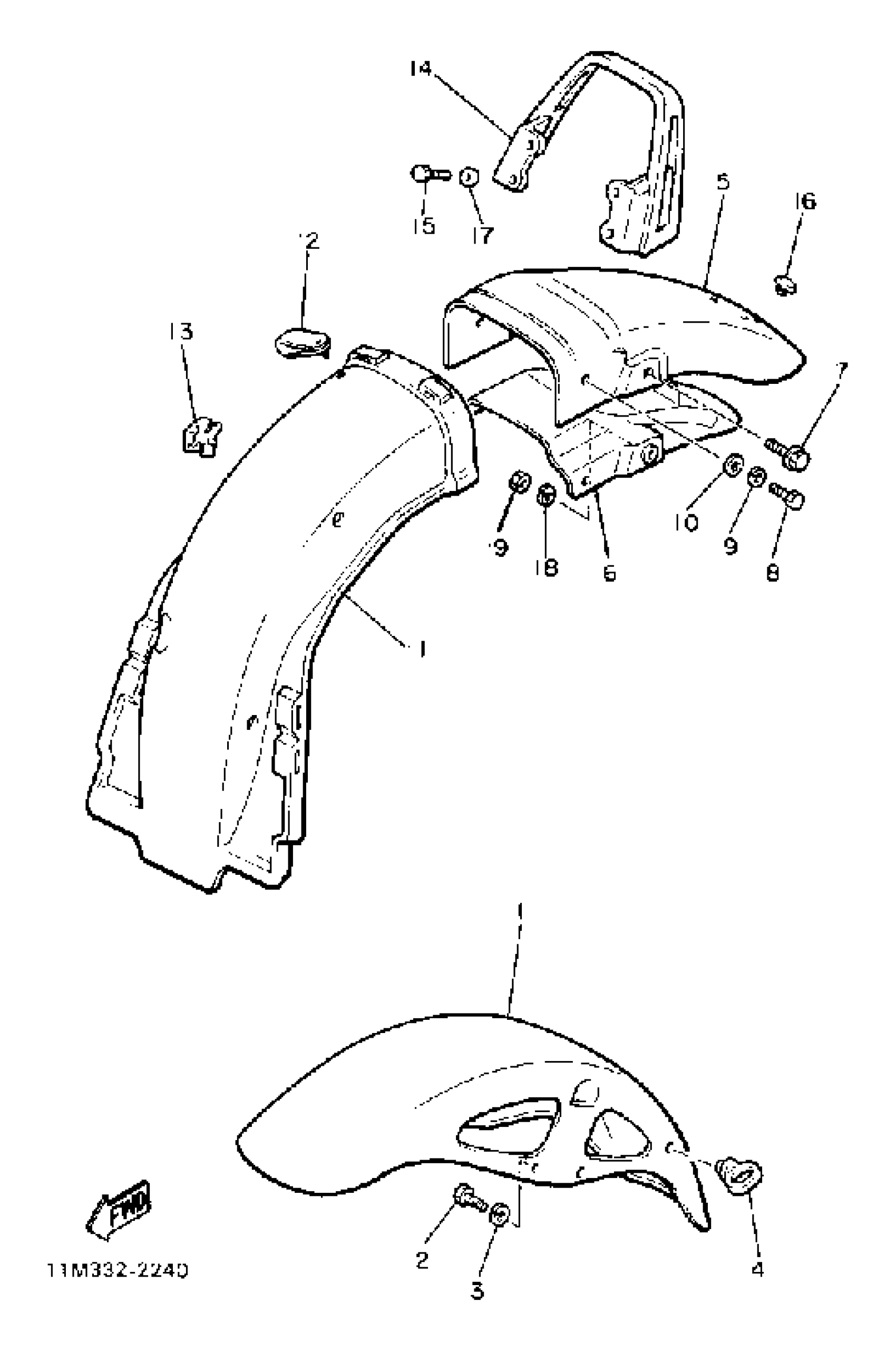

Yamaha XJ750RJ (XJ750R) 1982 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5G2-21510-00-63

Unavailable

1

FENDER, FRONT

5G2-21510-00-6M

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

5G2-21611-00-00

Unavailable

6

REINFORCEMENT

5G2-21670-00-00

Unavailable

7

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

GUARD, MUD

4H7-21629-00-00

Unavailable

12

CLAMP (2H7)

90464-12027-00

Unavailable

13

CLAMP (1J7)

90464-16021-00

$12.49

14

STAY, REAR

5G2-21645-10-00

Unavailable

15

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

16

PLUG

90338-07018-00

Unavailable

17

TRIM, COVER PANEL

1WG-2414H-00-00

Unavailable

18

WASHER(JN5)

92907-08100-00

Unavailable

19

NUT(6TA)

95337-08600-00

Unavailable
