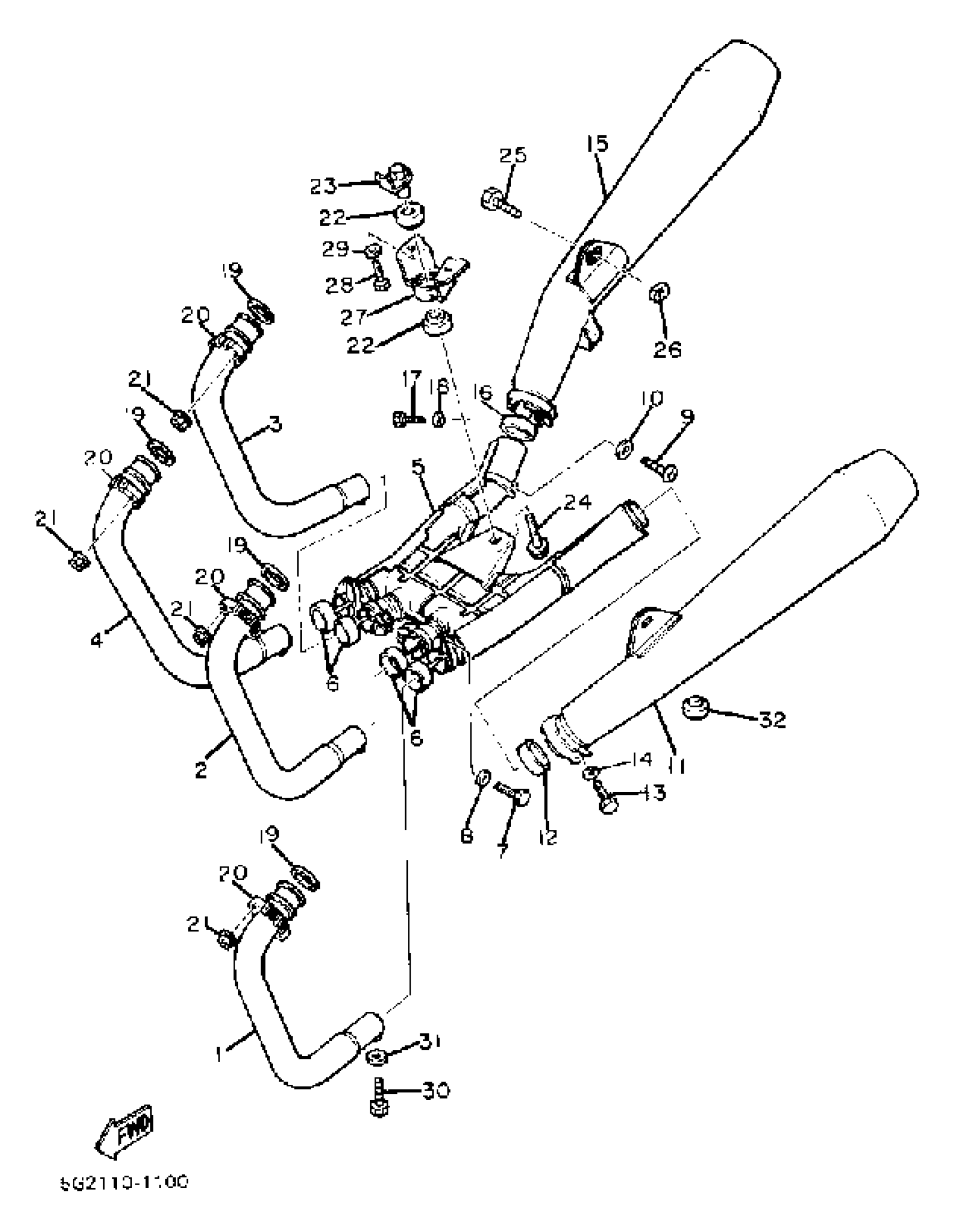

Yamaha XJ750RJ (XJ750R) 1982 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

5G2-14611-00-00

Unavailable

2

PIPE, EXHAUST R

5G2-14621-00-00

Unavailable

3

PIPE, EXHAUST 3

5G2-14631-00-00

Unavailable

4

PIPE, EXHAUST 4

5G2-14641-00-00

Unavailable

5

JOINT, EXHAUST L

5G2-14615-00-00

Unavailable

6

GASKET, MUFFLER

4DN-14714-01-00

$65.99

7

BOLT, HEXAGON

97017-08020-00

$9.49

8

WASHER(6TA)

92907-08600-00

$3.03

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

MUFFLER L

5G2-14711-80-00

Unavailable

12

GASKET, EXHAUST 4

3JJ-14653-00-00

$42.99

13

BOLT (682)

97013-08025-00

$8.49

14

.. WASHER, PLATE

92990-08600-00

Unavailable

15

MUFFLER R

5G2-14721-80-00

Unavailable

16

GASKET, EXHAUST 4

3JJ-14653-00-00

$42.99

17

BOLT (682)

97013-08025-00

$8.49

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

GASKET, EXHAUST PIPE

4BR-14613-00-00

Unavailable

20

NUT, RING

5G2-14612-00-00

Unavailable

21

NUT (1AE)

90179-06500-00

Unavailable

22

DAMPER, MUFFLER

36Y-14747-00-00

Unavailable

23

COLLAR

1AE-14638-00-00

Unavailable

24

BOLT, FLANGE

95814-10040-00

Unavailable

25

BOLT, SOCKET

91317-10030-00

Unavailable

26

NUT, SPEC''L SHAPE

90179-10276-00

Unavailable

27

STAY, MUFFLER

4K0-14791-00-00

Unavailable

28

BOLT (682)

97013-08025-00

$8.49

29

.. WASHER, PLATE

92990-08600-00

Unavailable

30

BOLT (661)

97013-06012-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

$2.80

32

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable
