CRANKSHAFT PISTON

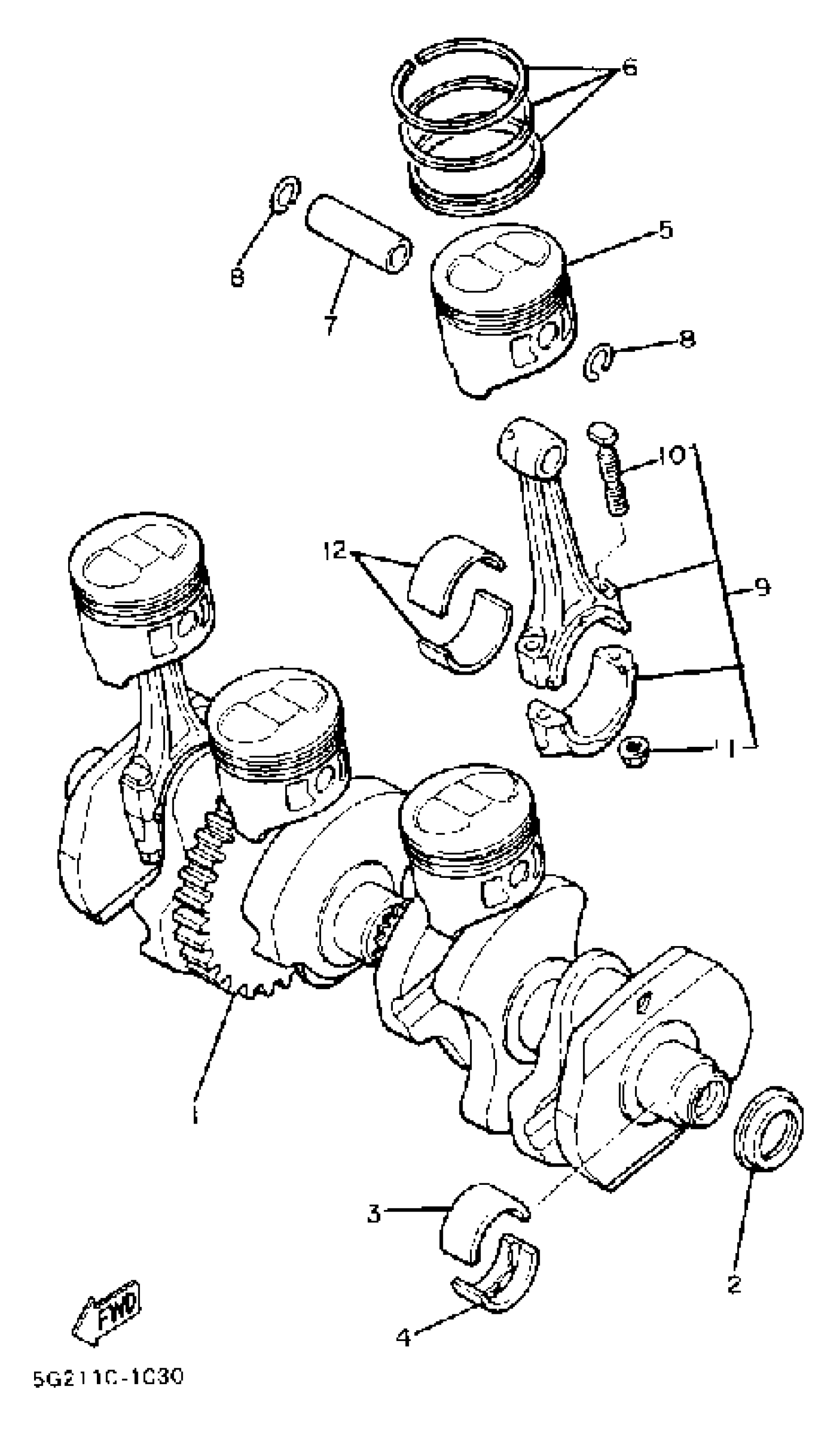

Yamaha XJ750RJ (XJ750R) 1982 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT
5G2-11411-00-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-01-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-11-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-21-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-31-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-41-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-01-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-11-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-21-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-31-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-41-00
Unavailable
5
PISTON STD (STD)
5G2-11631-00-00
Unavailable
5
PISTON 1 O/S 0.25
5G2-11635-00-00
Unavailable
5
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
5G2-11636-00-00
Unavailable
5
PISTON 3 O/S 0.75
(5G2-11637-00-00)
Unavailable
5
PISTON 4 O/S 1.00 (4TH O/S 1.00MM)
5G2-11638-00-00
Unavailable
6
PISTON RINGSET STD (STD)
5G2-11610-00-00
Unavailable
6
PISTON RINGSET 1ST
5G2-11610-10-00
Unavailable
6
PISTON RINGSET 2ND (2ND O/S)
5G2-11610-20-00
Unavailable
6
PISTON RINGSET 3RD
5G2-11610-30-00
Unavailable
6
PISTON RINGSET 4TH (4TH O/S)
5G2-11610-40-00
Unavailable
7
PIN, PISTON
4H7-11633-00-00
Unavailable
8
CIRCLIP (1L9)
93450-17044-00
Unavailable
9
CONNECTING ROD ASSEMBLY
5G2-11650-00-00
Unavailable
10
BOLT, CONNECTING ROD
4H7-11654-00-00
Unavailable
11
NUT (4H7)
90179-07307-00
Unavailable
12
PLANE BRNG, CON RODCONNECTING ROD
5G2-11656-00-00
Unavailable
12
PLANE BRNG,CON ROD
5G2-11656-10-00
Unavailable
12
PLANE BRNG, CON RODCONNECTING ROD
5G2-11656-20-00
Unavailable
12
PLANE BRNG, CON RODCONNECTING ROD
5G2-11656-30-00
Unavailable
