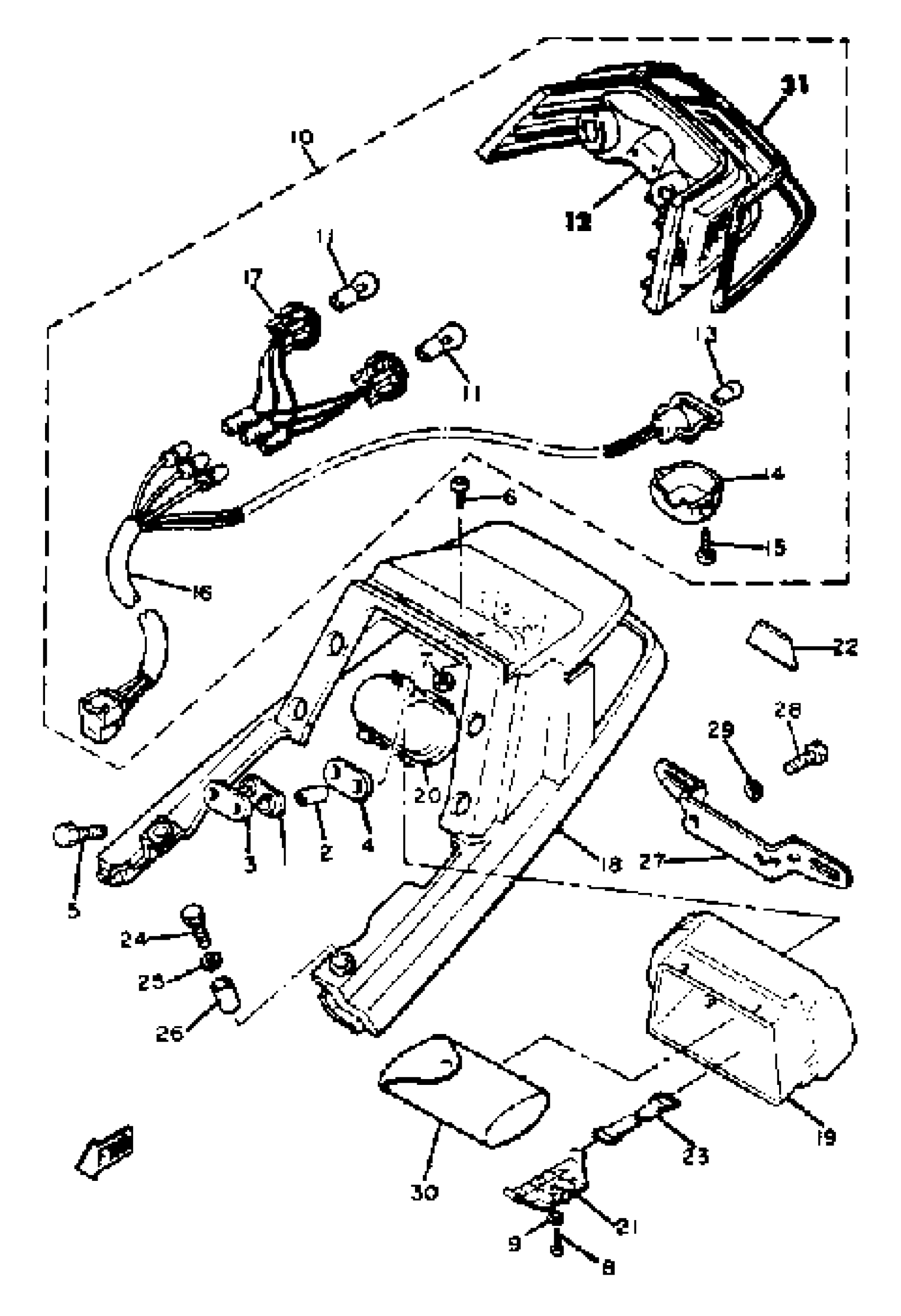

Yamaha XJ750RH (XJ750R) 1981 TAILLIGHT TAIL COVER TOOL Diagram

#

Description
Price

1

DAMPER, tail 1

5G2-84736-00-00

Unavailable

2

COLLAR

5G2-84557-00-00

Unavailable

3

WASHER, SPECIAL

5G2-84725-00-00

Unavailable

4

SPACER

5G2-84729-00-00

Unavailable

5

BOLT, HEXAGON

97017-06030-00

$3.61

6

SCREW, BINDING

98907-05012-00

$8.49

7

NUT, FLANGE(3GM)

95707-05500-00

$8.49

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

10

TAILLIGHT UNIT ASSEMBLY

(5G2-84710-60-00)

Unavailable

11

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

12

. LENS ASSEMBLY

5G2-84540-60-00

Unavailable

13

BULB (12V 38W)

4H7-84744-00-00

Unavailable

14

. LENS, LICENSE LITE

5G2-84743-60-00

Unavailable

15

SCREW, TAPPING

97780-40116-00

Unavailable

16

CORD ASSEMBLY

(5G2-84735-00-00)

Unavailable

17

SOCKET CORD ASSEMBLY

(5G2-84732-00-00)

Unavailable

18

COVER, TAILLIGHT

(5G2-84716-00-63)

Unavailable

18

COVER, TAILLIGHT

5G2-84716-00-6G

Unavailable

19

BOX

5G2-2160E-00-00

Unavailable

20

LID

(5G2-2160F-00-00)

Unavailable

21

HOOK

(5G2-2162A-00-00)

Unavailable

22

EMBLEM 7

5G2-21787-00-00

Unavailable

23

BAND, BATTERY

26L-82131-00-00

Unavailable

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

27

BRACKET, LICENSE

5G2-84751-00-98

Unavailable

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

TOOL KIT (5G2-28100-10)

5G2-28100-00-00

Unavailable

31

GASKET, TAILLIGHT

5G2-84704-00-00

Unavailable
