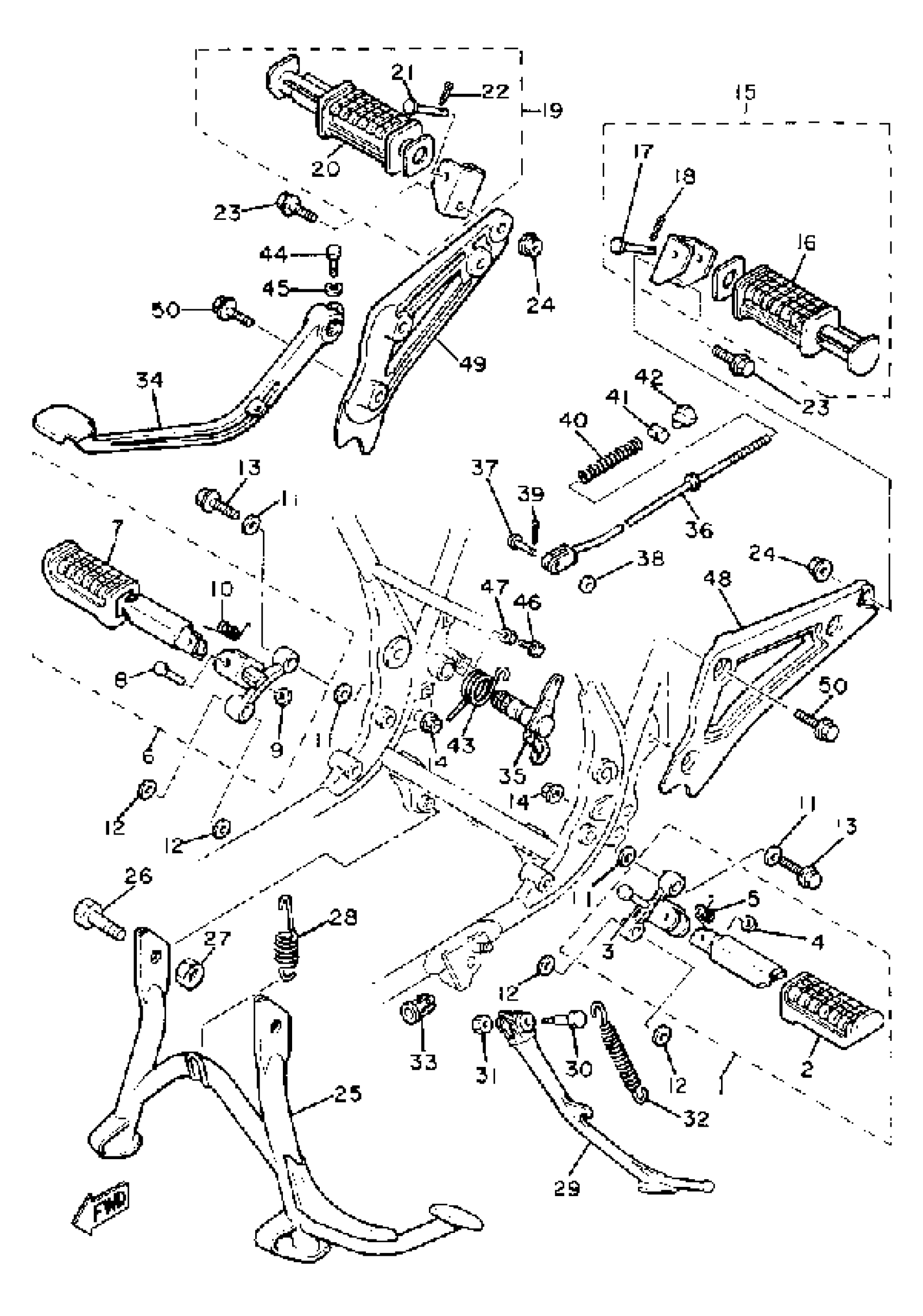

Yamaha XJ750RH (XJ750R) 1981 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

5G2-27410-00-R4

Unavailable

2

. COVER, FOOTREST

5G2-27413-00-00

Unavailable

3

PIN (214-27418-00)

90243-08006-00

$12.49

4

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

5

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

6

FRT FOOTREST ASSEMBLY R

5G2-27420-00-R4

Unavailable

7

. COVER, FOOTREST

5G2-27413-00-00

Unavailable

8

PIN (214-27418-00)

90243-08006-00

$12.49

9

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

10

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

11

WASHER, PLATE(6TC)

90201-10M05-00

$5.60

12

WASHER, PLATE

90201-12027-00

$8.49

13

BOLT, FLANGE

95814-10040-00

$4.72

14

NUT, FLANGE(3BM)

95704-10500-00

$4.29

15

RR FOOTREST ASSEMBLY 1

5G2-27430-00-00

Unavailable

16

. COVER, RR FOOTREST

5G2-27433-00-00

Unavailable

17

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

18

PIN, COTTER

91490-16020-00

Unavailable

19

RR FOOTREST ASSEMBLY 2

5G2-27440-00-00

Unavailable

20

. COVER, RR FOOTREST

5G2-27433-00-00

Unavailable

21

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

22

PIN, COTTER

91490-16020-00

Unavailable

23

BOLT, FLANGE

95817-10035-00

Unavailable

24

NUT(4KG)

90179-10658-00

Unavailable

25

STAND, MAIN

11M-27111-00-R4

Unavailable

26

BOLT

90109-10606-00

Unavailable

27

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

28

SPRING, tension

90506-40256-00

Unavailable

29

STAND, SIDE

5G2-27311-00-R4

Unavailable

30

BOLT

90109-10473-00

Unavailable

31

NUT (682)

95380-10700-00

Unavailable

32

SPRING (460)

90507-29009-00

Unavailable

33

GUIDE, SIDE STAND

5G2-27351-00-00

Unavailable

34

PEDAL, BRAKE

5G2-27211-00-00

Unavailable

35

SHAFT, BRAKE PEDAL

5G2-27212-00-00

Unavailable

36

ROD, BRAKE

5G2-27231-00-00

Unavailable

37

PIN (3H0)

90240-08067-00

Unavailable

38

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

SPRING, (180-27236-00)

90501-10245-00

Unavailable

41

PIN 1562723700

90249-12008-00

Unavailable

42

NUT (25K)

90179-06411-00

Unavailable

43

SPRING, TENSION(1FN)

90506-20380-00

Unavailable

44

BOLT (1J7)

90109-06468-00

Unavailable

45

WASHER, SPRING

92995-06100-00

Unavailable

46

SCREW 341272170000

90153-06008-00

Unavailable

47

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

48

BRACKET 2

5G2-27442-00-00

Unavailable

49

BRACKET 3

5G2-27443-00-00

Unavailable

50

BOLT, SOCKET

91317-10030-00

Unavailable
